MTD007730

Parts list

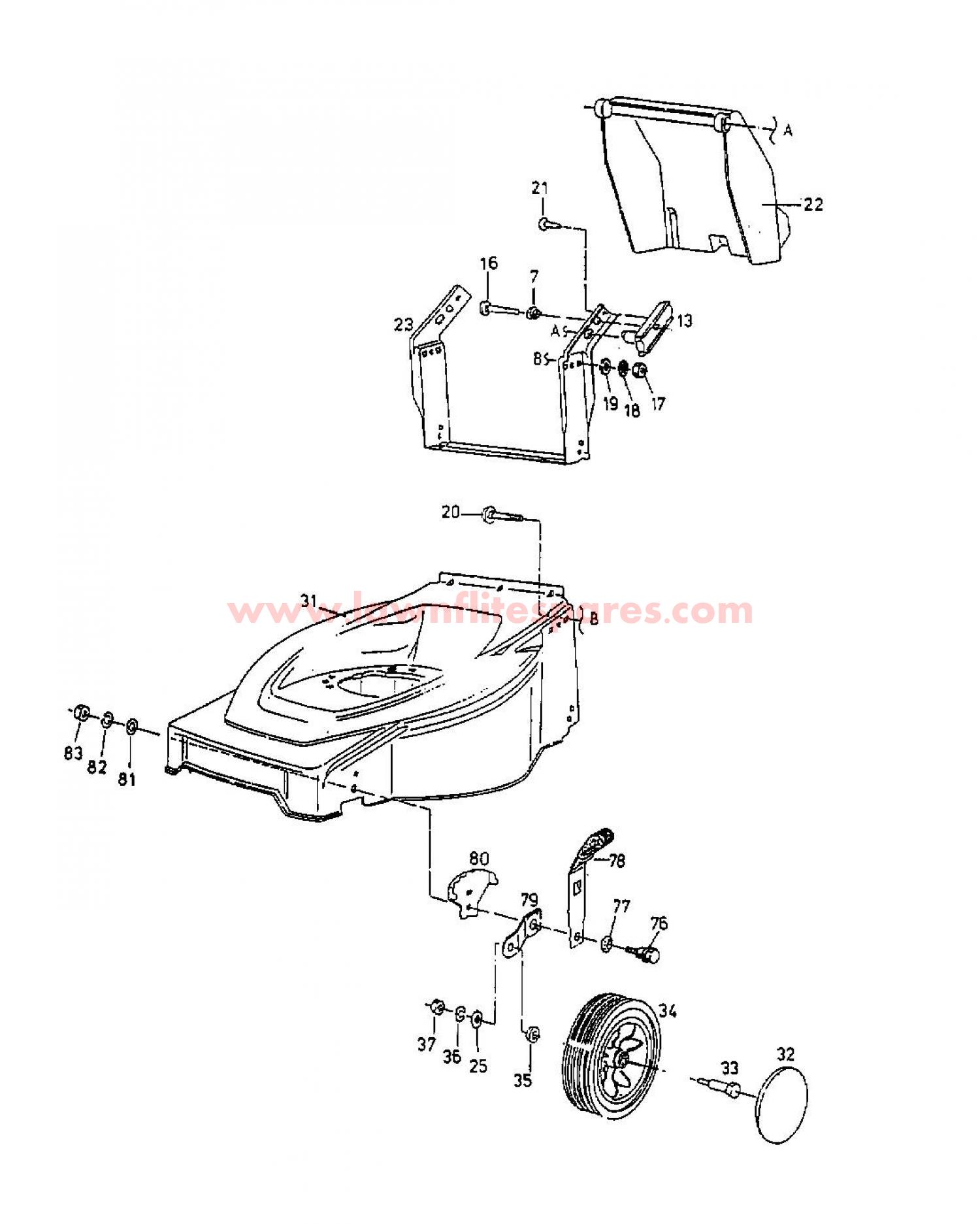

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
007079.06.272INSULATED WASHER£4.59 Add to
016710-1719BOLT£4.89 Add to
017712-0690NUT:HEX:M8-1.25 DIN 934£2.72 Add to
018736-0708Lockwasher 24.8190.18£2.72 Add to
019736-0700FLAT WASHER£2.63 Add to
022731-1813A637REAR FLAP 079.26.540£44.39 Add to
023782-3075A638NO LONGER AVAILABLEN/A POA
025736-0700FLAT WASHER£2.63 Add to
031782-0333638NO LONGER AVAILABLEN/A POA
032720-0334662HUB CAP WITH MTD LOGO, PREMIUM£4.65 Add to
033738-1057SCR SHLDR£12.24 Add to
034734-1879637WHEEL DIA 180mm, BALL BEARING£27.42 Add to
035736-0701WASH:FLAT:8.4x24x2.00 DIN 9021£3.80 Add to
03604512-50080NO LONGER AVAILABLEN/A POA
037712-0690NUT:HEX:M8-1.25 DIN 934£2.72 Add to
076738-1030AScrew 079.29.178£9.23 Add to
077736-0651NO LONGER AVAILABLEN/A POA
078682-0271ALVR ASM:HGT:L0-WHL 079.29.735£10.83 Add to
079782-0617APIVOT ARM£15.40 Add to
080782-0659ADJUSTING PLATE 079.30.313£18.97 Add to
081736-0701WASH:FLAT:8.4x24x2.00 DIN 9021£3.80 Add to
082736-0708Lockwasher 24.8190.18£2.72 Add to
083712-0690NUT:HEX:M8-1.25 DIN 934£2.72 Add to
