MTD007729

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

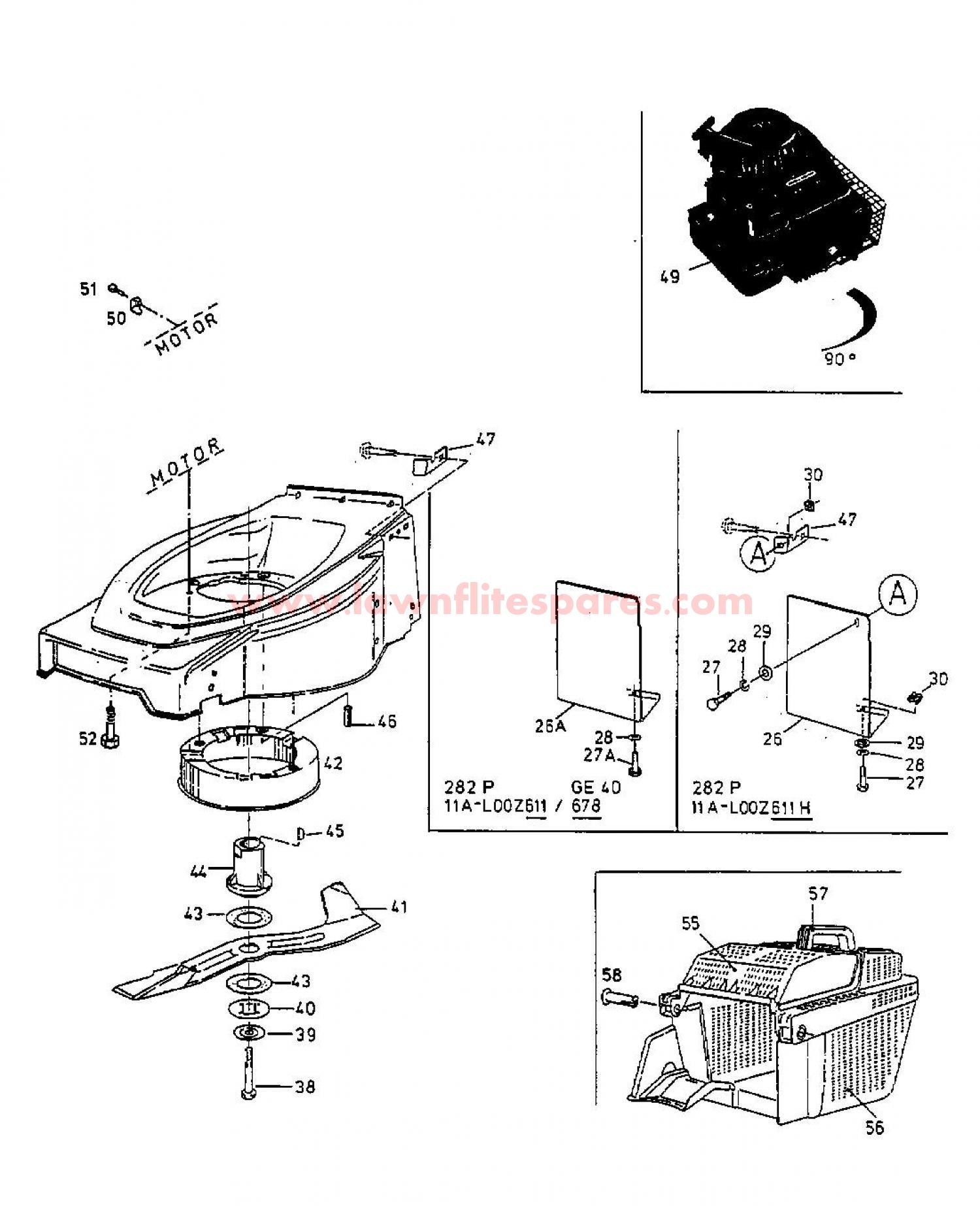

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
026	079.26.548	PROTECTION PLATE (RED)	£28.02	Add to
027	710-1705	HEX. SCREW:M5X16:DIN 933 8.8	£4.00	Add to
028	736-0768	WASHER:LOCK:B5 DIN 127:	£3.05	Add to
029	736-0661	WASHER A 5,3 DIN 9021	£3.85	Add to
030	000.06.186	CAGE NUT M5	£7.82	Add to
038	000.02.282	BLADE SCREW	£8.32	Add to
039	CP045911	WASHER (OBSOLETE) (OBSOLETE)	N/A
040	782-7051	LOCK PLATE	£7.01	Add to
041	742-0805	BLADE	£31.49	Add to
042	731-2075	NO LONGER AVAILABLE	N/A	POA
043	736-0752	WASHER	£8.80	Add to
044	079.77.230	BLADE BOSS	£40.15	Add to
045	25.5239.09	DISC SPRING	£4.36	Add to
046	000.05.029	RIVET	£4.89	Add to
047	079.27.006	BRACKET (RED)	£9.07	Add to
049	090.64.997	MOTOR B&S 'CLASSIC'	£862.70	Add to
050	731-2219	Clamp 079.11.346	£12.02	Add to
051	710-1237	SCREW SELF TAP	£3.00	Add to
052	710-0654A	SCR:TTSEMS:3/8-16:1.000:HXLWSH	£5.10	Add to
055	731-1815637	GRASS CATCHER HALF-ABOVE	£40.98	Add to
056	731-1814637	GRASS BOX LOWER	£61.94	Add to
057	731-1816637	GRIP	£10.03	Add to
058	731-04659	NO LONGER AVAILABLE	N/A	POA
090	731-1820	CBL:GDE	£3.20	Add to
26A	782-3076638	NO LONGER AVAILABLE	N/A	POA
27A	710-1355	SCR:TT:M5-.8:10.00:HXFLG	£2.98	Add to
