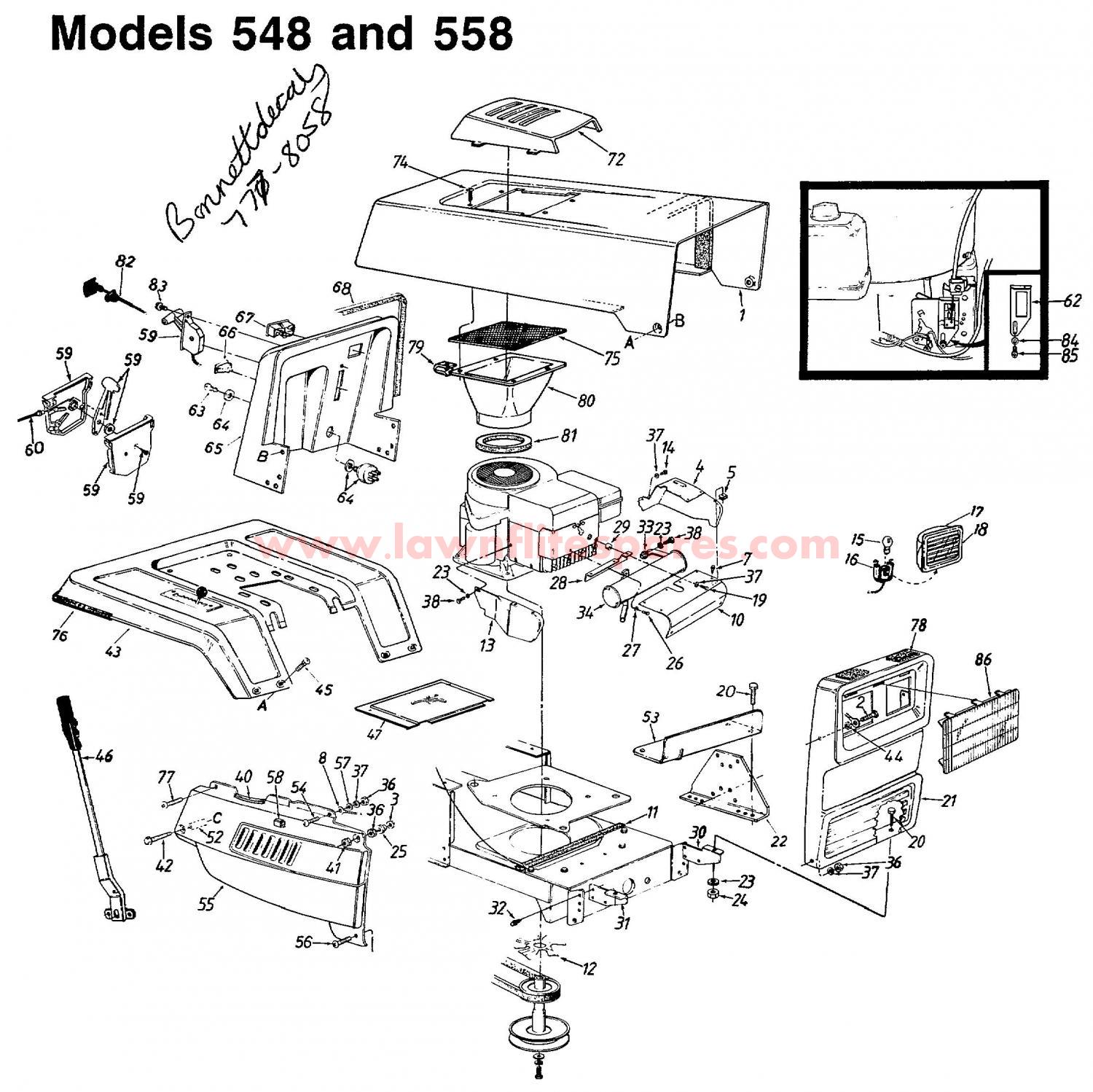

MODELS 548 AND 558 LAWN TRACTORS

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
	732-0462	HOOD SPRING	£5.91	Add to
001	16780-629	HOOD 16780	£215.09	Add to
002	710-0206	NO LONGER AVAILABLE	N/A	POA
003	736-0413	NO LONGER AVAILABLE	N/A	POA
004	16801A	MUFFLER HEAT SHIELD--L.H. 16801	£33.56	Add to
005	712-0147	NO LONGER AVAILABLE	N/A	POA
007	710-0224	NO LONGER AVAILABLE	N/A	POA
008	727-0290A	CABLE ASSY-BRAKE	£13.30	Add to
010	16812	MUFFLER HEAT SHIELD--FRONT	£23.17	Add to
011	722-0247	FOAM STRIP	£5.16	Add to
012	17199	NO LONGER AVAILABLE	N/A	POA
013	16811	MUFFLER HEAT SHIELD--R.H.	£19.14	Add to
014	710-0599	HEX TT SCREW 1/4-20	£4.95	Add to
015	725-0963	BULB	£7.18	Add to
016	725-1650	SOCKET LAMP TWIST LOCK (OBSOLETE)	N/A
017	731-0705	HSG:HDLT	£27.93	Add to
018	731-0706	LENS-HEADLAMP-SQ	£12.42	Add to
019	710-0252	NO LONGER AVAILABLE	N/A	POA
020	710-3008	HEX BOLT	£3.03	Add to
021	15806B	GRILLE	£100.64	Add to
021	16456B	GRILLE--USED W/HEADLIGHT BEZEL	£102.07	Add to
021	722-0175	GRILLE FOAM (NOT SHOWN)	£63.66	Add to
022	17300A	DASH SUPPORT BRACKET 17300	£30.26	Add to
023	736-0119	LOCK WASHER 5/16	£3.33	Add to
024	712-3010	NUT 5/16 x 18	£2.77	Add to
025	738-0759	NO LONGER AVAILABLE	N/A	POA
026	710-0289	HHCS:1/4-20:.50:GR2:STD	£20.02	Add to
027	736-0270	BELL WASHER	£3.91	Add to
028	16813	HEAT SHIELD BRACKET	£8.62	Add to
029	750-0709	SPACER	£3.59	Add to
030	15821	GRILL MOUNTING BRACKET L.H(DN (RED)	£8.87	Add to
031	15822001	GRILLE MOUNT BRKT.--R.H. 15822	N/A	POA
032	710-0726	HEX SCREW AB 5/16-12:0.750	£3.19	Add to
033	721-0208	EXHAUST GSKT 10 & 11 HP	£5.80	Add to
034	751-0464A	NO LONGER AVAILABLE	N/A	POA
036	712-0287	NUT HEX	£3.31	Add to
037	736-0329	L. WASHER	£3.26	Add to
038	710-0323	SCREW	£3.70	Add to
039	725-0977	ELEC. WIRE 8 GA. X 9.0" LG.	£14.35	Add to
040	731-051181	EDGE GUARD 731-0511	£32.27	Add to
041	712-0264	NUT:ACORN:1/20-20:w/o LOCK	£4.58	Add to
042	710-1026	SCREW	£3.91	Add to
043	17228	REAR FENDER (558)	£206.84	Add to
043	16198A	REAR FENDER (R.H.) (548)	£90.91	Add to
043	15350	FENDER	£94.09	Add to
044	736-0222	NO LONGER AVAILABLE	N/A	POA
045	710-0167	SCR:CRG:1/4-20:.50:	£2.97	Add to
046	17194	LIFT HANDLE	£16.52	Add to
047	17286B	COVER-HARD TOP (OBSOLETE)	£56.26	Add to
052	750-0583	SPACER 1.30" LG.	£11.43	Add to
053	14605	FUEL TANK SUPPORT	£17.09	Add to
054	710-0924	TRUSS SCREW (OBSOLETE) (OBSOLETE) (OBSOLETE)	N/A
055	16725-0638	SIDE COVER--R.H. 17308	£107.69	Add to
055	722-0178	SIDE COVER FOAM--R.H. (NOT SHOWN)	£58.83	Add to
055	17309B	SIDE COVER--L.H. (NOT SHOWN) 17309	£67.71	Add to
055	722-0179	SIDE COVER FOAM--L.H. (NOT SHOWN)	£90.77	Add to
056	710-0286	SCREW	£3.31	Add to
057	736-0173	WASH:FL:.28ID:.74OD:.063	£3.31	Add to
058	726-0152	MOUNTING CLAMP	£8.54	Add to
059	931-0823A	THROTTLE CONTROL BOX ASSY	£25.49	Add to
060	746-0500	THROTTLE CONTROL WIRE	£26.72	Add to
062	16778	THROTTLE LIMITER (OBSOLETE) (OBSOLETE)	£6.44	Add to
063	725-0201	IGNITION KEY	£6.47	Add to
064	725-0267B	IGNITION SWITCH	£25.04	Add to
065	17295	DASH PANEL	£124.59	Add to
066	725-0634	SW:ROCKER	£19.29	Add to
067	725-0925	AMMETER 620	£30.37	Add to
068	731-051181	EDGE GUARD 731-0511	£32.27	Add to
072	731-1012	AIR SCOOP (OBSOLETE) (OBSOLETE)	N/A
074	710-1388	SCREW	£3.23	Add to
075	723-0415	SCREEN	£27.04	Add to
076	731-051181	EDGE GUARD 731-0511	£32.27	Add to
077	710-0642	SCREW-HEX HD TAP 4-20 x 7.5	£3.68	Add to
078	722-0157	STRIP-FOAM	£2.56	Add to
079	726-0139	SPEED NUT 10Z U-TYPE	£3.39	Add to
080	731-1013	AIR DUCT	£146.35	Add to
081	722-0163	FOAM	£14.15	Add to
082	746-3021	CHOKE CONTROL	£37.35	Add to
083	710-0779A	SELF TAP SCREW	£3.58	Add to
084	736-0400	FLAT WASHER .194x.620Dx.63TH	£3.77	Add to
085	710-0899A	SCR:#10-32:.62:HXSEMS:GR5.1	£3.20	Add to
086	731-0967	HEADLIGHT BEZEL	£48.60	Add to
