LAWN TRACTORS - 13-605

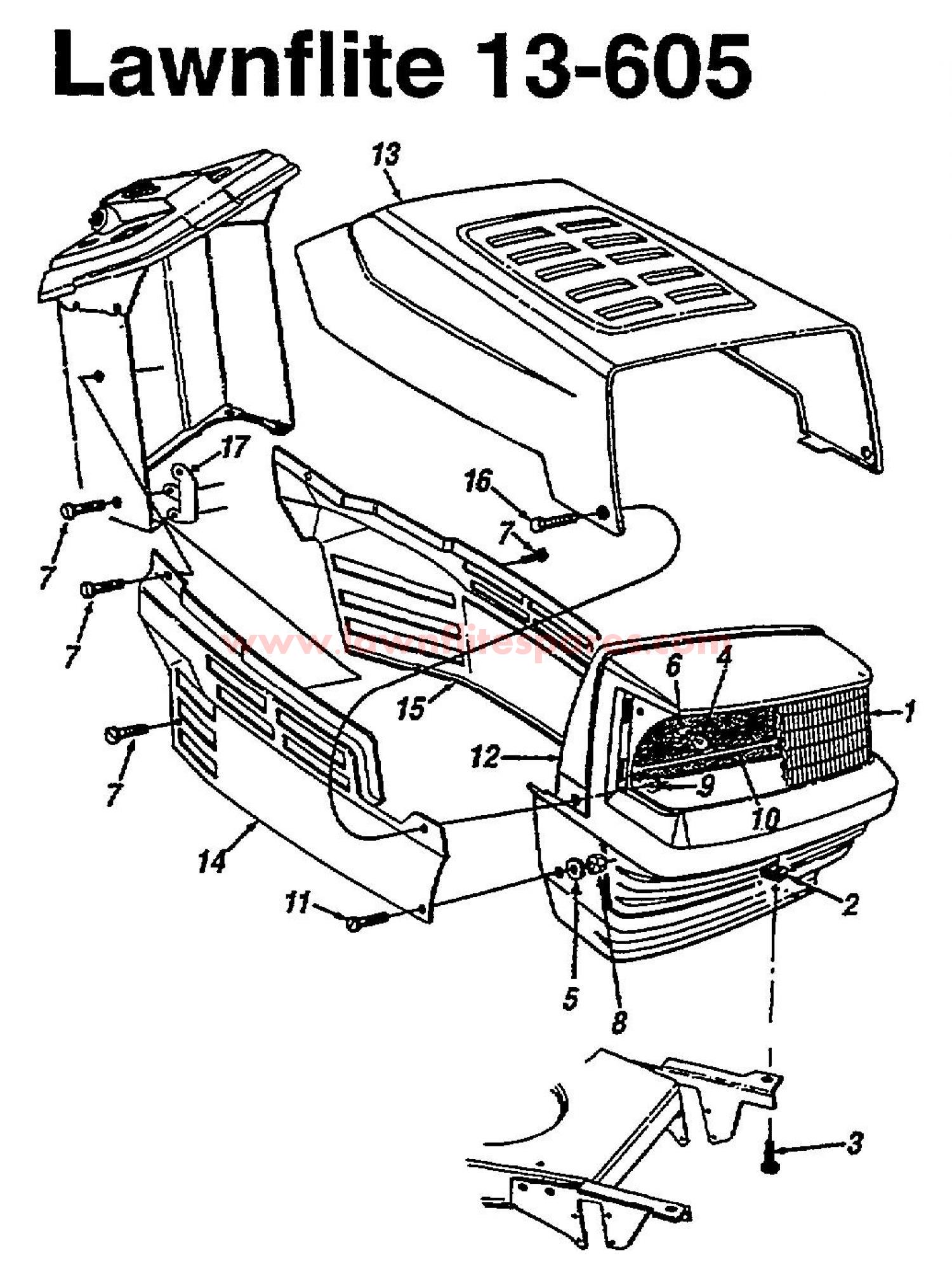

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	731-1767	HEADLIGHT LENS WITH LOGO	£78.15	Add to
002	726-0211	U NUT	£3.96	Add to
003	710-3008	HEX BOLT	£3.03	Add to
004	725-0963	BULB	£7.18	Add to
005	736-0270	BELL WASHER	£3.91	Add to
006	725-1651	LAMP SOCKET, LONG	£24.91	Add to
007	710-0599	HEX TT SCREW 1/4-20	£4.95	Add to
008	712-3006	NUT	£2.77	Add to
009	712-3027	LOCK NUT	£2.79	Add to
010	777-9206	LBL:GRILL:"0" STYLE	£23.21	Add to
011	710-0924	TRUSS SCREW (OBSOLETE) (OBSOLETE) (OBSOLETE)	N/A
012	631-04200	GRILL ASM:0 STY:w/o ICON LT-5	£259.30	Add to
013	783-0250-0638	HOOD:STY'0'W/LOUVERS-FORME 783-0250	£177.22	Add to
014	783-0150A	PANEL, SIDE 7CU FT 783-0150	£108.34	Add to
015	783-0151	END PLATE	£103.27	Add to
016	738-0952A	SHOULD. SCREW .375x.125:1/4-20	£3.70	Add to
017	783-0284	BRKT:MT: 5 STY SIDE PANEL	£15.75	Add to
