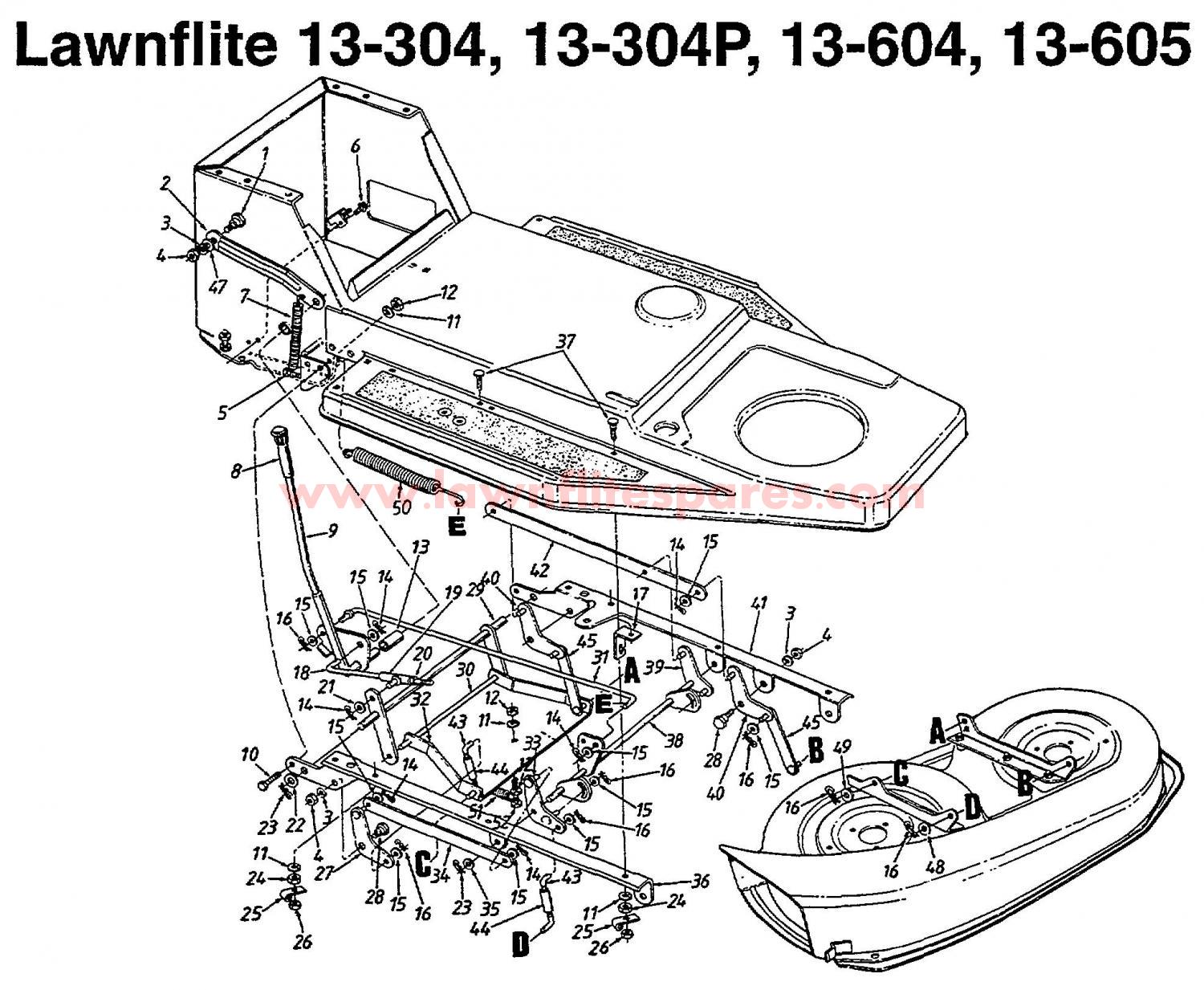

LAWN TRACTORS - 13-304, 13-304P, 13-604 AND 13-605

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	738-0143	SHOULDER BOLT	£12.24	Add to
002	17580637	STRAP:LIFT HANDLE SUPPORT 17580	£16.58	Add to
003	736-0169	L. WASHER	£2.89	Add to
004	712-0798	HEX. NUT	£7.61	Add to
005	710-0428	NO LONGER AVAILABLE	N/A	POA
006	710-1388	SCREW	£3.23	Add to
007	732-0640	EXTENSION SPRING	£4.92	Add to
008	731-2509	GRIP (OBSOLETE) (OBSOLETE)	N/A
009	683-0584-Z	LEVER	£35.35	Add to
010	710-0604A	SCREW	£3.62	Add to
011	736-0119	LOCK WASHER 5/16	£3.33	Add to
012	712-3010	NUT 5/16 x 18	£2.77	Add to
013	750-0379	SPACER .657 ID X .87 OD X .85	£5.33	Add to
014	714-0507	COTTER PIN 3/32 DIA	£3.13	Add to
015	736-0185	FLAT WASHER (RED)	£3.59	Add to
016	714-0104	PIN INTERNAL COTTER	£2.78	Add to
017	17597637	NO LONGER AVAILABLE	N/A	POA
018	747-0746	ROD:DECK ENGAGE	£10.42	Add to
019	16682P637	SLEEVE ASSY-PIVOT 16682	£25.42	Add to
020	712-04065	NUT	£4.02	Add to
021	736-0314	WASHER-THRUST	£2.97	Add to
022	736-0116	WASH:FLAT:.635 x.93 x.06	£3.70	Add to
023	714-0470	COTTER PIN	£5.07	Add to
024	712-3057	NUT 5/16-24	£3.00	Add to
025	726-0272	CLAMP	£2.98	Add to
026	712-0237	HEX CENTRE NUT	£11.18	Add to
027	17555637	BRKT ASM:PIVOT:DECK LIFT RH RR 17555	£35.00	Add to
028	738-0281	SCR:SHLDR:.625 x.17:3/8-16	£8.44	Add to
029	17574637	SHAFT 17574	£65.10	Add to
030	738-0667	NO LONGER AVAILABLE	N/A	POA
031	747-0745	ROD:DECK LIFT	£19.38	Add to
032	17573A637	NO LONGER AVAILABLE	N/A	POA
033	17554	ASM:DK LFT PVT BRKT R.FR-P	£370.89	Add to
034	17563	CONNECTING LINK RH	£53.52	Add to
035	736-0773	WASH:FLAT:16x22x1 DIN 988	£2.93	Add to
036	17582637	BRKT:SUPPORT PIVOT R.H 17582	£46.42	Add to
037	710-1012	BOLT:RIBBED:HD 5/16-24 x.87"LG	£3.39	Add to
038	17568	SHAFT:ASM CROSS	£470.07	Add to
039	17557637	BRKT ASM:PIVOT:DECK LIFT SHORT 17557	£21.63	Add to
040	17556637	BRKT ASM:PIVOT:DECK LIFT LH 17556	£25.66	Add to
041	17581-0637	NO LONGER AVAILABLE	N/A	POA
042	17562637	CONNECTING LINK LH 17562	£12.45	Add to
043	747-0584	LIFT LINK	£12.45	Add to
044	97709	LINK ASSY ADJUSTER LIFT	£34.46	Add to
045	17598-Z	LINK ASSY ZINC-PLATED (OBSOLETE) (OBSOLETE)	N/A
047	736-0192	WASH:FL:.535 X .93 X .090	£3.59	Add to
048	736-0185	FLAT WASHER (RED)	£3.59	Add to
049	736-0101	WASH:FLAT:.406 X 1.00 X .030	£12.63	Add to
050	732-0638	EXTENSION SPRING	£15.71	Add to
051	732-0603	EXTENSION SPRING	£25.20	Add to
052	710-3038	BOLT	£9.82	Add to
