LAWN TRACTORS - 13-304, 13-304P, 13-604 AND 13-605

Parts list

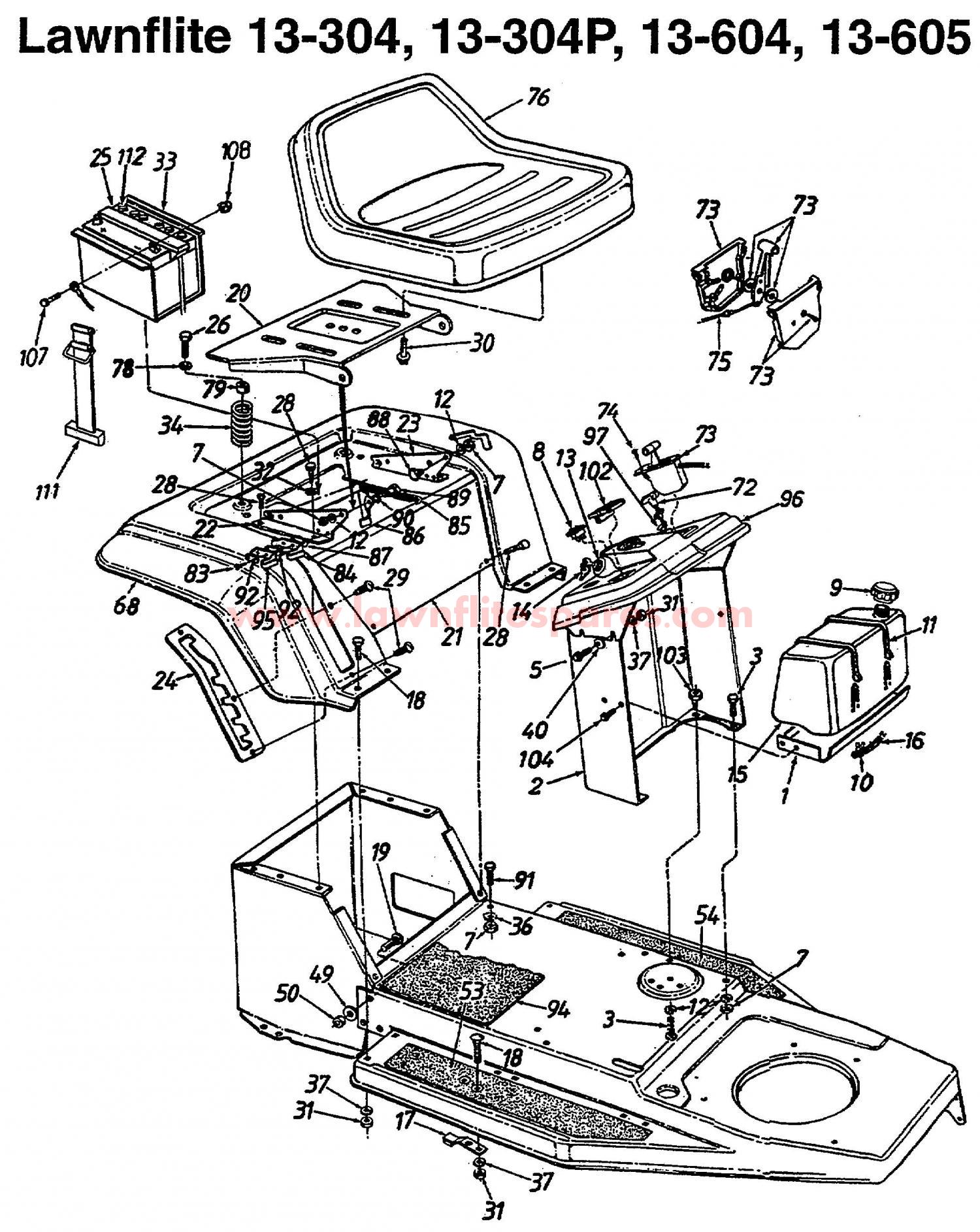

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
	EPB3117	BATTERY 12N14-3A (DRY)	£52.41	Add to
	731-0871B	BATTERY BOX W/COVER	£59.87	Add to
	757-04107	SEAT	£187.38	Add to
	731-1502	Instrument panel (OBSOLETE) (OBSOLETE)	N/A
	725-0689	NO LONGER AVAILABLE	N/A	POA
001	17932	BRKT:SUPT:GAS TANK STYLE 1	£18.87	Add to
002	17933A637	PANEL-DASH 17933A	£126.60	Add to
003	710-3008	HEX BOLT	£3.03	Add to
005	710-0751	BOLT 069	£3.39	Add to
007	712-3010	NUT 5/16 x 18	£2.77	Add to
008	725-0634	SW:ROCKER	£19.29	Add to
009	751-0603A	CAP:FUEL	£9.01	Add to
010	726-0205	HOSE CLAMP 1/2 INCH DIA.	£3.44	Add to
011	726-0209	NO LONGER AVAILABLE	N/A	POA
012	736-0119	LOCK WASHER 5/16	£3.33	Add to
013	725-0267B	IGNITION SWITCH	£25.04	Add to
014	725-0201	IGNITION KEY	£6.47	Add to
015	751-0553	FUEL TANK	£80.00	Add to
016	751-10349-54	FUEL LINE HOSE BLACK	£25.38	Add to
017	761-0194A	BLADE BRAKE ASSY	£19.28	Add to
018	710-0134	BOLT	£3.03	Add to
019	710-0793	SCREW-RIBBED NECK	N/A	POA
020	783-0039	SEAT PIVOT BRACKET	£52.07	Add to
021	783-0354	FENDER:HARDTOP ´96,400	N/A	POA
022	17704	BRKT:SEAT:HINGE:SUPPORT R.H.	£24.50	Add to
023	17703A	BRKT:SEAT:HGE:SUPT LH	£16.96	Add to
024	17553	BRKT:INDX:LIFT:DK:6POS-PAI	£17.69	Add to
025	5032-u3-0002	BATTERY MF896 (No Returns on this item)	£93.24	Add to
026	710-0817	SCR:TT:5/16-18:1.250:HXINDWSH	£4.52	Add to
028	710-0726	HEX SCREW AB 5/16-12:0.750	£3.19	Add to
029	710-1017	TAP SCREW	£2.97	Add to
030	710-0870	HHWSH:3/8-16:.625:GR5:STD	£13.79	Add to
031	712-0287	NUT HEX	£3.31	Add to
032	736-0607	WASH:LOCK:5/16 EXT TOOTH	£3.31	Add to
033	783-0349637	BATTERY TRAY	£34.84	Add to
034	732-0588	SPRG:COMP 1.35 OD X 3,6	£13.94	Add to
036	736-0242	BELL WASHER	£3.72	Add to
037	736-0329	L. WASHER	£3.26	Add to
040	736-0270	BELL WASHER	£3.91	Add to
049	736-0217	H.L. WASHER (RED)	£4.89	Add to
050	712-0241	HEX NUT 3/8-24	£2.79	Add to
053	725-0308B	TRITTBRETTAUFFAGE RECHTS	N/A	POA
054	725-0309C	FOOD PAD-L.H.	N/A	POA
068	731-051181	EDGE GUARD 731-0511	£32.27	Add to
072	746-0616A	CHOKE CONTROL CABLE ASSY	£12.71	Add to
073	931-0823A	THROTTLE CONTROL BOX ASSY	£25.49	Add to
074	710-0779A	SELF TAP SCREW	£3.58	Add to
075	746-0638	CABLE-THROTTLE	£11.28	Add to
076	757-0378	SEAT:V-380:BLACK PR 757-0363A	£317.61	Add to
078	736-0159	WASH .349 ID X .879 OD X .063	£3.59	Add to
079	722-0160	ELASTEMER BUSHING .930 OD X .5	£3.20	Add to
083	710-0227	SCR:AB:#8-18:0.500:HXINDWH	£3.07	Add to
084	725-1439	SW:INNER SEAT SPRG	£8.44	Add to
085	732-0581B	SPRG:EXTN:.75 OD X 5.31	£7.22	Add to
086	17239C	BRKT:LIFT:SEAT	N/A	POA
087	726-0278	INSULATING PLATE	£3.20	Add to
088	738-0155	BOLT:SHLDR:.435 x.160:5/16-18	£7.50	Add to
089	738-3024	NO LONGER AVAILABLE	N/A	POA
090	736-0141	WASH:SPR:.440 x.750 x.015	£3.39	Add to
091	710-0604A	SCREW	£3.62	Add to
092	726-0279	INSULATING PLATE	£3.20	Add to
094	735-0254	CENTER FOOT PAD 723-0423 (OBSOLETE)	N/A
095	725-1303	SW:OUTER SEAT SPRG	£3.26	Add to
096	731-1228	NO LONGER AVAILABLE	N/A	POA
097	17782	CHOKE CABLE RETAINER CLIP	£13.39	Add to
102	725-0925	AMMETER 620	£30.37	Add to
103	712-3007	HEX JAM NUT	£3.07	Add to
104	710-0599	HEX TT SCREW 1/4-20	£4.95	Add to
107	710-3015	SCREW HEX CAP	£3.33	Add to
108	712-0271	NUT:SEMS:1/4-20	£3.03	Add to
111	723-0444	BATTERY STRAP	£24.86	Add to
112	725-0690	CAP-BATTERY-725-0514	£3.02	Add to
