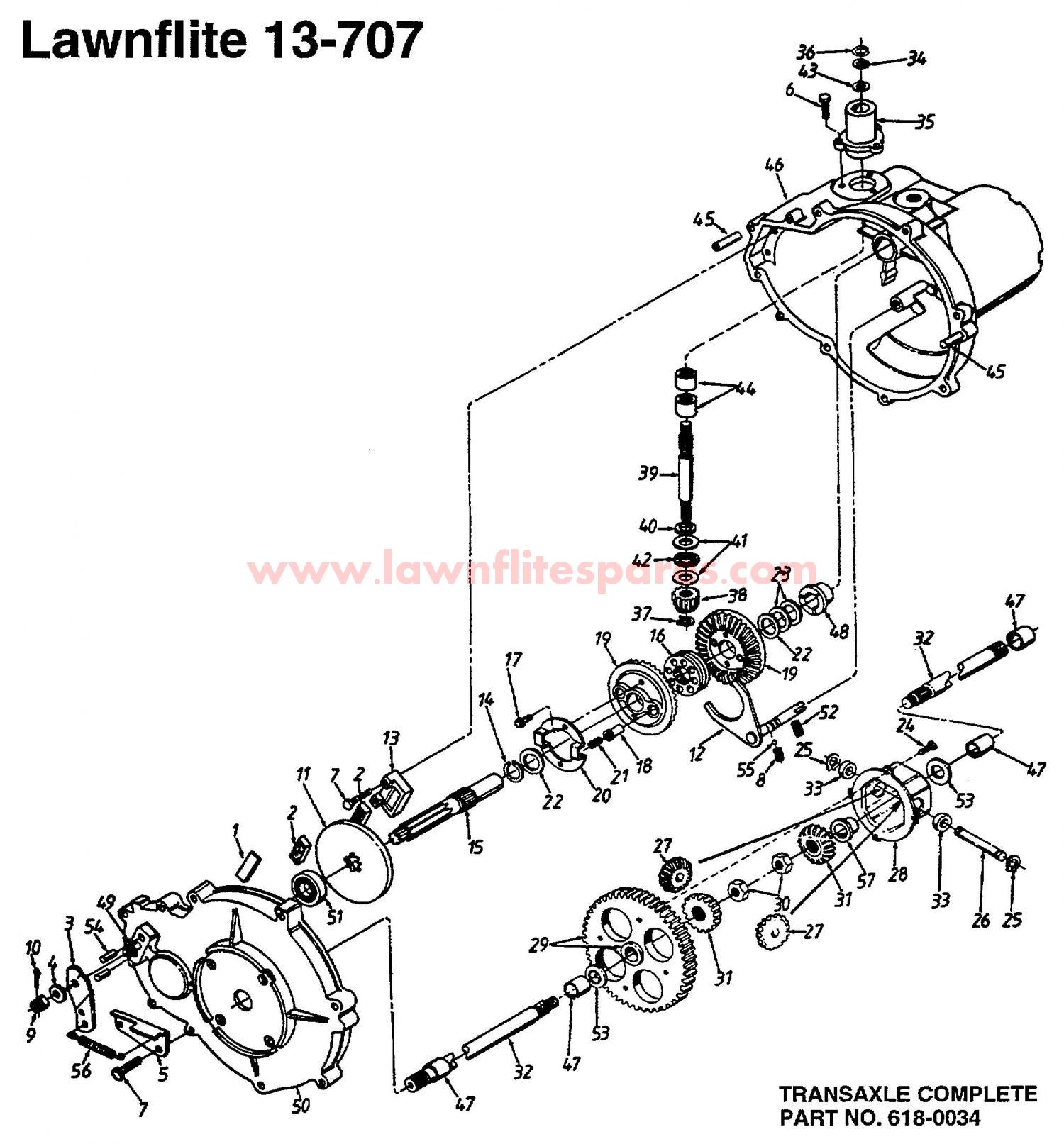

LAWN TRACTOR - 13-707

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
00-618-0034TRANSAXLE COMPLETE£1,443.61 Add to
001717-0682PLATE£14.67 Add to
002761-0200NO LONGER AVAILABLEN/A POA
003717-0772BLEVER, PARK BRAKE ENGAGEMENT£13.38 Add to
004736-0371WASH:THRST:.343 X .880 X .062£3.20 Add to
00517841ABRAKE STOP BRKT.£10.11 Add to
006710-0433HEX BOLT£6.66 Add to
007710-0809SCR:TT:1/4-20:1.250:HXINDWSH£3.42 Add to
008732-0863COMPRESSION SPRING 225X.50"£3.42 Add to
009712-0335CASTLE NUT HG-44142£7.11 Add to
010714-0111COTTER PIN£3.20 Add to
011718-0184NO LONGER AVAILABLEN/A POA
012717-1102SHIFTER ASS'Y.£38.30 Add to
013717-1217BRAKE PUCK HOLDER£18.27 Add to
014716-0175NO LONGER AVAILABLEN/A POA
015717-1093SHAFT DRIVE£78.72 Add to
016717-1268NO LONGER AVAILABLEN/A POA
017710-0653HEX SCREW, 1/4-20 X 3/8"£4.22 Add to
018717-1184NO LONGER AVAILABLEN/A POA
019917-1275BEVEL GEAR ASS'Y. (INCL. REF. NOS. 17, 18, 20 AND 21) 717-1275£323.93 Add to
020717-1269SPRING RETAINING PLATE£78.98 Add to
021732-0590ACOMPRESSION SPRING£13.39 Add to
022736-0444NO LONGER AVAILABLEN/A POA
023736-0454NO LONGER AVAILABLEN/A POA
024710-0862ASCREW£8.62 Add to
025716-0184RETAINER£2.98 Add to
026711-0918SHAFT-CROSS£41.74 Add to
027717-1020GEAR-MITER£30.02 Add to
028917-1252NO LONGER AVAILABLEN/A POA
029717-1254NO LONGER AVAILABLEN/A POA
030712-0200ANUT, HEX JAM W/PLASTIC PATCH£4.70 Add to
031717-1019GEAR-MITER£28.42 Add to
032717-1197AXLE£67.26 Add to
033753-0527CIRCLIP WALBRO 092.15.420£50.09 Add to
034716-0171RING, RETAINER£5.24 Add to
035717-1228INPUT BEARING HOUSING£28.34 Add to
036732-0614CIRCLIP£3.80 Add to
037716-0108RETAINING:RING:EXT .437£3.91 Add to
038717-0633PINION-INPUT-14T£22.47 Add to
039711-0861NO LONGER AVAILABLEN/A POA
040721-0178SEALING WASHER 092.15.408£5.10 Add to
041736-0419NO LONGER AVAILABLEN/A POA
042741-0469THRUST BEARING£11.43 Add to
043736-0349WASHER:SHIM:.630x1.000x.020:HD£3.39 Add to
044741-0335BEARING-NEEDLE .625X.813X.495£16.43 Add to
045715-0209DOWEL PIN£3.69 Add to
046717-1235R.H. HOUSING£408.39 Add to
047741-05060BEARING£15.60 Add to
048741-0548FLANGE BEARING .906" I.D.£12.68 Add to
049717-0796NO LONGER AVAILABLEN/A POA
050717-1234NO LONGER AVAILABLEN/A POA
051741-0124ABALL BEARING£20.00 Add to
052710-3006THREADED PIN£3.48 Add to
053736-0445WASH:FL:.760 x 1.50 x.06:HT£3.59 Add to
054741-0343PIN£10.78 Add to
055741-0862BALL:DETNT:.250 DIA£6.05 Add to
056732-0545EXT. SPRING 1.14" LG.£19.68 Add to
057741-0552NO LONGER AVAILABLEN/A POA
