LAWN TRACTOR - 13-707

Parts list

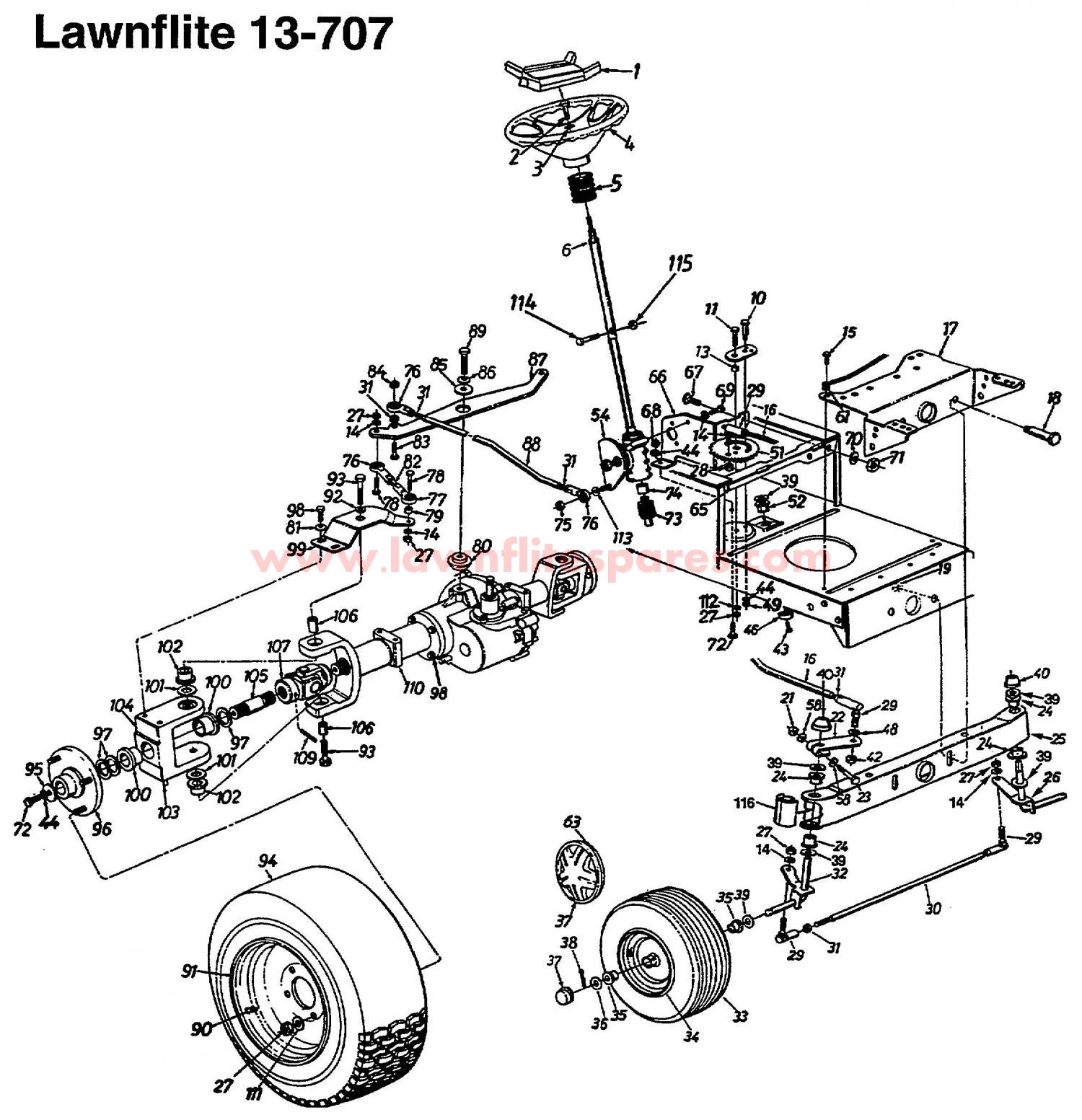

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
	734-0255	VALVE - TUBELESS AIR	£7.02	Add to
	737-0280	FITTING-GREASE	£13.79	Add to
	17647	STEERING BRKT.--L.H. (NOT SHOWN)	£24.18	Add to
	734-1730	TIRE-TUBELESS 2 734-1596	£159.43	Add to
	734-1731	TYRE 15x6.00-6 NHS	£123.31	Add to
001	731-0955	CAP-STEERINF WHEEL W/SPRIG	£20.16	Add to
002	710-0643	BOLT	£3.85	Add to
003	736-0242	BELL WASHER	£3.72	Add to
004	631-0027	WHL:STRG:13.25 DIA:4 SPK 5/8	£73.34	Add to
005	731-0954	BELLOW STEERING COLUMN	£20.36	Add to
006	738-0943	AXLE-SPIRAL	£85.82	Add to
009	783-04644	BRACKET	£15.63	Add to
010	738-0141	SHLD SCREW (OBSOLETE) (OBSOLETE) (OBSOLETE) (OBSOLETE)	N/A
011	710-1039	HEX BOLT 3/8-24 x 1 INCH Lg	£3.62	Add to
013	750-0535	SPACER	£10.09	Add to
014	736-0169	L. WASHER	£2.89	Add to
015	710-0726	HEX SCREW AB 5/16-12:0.750	£3.19	Add to
016	753-0654	ROD ASSY. CONNECTING STD 711-1068	£108.12	Add to
017	783-0041A-0637	BRACKET:BAR:PIVOT 783-0041A	N/A	POA
018	738-0527	SCR:SHLDR:.498 DIA X 2.045	£7.78	Add to
019	712-0431	NUT	£3.20	Add to
021	712-0411	NUT	£2.69	Add to
022	683-0055637	STEERING ARM	£51.15	Add to
023	710-0772	HEX BOLT	£11.63	Add to
024	741-0659	FLANGE BEARING	£5.31	Add to
025	683-0128B637	PIVOT BAR ASSY	£65.51	Add to
026	683-0127637	FRONT AXLE ASSY. L.H. 683-0127	£117.06	Add to
027	712-0241	HEX NUT 3/8-24	£2.79	Add to
028	712-0446	HEX JAM NUT 3/8-24 X .218	£2.98	Add to
029	723-3018	BALL JOINT	£24.02	Add to
030	747-0753	TIE ROD KIT (OBSOLETE)	N/A
031	712-0711	NUT	£3.07	Add to
032	683-0126637	FRONT AXLE ASSY. R.H 3.32X4.84 683-0126	£116.34	Add to
033	634-0059662	WHL:COMPL:15.0 X 6.0 X 6.0:BB 634-0059	£153.83	Add to
034	634-0051	NO LONGER AVAILABLE	N/A	POA
035	741-0569	BALL BEARING	£18.91	Add to
036	736-0285	FLAT WASHER	£4.06	Add to
037	734-1613	HUBCAP 6" DIA OYSTER GRAY	£23.09	Add to
038	714-0470	COTTER PIN	£5.07	Add to
039	736-0187	FLAT WASHER	£3.19	Add to
040	726-0214	PUSH CAP	£5.36	Add to
043	710-1309	PAN HEAD SCREW	£5.28	Add to
044	736-0119	LOCK WASHER 5/16	£3.33	Add to
046	748-0389	CAP	£2.77	Add to
048	736-0169	L. WASHER	£2.89	Add to
049	712-0158	NUT, HEX CENTER LOCK, 5/16-18	£9.35	Add to
051	717-1701	STEERING GEAR SEGMENT	£125.51	Add to
052	741-0656A	METAL FLANGE BEARING	£5.76	Add to
054	618-0114	STEERING ASS'Y. COMP. (INCL. REF. NOS. 1 THRU 18)	£743.52	Add to
058	736-0271	WASHER	£3.16	Add to
061	736-0607	WASH:LOCK:5/16 EXT TOOTH	£3.31	Add to
063	727-0425A	SPRING CLIP	£2.98	Add to
065	17778A	HORIZONTAL CROSS BRACKET	N/A	POA
066	783-0369	VERTICAL MOUNTING BRACKET	£17.75	Add to
067	710-0412	HHCS:1/4-28:.75:GR5:STD	£3.51	Add to
068	712-3057	NUT 5/16-24	£3.00	Add to
069	710-0253	SCREW-HEX	£13.79	Add to
070	736-0270	BELL WASHER	£3.91	Add to
071	712-0138	NUT	£3.03	Add to
072	710-0157	HHCS:5/16-24:.75:GR5:STD	£6.99	Add to
073	717-1466	PINION SHAFT	£134.69	Add to
074	717-1461	STEERING SHAFT SPLINED COUPLER	£13.07	Add to
075	712-0262	NUT:JAMLK:3/8-24:GR2	£12.97	Add to
076	723-0420	NO LONGER AVAILABLE	N/A	POA
077	723-0421	NO LONGER AVAILABLE	N/A	POA
078	710-0459A	TIE ROD BOLT	£3.62	Add to
079	750-0535	SPACER	£10.09	Add to
080	750-0809	SHLD. SPACER .51" I.D.	£22.12	Add to
081	736-0105	BELL WASHER	£3.33	Add to
082	747-0761	NO LONGER AVAILABLE	N/A	POA
083	710-0191	HEX BOLT (RED)	£7.13	Add to
084	712-0296	NUT:JAMLK:3/8-24	£3.59	Add to
085	736-3027	WASH:FL:.531 X 1.75 X .090	£3.82	Add to
086	736-0253	WASH:BLVL:.525 x 1.000 x.050	£3.87	Add to
087	17764	STEERING BOOM	£431.34	Add to
088	738-0838	STEERING LINK	£50.72	Add to
089	710-3181	HHCS:1/2-13:1.50:GR5:STD	£4.50	Add to
090	734-0255	VALVE - TUBELESS AIR	£7.02	Add to
091	734-1607	RIM ONLY	£100.10	Add to
093	710-1142	HEX BOLT 1/2-20 X 1.75" LG. (GR. 5)	£6.94	Add to
094	734-1668	NO LONGER AVAILABLE	N/A	POA
095	736-0343	WASHER-5/16 x 1.25	£4.57	Add to
096	717-1298	NO LONGER AVAILABLE	N/A	POA
097	736-0420	WASH:FLAT:1.OX1.56	£15.55	Add to
098	710-0191	HEX BOLT (RED)	£7.13	Add to
099	883166A2	STEERING BRKT.--R.H. 17646	N/A	POA
100	741-04488	FLANGE BEARING 741-0558	£18.57	Add to
101	736-0445	WASH:FL:.760 x 1.50 x.06:HT	£3.59	Add to
102	741-0547	BEARING-FLANGE	£17.58	Add to
103	737-3001	GREASE NIPPLE	£15.73	Add to
104	717-1291	WHEEL BRG. HOUSING	£200.85	Add to
106	717-1271	PIVOT SLEEVE	£12.68	Add to
107	717-1270	U-JOINT	£209.65	Add to
109	715-0208	NO LONGER AVAILABLE	N/A	POA
110	717-1285	NO LONGER AVAILABLE	N/A	POA
111	736-0105	BELL WASHER	£3.33	Add to
112	736-0356	BELL WASHER	£3.95	Add to
113	736-0140	WASH:FLAT:.385 x.62 x.063	£3.59	Add to
114	710-0958	NO LONGER AVAILABLE	N/A	POA
115	712-0324	HEX. INS L NUT	£3.69	Add to
116	731-1291A	ENDCAP AXLE	£10.11	Add to
