Grass box

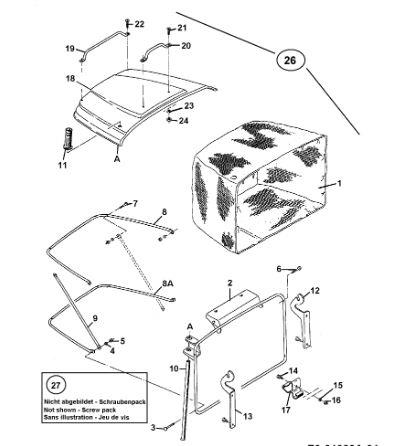

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	664-0125A	GRASS BAG TISSUE	£239.03	Add to
002	683-0171B	TUBE FRAME:ASM:	N/A	POA
003	710-1612	BOLT:CRG:5mm x 30.0 LG	£5.69	Add to
004	736-0602	WASHER A 5,3 DIN 125	£2.70	Add to
005	712-0675	NUT:HEX:M5 x.80:DIN 985	£4.25	Add to
006	710-1612	BOLT:CRG:5mm x 30.0 LG	£5.69	Add to
007	710-1612	BOLT:CRG:5mm x 30.0 LG	£5.69	Add to
008	749-1009637	NO LONGER AVAILABLE	N/A	POA
009	749-1011	BRACE-VAR SP	£25.20	Add to
010	749-1012A	TUBE:LVR:BAG:LIFT (OBSOLETE)	N/A
011	720-0301	GRIP	£7.51	Add to
012	783-0581B	BRKT:LEFT:GRASS CTCHR	£63.70	Add to
013	783-0582A	BRACKET RH GRASS CATCHER	£62.50	Add to
014	710-0751	BOLT 069	£3.39	Add to
015	736-0329	L. WASHER	£3.26	Add to
016	712-0287	NUT HEX	£3.31	Add to
017	732-0838A	SPRING	£6.95	Add to
018	783-0583	HOOD:CATCHER	N/A	POA
019	749-1013	HANDLE LONG	£34.10	Add to
020	749-1014637	HANDLE SHORT 749-1014	£24.91	Add to
021	710-1612	BOLT:CRG:5mm x 30.0 LG	£5.69	Add to
022	710-1612	BOLT:CRG:5mm x 30.0 LG	£5.69	Add to
023	736-0602	WASHER A 5,3 DIN 125	£2.70	Add to
024	712-0675	NUT:HEX:M5 x.80:DIN 985	£4.25	Add to
026	913-04231	GRASS CTHR & FRAME:HARDTOP 813-04232	£488.66	Add to
027	753-0725	SCHRAUBENSATZ FÜR GRASAUFNAHME	£32.22	Add to
08A	749-1010637	NO LONGER AVAILABLE	N/A	POA
