Gearbox

Parts list

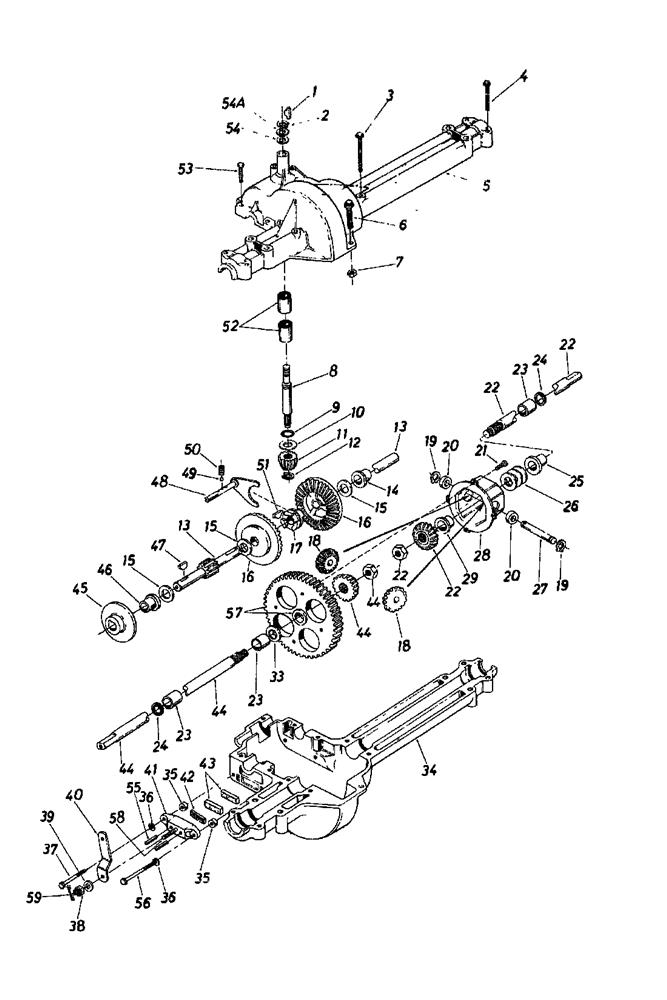

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001714-0129key 090.47.490£11.55 Add to
002716-0115RING:RET:.56 DIA SHAFT£3.59 Add to
003716-0115RING:RET:.56 DIA SHAFT£3.59 Add to
004710-0809SCR:TT:1/4-20:1.250:HXINDWSH£3.42 Add to
005753-0714NO LONGER AVAILABLEN/A POA
006710-0642SCREW-HEX HD TAP 4-20 x 7.5£3.68 Add to
007712-0287NUT HEX£3.31 Add to
008717-0634AINPUT SHAFT 717-0634£61.48 Add to
009721-0178SEALING WASHER 092.15.408£5.10 Add to
010736-0335WASH:THRST:.635 X 1.26 X .06£8.82 Add to
011717-0633PINION-INPUT-14T£22.47 Add to
012716-0108RETAINING:RING:EXT .437£3.91 Add to
013717-0768DRIVE SHAFT£131.90 Add to
014741-0336BEARING£8.18 Add to
015736-0349WASHER:SHIM:.630x1.000x.020:HD£3.39 Add to
016717-0757KEGELRAD 42 ZAEHNE 092.15.417£90.64 Add to
017717-0667CLUTCH-PTO 092.15.418 (OBSOLETE) (OBSOLETE) (OBSOLETE)N/A
018717-1020GEAR-MITER£30.02 Add to
019753-0527CIRCLIP WALBRO 092.15.420£50.09 Add to
020753-0527CIRCLIP WALBRO 092.15.420£50.09 Add to
021710-0862ASCREW£8.62 Add to
022717-0766TRANSMISSION AXLE RH£127.14 Add to
023741-05060BEARING£15.60 Add to
023741--0340N/A POA
024721-0179OIL SEAL 3/4 ID£8.19 Add to
025741-0339BEARING, HEX FLANGE£14.70 Add to
026736-0351WASH:SHIM:.760x1.500X.030:HD£2.97 Add to
027753-0527CIRCLIP WALBRO 092.15.420£50.09 Add to
028753-0546DIFFERENTIAL HOUSING 092.15.428£71.79 Add to
029741-0338FLANGE BEARING (OBSOLETE)£7.81 Add to
033736-0351WASH:SHIM:.760x1.500X.030:HD£2.97 Add to
034753-0714NO LONGER AVAILABLEN/A POA
035750-0555SPACER .254 ID X .50 OD X .390 (OBSOLETE) (OBSOLETE)N/A
036736-0329L. WASHER£3.26 Add to
037710-0886HEX BOLT 1/4-20 X 1.50" LG. (GRADE 5)£6.32 Add to
038712-0335CASTLE NUT HG-44142£7.11 Add to
039736--0371N/A POA
040717-0772BLEVER, PARK BRAKE ENGAGEMENT£13.38 Add to
041717-0679BRAKE CALIPER 092.15.435£25.38 Add to
042717--0682N/A POA
043717-0678PAD£12.86 Add to
044717-0765TRANSMISSION SHAFT LH£205.36 Add to
045717-0677NO LONGER AVAILABLEN/A POA
046741-0337BEARING£10.11 Add to
047714-0161KEY:HI-PRO:3/16 x 5/8£15.59 Add to
048717-0754SCREW 092.15.422£205.70 Add to
049741-0862BALL:DETNT:.250 DIA£6.05 Add to
050732-0863COMPRESSION SPRING 225X.50"£3.42 Add to
051714-016952928 092.15.443£27.07 Add to
052741-0335BEARING-NEEDLE .625X.813X.495£16.43 Add to
053710-0855HEX BOLT 1/4-20 X 1.00" LG.£2.69 Add to
054736-0337WASHER:FLAT:.634x1.00x.04:HT£3.19 Add to
055741--0343N/A POA
056710-0966NO LONGER AVAILABLEN/A POA
057717-1067N/A POA
058717-0796NO LONGER AVAILABLEN/A POA
059714-0507COTTER PIN 3/32 DIA£3.13 Add to
54A736--0337N/A POA
