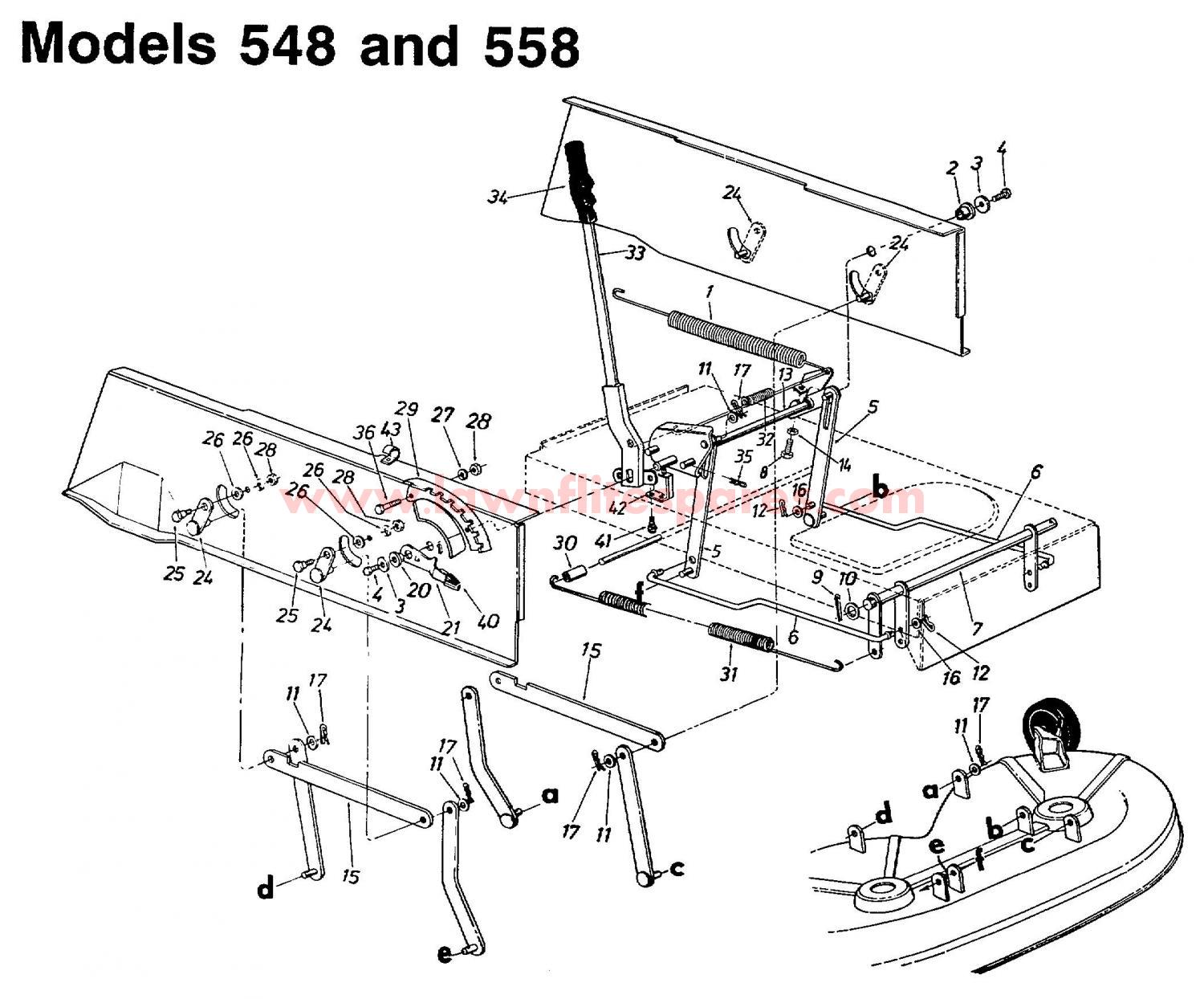

FRONT ENGINE LAWN TRACTORS -- MODELS 548 AND 558

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	732-0307A	Spring	£22.68	Add to
002	741-0487C	FLANGE BEARING	£6.18	Add to
003	736-0231	WASHER FLAT	£3.58	Add to
004	710-0604A	SCREW	£3.62	Add to
005	14802A	DECK LIFT LINK ASSY	£32.45	Add to
006	711-0738	STABILIZER ROD(548)	£32.42	Add to
006	711-0790A	NO LONGER AVAILABLE	N/A	POA
007	16234A	STUETZWELLE 092.15.357	£63.78	Add to
008	710-0602	SCREW:TT:5/16-18:1.00:HXINDWSH	£5.64	Add to
009	714-0470	COTTER PIN	£5.07	Add to
010	736-0156	WASHER	£7.07	Add to
011	736-0160	WASH:FLAT:.530x.930x.050	£3.39	Add to
012	714-0111	COTTER PIN	£3.20	Add to
013	17154A	NO LONGER AVAILABLE	N/A	POA
014	712-3007	HEX JAM NUT	£3.07	Add to
015	09735A	NO LONGER AVAILABLE	N/A	POA
016	736-0117	WASH:FLAT:.385 x.620 x.033	£3.31	Add to
017	714-0101	PIN:COT:INT:.08 X 1.42	£3.58	Add to
020	748-0176	FLANGE BEARING	£8.62	Add to
021	732-0412A	NO LONGER AVAILABLE	N/A	POA
024	9721	LIFT SHAFT-DRIVE 090.47.558	£13.53	Add to
025	738-0140	SHLD SCREW	£6.03	Add to
026	736-0425	BELLWASHER	£3.31	Add to
027	736-0119	LOCK WASHER 5/16	£3.33	Add to
028	712-3010	NUT 5/16 x 18	£2.77	Add to
029	16462	NO LONGER AVAILABLE	N/A	POA
030	711-0425	SPACER .523" I.D. X .640" O.D. X 1.95" LG.	£6.38	Add to
031	732-0530	NO LONGER AVAILABLE	N/A	POA
032	732-0573	NO LONGER AVAILABLE	N/A	POA
033	753-0548	LIFT HANDLE ASS'Y. 16465A	£79.09	Add to
034	720-0233	GRIP:HNDL:DECK LIFT	£7.92	Add to
035	714-0145	R CLIP	£2.78	Add to
036	710-3008	HEX BOLT	£3.03	Add to
040	8540	HANDLE GRIP	N/A	POA
041	710-1388	SCREW	£3.23	Add to
042	725-0803B	SAFETY SWITCH	£33.60	Add to
043	726-0175	CLAMP	£4.50	Add to
