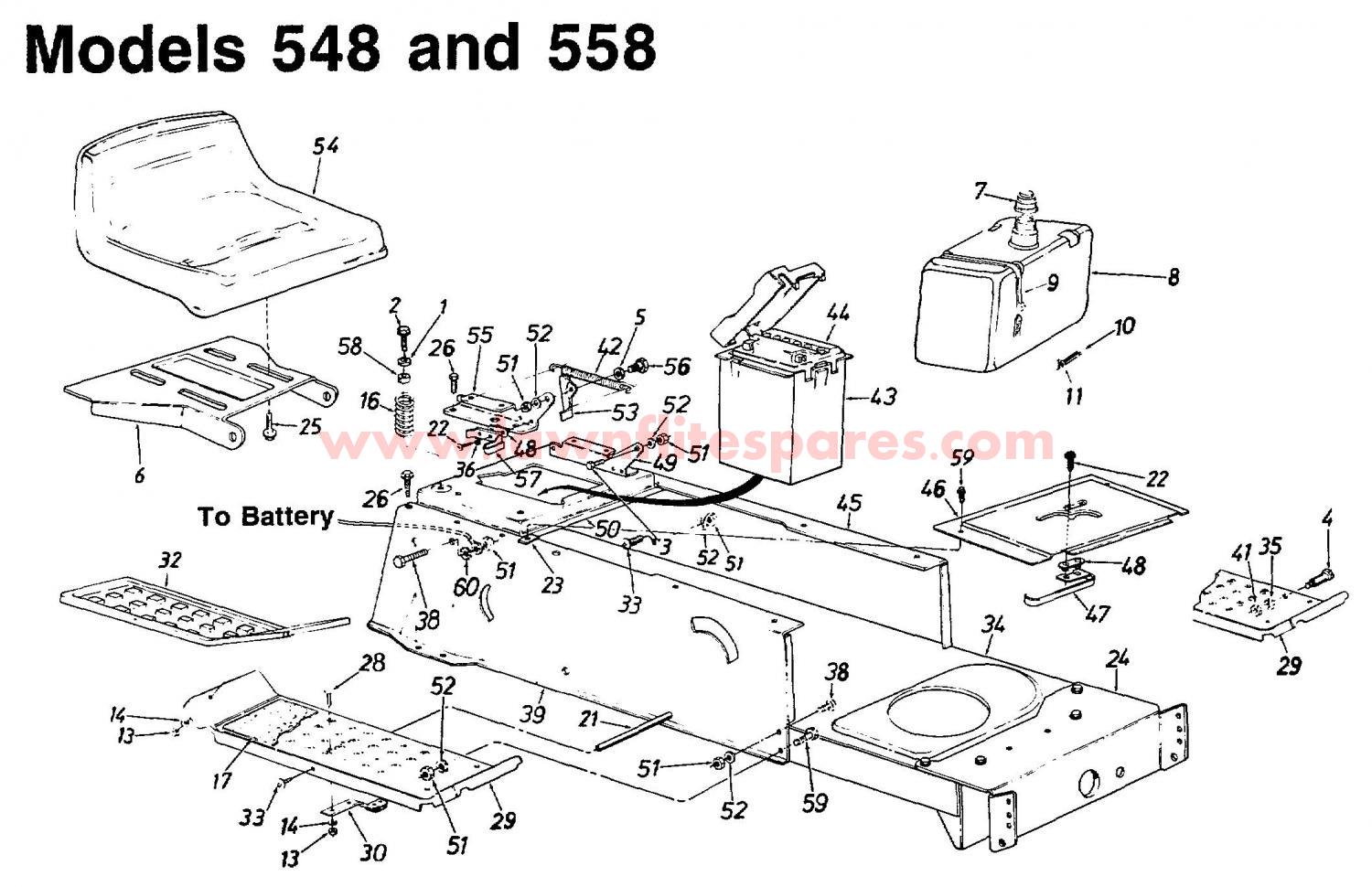

FRONT ENGINE LAWN TRACTORS -- MODELS 548 AND 558

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	736-0159	WASH .349 ID X .879 OD X .063	£3.59	Add to
002	710-0602	SCREW:TT:5/16-18:1.00:HXINDWSH	£5.64	Add to
003	738-0155	BOLT:SHLDR:.435 x.160:5/16-18	£7.50	Add to
004	738-0145	SCREW-SHLD	£7.81	Add to
005	736-0141	WASH:SPR:.440 x.750 x.015	£3.39	Add to
006	15607D	SEAT PIVOT BRACKET	£47.80	Add to
007	723-0333	NO LONGER AVAILABLE	N/A	POA
008	753-0503	FUEL TANK 751-0172	£64.10	Add to
009	726-0209	NO LONGER AVAILABLE	N/A	POA
010	751-10349-54	FUEL LINE HOSE BLACK	£25.38	Add to
011	726-0207	NO LONGER AVAILABLE	N/A	POA
013	712-0287	NUT HEX	£3.31	Add to
014	736-0329	L. WASHER	£3.26	Add to
016	732-0588	SPRG:COMP 1.35 OD X 3,6	£13.94	Add to
017	723-0360A	TRITTBRETTBELAG 092.15.250	£15.92	Add to
021	738-0526	RUNNING BOARD ROD .500 DIA X 2	£40.95	Add to
022	710-0227	SCR:AB:#8-18:0.500:HXINDWH	£3.07	Add to
023	726-0139	SPEED NUT 10Z U-TYPE	£3.39	Add to
024	14619A	FRONT PIVOT BRACKET	£57.02	Add to
025	710-0623	SCR:TT:3/8-16:.750 HXINDWSH	£6.30	Add to
026	710-0726	HEX SCREW AB 5/16-12:0.750	£3.19	Add to
028	710-0134	BOLT	£3.03	Add to
029	14604E	RUNNING BOARD L&R 13-684	£80.78	Add to
030	--	Engine	N/A	POA
032	731-0909	PAD-LH FOOT	£31.52	Add to
032	731-0910	PAD-RH FOOT	£42.25	Add to
033	710-0323	SCREW	£3.70	Add to
034	15930B	LOWER FRAME 13-684	£193.88	Add to
035	736-0169	L. WASHER	£2.89	Add to
036	736-0426	FIBER WASHER 736-0338	£4.11	Add to
038	710-3008	HEX BOLT	£3.03	Add to
039	14602G-0637	FRAME SIDE -LH	£90.88	Add to
041	712-0798	HEX. NUT	£7.61	Add to
042	732-0581B	SPRG:EXTN:.75 OD X 5.31	£7.22	Add to
043	731-0871B	BATTERY BOX W/COVER	£59.87	Add to
044	EPB3117	BATTERY 12N14-3A (DRY)	£52.41	Add to
045	14603G	LH SIDE FRAME	£122.44	Add to
046	--	Engine	N/A	POA
047	753-0579	NO LONGER AVAILABLE	N/A	POA
048	726-0222	PLATE-INSULATOR NUT	£3.05	Add to
049	17243	SEAT PIVOT BRKT. SUPPORT--L.H.	£15.02	Add to
050	17225	HITCH PLATE	£134.70	Add to
051	712-3010	NUT 5/16 x 18	£2.77	Add to
052	736-0119	LOCK WASHER 5/16	£3.33	Add to
053	17239C	BRKT:LIFT:SEAT	N/A	POA
054	757-04107	SEAT	£187.38	Add to
055	17244	SEAT PIVOT BRKT. SUPPORT--R.H.	£15.02	Add to
056	738-3024	NO LONGER AVAILABLE	N/A	POA
057	725-1303	SW:OUTER SEAT SPRG	£3.26	Add to
058	722-0160	ELASTEMER BUSHING .930 OD X .5	£3.20	Add to
059	710-0971	SCREW-TRUSS PHIL HD	£2.93	Add to
060	736-0607	WASH:LOCK:5/16 EXT TOOTH	£3.31	Add to
