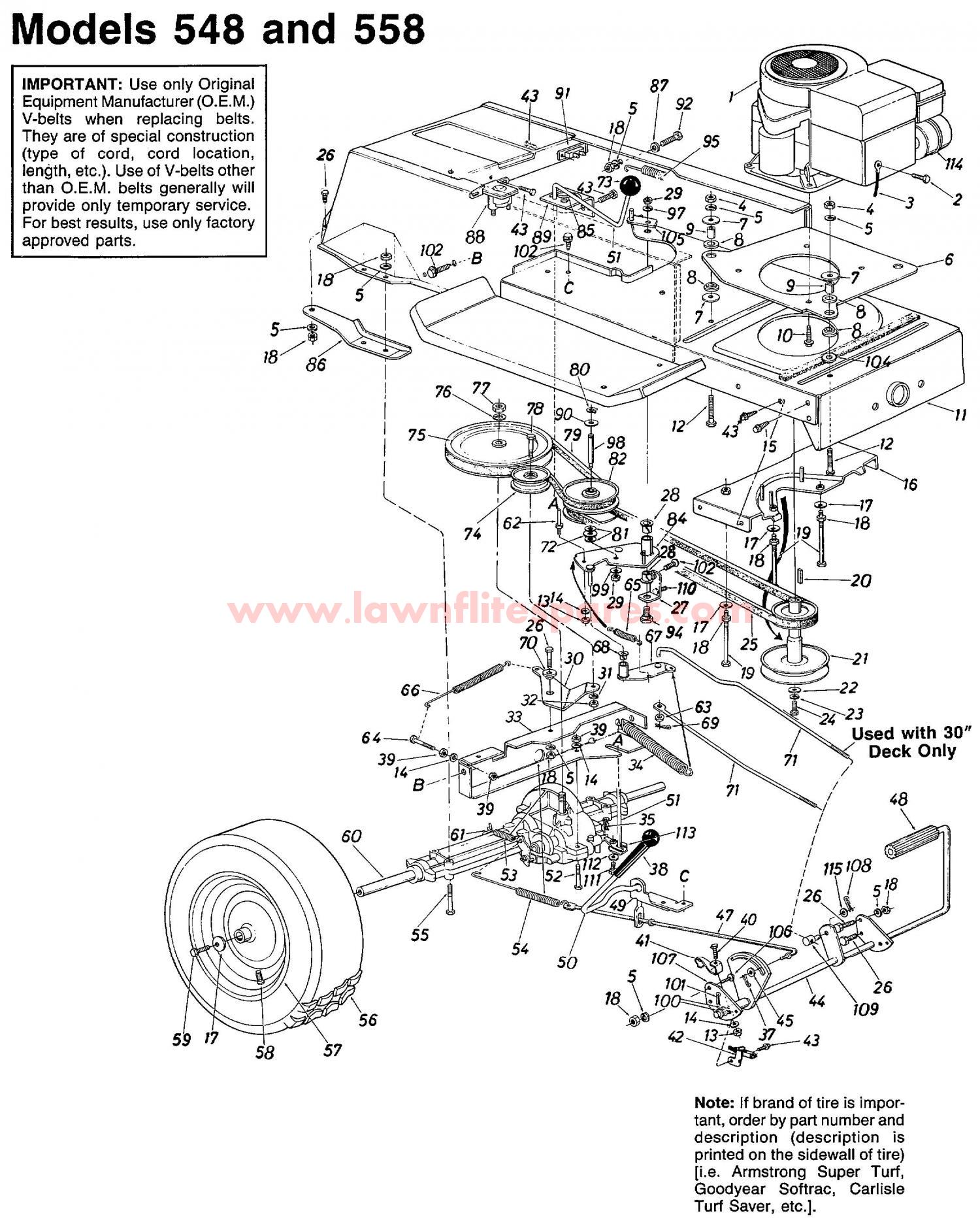

FRONT ENGINE LAWN TRACTORS -- MODEL 548 AND 558

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
	710-1030	NO LONGER AVAILABLE	N/A	POA
001	--	Engine	N/A	POA
002	710-0751	BOLT 069	£3.39	Add to
003	725-0976A	NO LONGER AVAILABLE	N/A	POA
004	712-3057	NUT 5/16-24	£3.00	Add to
005	736-0119	LOCK WASHER 5/16	£3.33	Add to
006	14791A	ENGINE MOUNTING	£73.94	Add to
007	736-0343	WASHER-5/16 x 1.25	£4.57	Add to
008	722-0153	MOUNTING	£5.41	Add to
009	750-0539	SPACER (OBSOLETE) (OBSOLETE)	N/A
010	710-0654A	SCR:TTSEMS:3/8-16:1.000:HXLWSH	£5.10	Add to
011	15930B	LOWER FRAME 13-684	£193.88	Add to
012	710-0672	HHCS:5/16-24:1.25:GR5:STD	£3.51	Add to
013	712-0287	NUT HEX	£3.31	Add to
014	736-0329	L. WASHER	£3.26	Add to
015	710-0781	BOLT 092.15.483	£4.91	Add to
016	15898	NO LONGER AVAILABLE	N/A	POA
017	736-0242	BELL WASHER	£3.72	Add to
018	712-3010	NUT 5/16 x 18	£2.77	Add to
019	747-3014	ROD, BELT GUIDE	£22.54	Add to
020	714-0114	SQUARE KEY	£5.26	Add to
021	756-0522	ENGINE PULLEY (548)	£142.30	Add to
021	756-0524	NO LONGER AVAILABLE	N/A	POA
022	736-0322	FI-WASH	£8.68	Add to
023	736-0171	WASHER	£2.93	Add to
024	710-0757	HEX SCREW	£7.96	Add to
025	754-0280A	BELT	£70.95	Add to
026	710-3008	HEX BOLT	£3.03	Add to
027	17963	BRACKET-BRG SHAFT	£7.19	Add to
028	741-0591	FLANGE BEARING	£3.44	Add to
029	712-0241	HEX NUT 3/8-24	£2.79	Add to
030	15891C	NO LONGER AVAILABLE	N/A	POA
031	736-0169	L. WASHER	£2.89	Add to
032	712-0241	HEX NUT 3/8-24	£2.79	Add to
033	15945E-0637	SUPPORT BRACKET TRANSAXLE	£42.97	Add to
034	732-0459	SPRING 6.7	£15.10	Add to
035	714-0149B	COTTER PIN	£3.58	Add to
037	714-0507	COTTER PIN 3/32 DIA	£3.13	Add to
038	720-0223	GRIP	£11.48	Add to
039	712-0138	NUT	£3.03	Add to
040	710-0597	HEX SEMS SCREW	£2.97	Add to
041	732-0582	NO LONGER AVAILABLE	N/A	POA
042	725-0577	SICHERUNGSSCHALTER 090.90.040	£26.54	Add to
043	710-0599	HEX TT SCREW 1/4-20	£4.95	Add to
044	16235A	CLUTCH/BRAKE PEDAL ASS'Y.	£110.25	Add to
045	736-0117	WASH:FLAT:.385 x.620 x.033	£3.31	Add to
047	747-0519	ROD-BRAKE 092.15.487	£23.07	Add to
048	735-0239A	FOOT PAD	£8.75	Add to
049	15889B	BRAKE LEVER BRACKET	£10.34	Add to
050	15888	HANDLE HHB	£23.45	Add to
051	17705	ROD:ASSY-SHIFT 375 DIA	£28.06	Add to
052	710-0559	NO LONGER AVAILABLE	N/A	POA
053	732-0264	EXTENSION SPRING	£10.47	Add to
054	732-0413	EXT SPRING	£12.22	Add to
055	710-0176	HHCS:5/16-18:2.75:GR5:STD	£6.11	Add to
056	734-0817662	WHL COMP:18x9.5 734-0817	£225.94	Add to
056	734-0592-G	WHL:COMP:18 x 6.5 7	£184.03	Add to
056	734-0448	TIRE:18 X 9.5	£140.76	Add to
056	734-0294	TIRE:18 X 6.5 X 8 SQ SH	£125.82	Add to
057	634-04369662	RIM ASM:COLOUR CUB BEIGE 634-0070	£105.87	Add to
057	634-04174662	RIM ASM-8.0X5.38 w/VALVE	£78.95	Add to
058	734-0255	VALVE - TUBELESS AIR	£7.02	Add to
059	710-0627	HEX SCREW	£3.32	Add to
060	753-0539	NO LONGER AVAILABLE	N/A	POA
061	732-0722A	SPRING:BRAKE RETURN ANCHOR	£8.39	Add to
062	711-1000	BELT KEEPER	£9.71	Add to
063	736-0275	WASH:FLAT:.344 x .688 x.065	£3.07	Add to
064	710-0428	NO LONGER AVAILABLE	N/A	POA
065	732-0568	SPRING EXTENSION	£5.45	Add to
066	732-0384	EXT SPRING	£15.79	Add to
067	16554A-Z	BRKT:VAR.SPD.TORQ ASSY-PAI 16554A	£26.52	Add to
067	16352A	NO LONGER AVAILABLE	N/A	POA
068	741-0419	FLANGE BEARING (OBSOLETE)	N/A
069	714-0507	COTTER PIN 3/32 DIA	£3.13	Add to
070	748-0234	SHOULDER SPACER	£5.43	Add to
071	747-0512	SPEED CONTROL LINK (548)	£23.72	Add to
071	747-0530A	LINK-SPEED CONTROL	£22.29	Add to
072	741-0405	NO LONGER AVAILABLE	N/A	POA
073	720-0232	KNOB:SHFT:1.60 OD X 1.56	£6.72	Add to
074	756-0643A	PUL IDLER FLAT 3.12	£27.94	Add to
075	756-0374	NO LONGER AVAILABLE	N/A	POA
076	736-0921	WASHER:LOCK:1/2:REGULAR DUTY	£2.98	Add to
077	712-0922	NO LONGER AVAILABLE	N/A	POA
078	710-0539	HHCS:3/8-24:1.75:GR5:STD	£4.46	Add to
079	754-0281	BELT TRANS 620	£53.72	Add to
080	716-0114	RING:RET:.56 DIA SHAFT	£3.58	Add to
081	736-0355	WASHER	£3.19	Add to
082	717-0800A	PUL:DR:VARI SPD 5.06 DIA	£236.50	Add to
084	16354B	NO LONGER AVAILABLE	N/A	POA
085	732-0525	COMP SPRING CLIP	£3.13	Add to
086	14770	R/H TRANSAXLE (RED)	£11.15	Add to
086	14769A	NO LONGER AVAILABLE	N/A	POA
087	736-0231	WASHER FLAT	£3.58	Add to
088	725-0771	RELAY	£40.54	Add to
089	16429A	NO LONGER AVAILABLE	N/A	POA
090	736-0414	WASHER	£5.00	Add to
091	753-0685	KIT CIRCUIT BREAKER (OBSOLETE) (OBSOLETE)	N/A
092	710-0959	BOLT 092.15.493	£15.81	Add to
094	738-0755	NO LONGER AVAILABLE	N/A	POA
095	732-0307A	Spring	£22.68	Add to
097	736-0105	BELL WASHER	£3.33	Add to
098	738-0569	SHAFT V. PULLEY	£39.36	Add to
099	736-0331	BELL WASHER	£3.95	Add to
100	736-0256	WASHER:FL:.635 IDX.930 ODX.03	£3.20	Add to
101	714-0111	COTTER PIN	£3.20	Add to
102	710-0604A	SCREW	£3.62	Add to
104	736-0362	WASH-FLAT:.330 x 1.25 x.06:HD	£4.66	Add to
105	16067	BELT GUARD	£8.79	Add to
106	710-0323	SCREW	£3.70	Add to
107	15835A	PEDAL BRACKET	£9.28	Add to
108	714-0507	COTTER PIN 3/32 DIA	£3.13	Add to
109	711-0198	PIVOT BUSHING	£12.12	Add to
110	710-0376	SCREW HEX CAP 5/16	£9.02	Add to
111	710-0195	HEX BOLT	£2.93	Add to
112	736-0270	BELL WASHER	£3.91	Add to
113	16437A	SHIFT LEVER LINK ASS'Y.	£10.86	Add to
114	751-0459	NO LONGER AVAILABLE	N/A	POA
115	736-0140	WASH:FLAT:.385 x.62 x.063	£3.59	Add to
