FRONT ENGINE LAWN TRACTORS -- MODEL 548 AND 558

Parts list

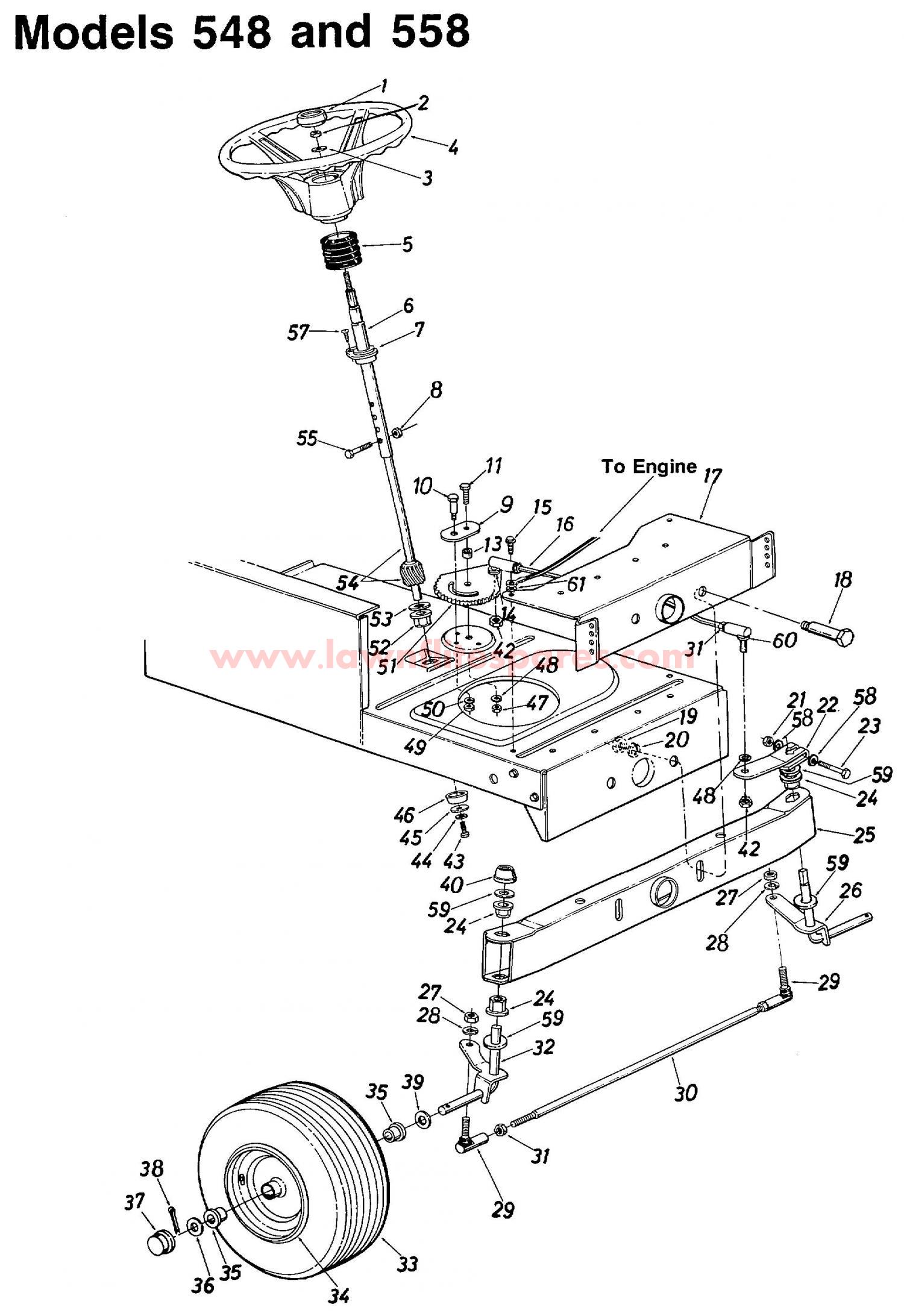

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	731-0220	STEERING WHEEL CAP	£9.71	Add to
002	712-0237	HEX CENTRE NUT	£11.18	Add to
003	736-0242	BELL WASHER	£3.72	Add to
004	731-0806A	STEERING WHEEL 731-0805 (OBSOLETE) (OBSOLETE)	£96.46	Add to
004	731-0806A	STEERING WHEEL 731-0805 (OBSOLETE) (OBSOLETE)	£96.46	Add to
005	731-0559	BELLOWS	£23.69	Add to
006	16512	NO LONGER AVAILABLE	N/A	POA
007	741-0356	BRG:STRG COL .890 ID x 1.36 OD	£4.85	Add to
008	712-0324	HEX. INS L NUT	£3.69	Add to
009	783-04644	BRACKET	£15.63	Add to
010	738-0141	SHLD SCREW (OBSOLETE) (OBSOLETE) (OBSOLETE) (OBSOLETE)	N/A
011	710-1039	HEX BOLT 3/8-24 x 1 INCH Lg	£3.62	Add to
013	750-0535	SPACER	£10.09	Add to
014	736-0169	L. WASHER	£2.89	Add to
015	710-0726	HEX SCREW AB 5/16-12:0.750	£3.19	Add to
016	753-0655	LENKSCHUBSTANGE 092.15.495	£135.09	Add to
017	14619A	FRONT PIVOT BRACKET	£57.02	Add to
018	738-0527	SCR:SHLDR:.498 DIA X 2.045	£7.78	Add to
019	712-0798	HEX. NUT	£7.61	Add to
020	736-0169	L. WASHER	£2.89	Add to
021	712-0237	HEX CENTRE NUT	£11.18	Add to
022	683-0055637	STEERING ARM	£51.15	Add to
023	710-0772	HEX BOLT	£11.63	Add to
024	741-0225	HEX FLANGE BEARING	£4.92	Add to
025	753-0642	PIVOT BAR SERVICE KIT	£112.65	Add to
026	683-0041A637	AXLE BLACK	£54.15	Add to
026	16479	FRONT AXLE ASS'Y.--L.H.	£105.12	Add to
027	712-0241	HEX NUT 3/8-24	£2.79	Add to
028	736-0169	L. WASHER	£2.89	Add to
029	723-3018	BALL JOINT	£24.02	Add to
030	711-3018	ROD TIE (OBSOLETE) (OBSOLETE)	N/A
031	712-0711	NUT	£3.07	Add to
032	683-0040A	NO LONGER AVAILABLE	N/A	POA
032	14650A	AXLE FRONT-RH	£105.12	Add to
033	734-0863A	WHEEL ASSEMBLY COMP. (558) (15" X 6") 734-0863	£273.45	Add to
033	734-1229	NO LONGER AVAILABLE	N/A	POA
033	734-1731	TYRE 15x6.00-6 NHS	£123.31	Add to
033	734-0298	TIRE 13 X 5.00-6	£126.72	Add to
033	741-0487C	FLANGE BEARING	£6.18	Add to
033	741-0487C	FLANGE BEARING	£6.18	Add to
033	734-0255	VALVE - TUBELESS AIR	£7.02	Add to
033	734-0255	VALVE - TUBELESS AIR	£7.02	Add to
033	737-0146	FITTING-GREASE	£4.11	Add to
033	737-0146	FITTING-GREASE	£4.11	Add to
034	753-0838662	KIT-WHEEL RIM	£109.22	Add to
034	734-1227	NO LONGER AVAILABLE	N/A	POA
035	741-0487C	FLANGE BEARING	£6.18	Add to
036	736-0285	FLAT WASHER	£4.06	Add to
037	731-0484A	HUB CAP	£5.05	Add to
038	714-0470	COTTER PIN	£5.07	Add to
039	736-0187	FLAT WASHER	£3.19	Add to
040	726-0214	PUSH CAP	£5.36	Add to
042	712-0711	NUT	£3.07	Add to
043	710-0538	HEX L BOLT	£4.15	Add to
044	736-0119	LOCK WASHER 5/16	£3.33	Add to
045	736-0343	WASHER-5/16 x 1.25	£4.57	Add to
046	750-0532	SPACER (OBSOLETE)	N/A
047	712-0241	HEX NUT 3/8-24	£2.79	Add to
048	736-0169	L. WASHER	£2.89	Add to
049	712-3010	NUT 5/16 x 18	£2.77	Add to
050	736-0119	LOCK WASHER 5/16	£3.33	Add to
051	717-0622C	GEAR SEGMENT	£39.29	Add to
052	741-0225	HEX FLANGE BEARING	£4.92	Add to
053	736-0187	FLAT WASHER	£3.19	Add to
054	738-0522A	STEUERGERAET 090.90.965	£104.37	Add to
055	710-0958	NO LONGER AVAILABLE	N/A	POA
057	710-0837	OVAL SUNK SCREW	£3.51	Add to
058	736-0271	WASHER	£3.16	Add to
059	736-0187	FLAT WASHER	£3.19	Add to
060	723-3018	BALL JOINT	£24.02	Add to
061	736-0607	WASH:LOCK:5/16 EXT TOOTH	£3.31	Add to
