Front axle

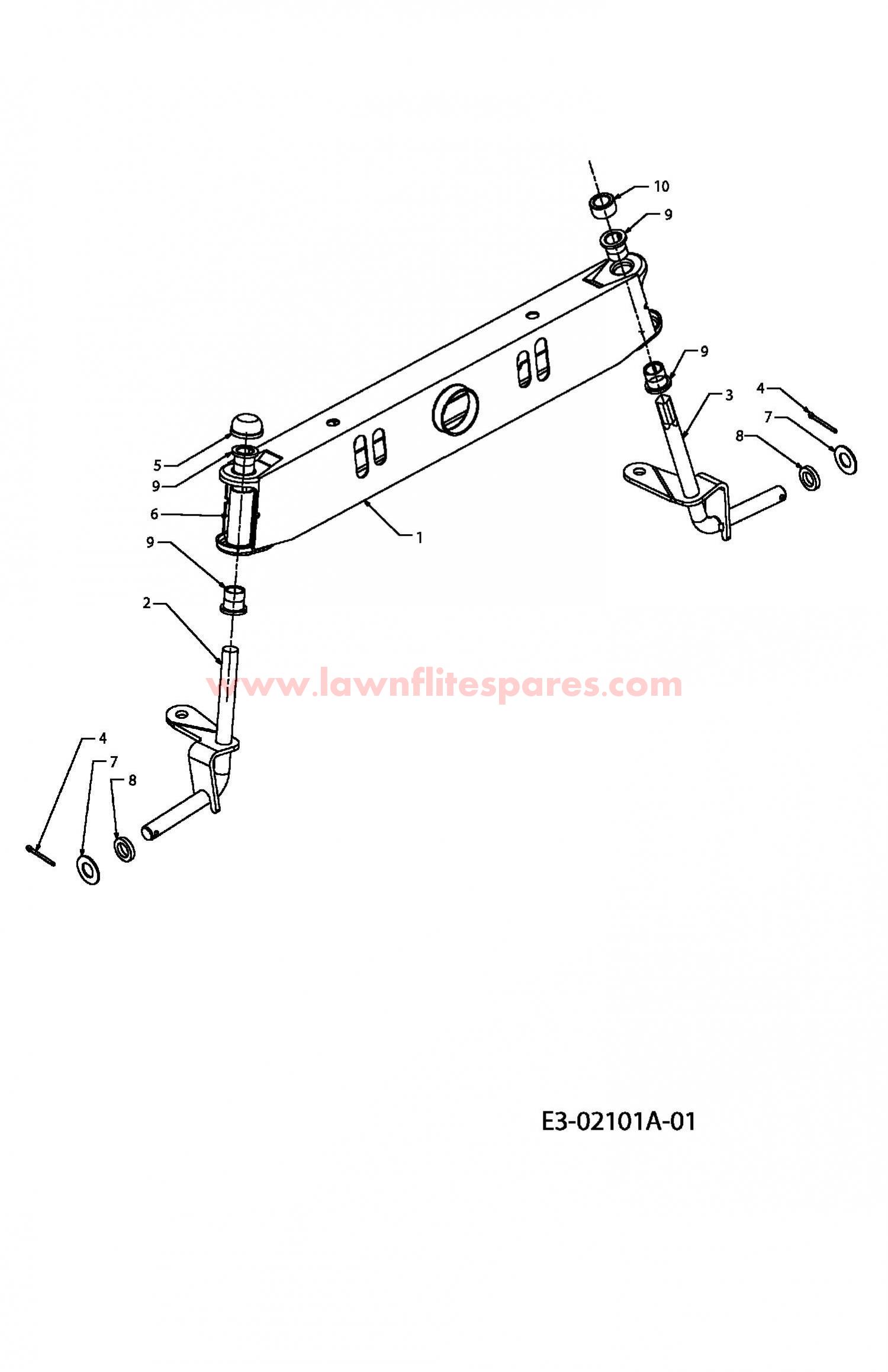

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	683-0002B637	AXLE ASM:PIVOT BAR:.625 SPACER 683-0002B	£157.33	Add to
002	683-04084637	AXLE ASSY. RH 13x5 BLACK 683-04084	£47.00	Add to
003	683-04085637	NO LONGER AVAILABLE	N/A	POA
004	714-0470	COTTER PIN	£5.07	Add to
005	726-0214	PUSH CAP	£5.36	Add to
006	731-04057A	CAP-AXLE STANDARD	£2.40	Add to
007	736-0187	FLAT WASHER	£3.19	Add to
008	736-0531A	WASH:FLAT:.640 X 1.00 X .180	£3.33	Add to
009	741-0487C	FLANGE BEARING	£6.18	Add to
010	748-04020	SPACER-PULLEY	£7.51	Add to
