Front axle

Parts list

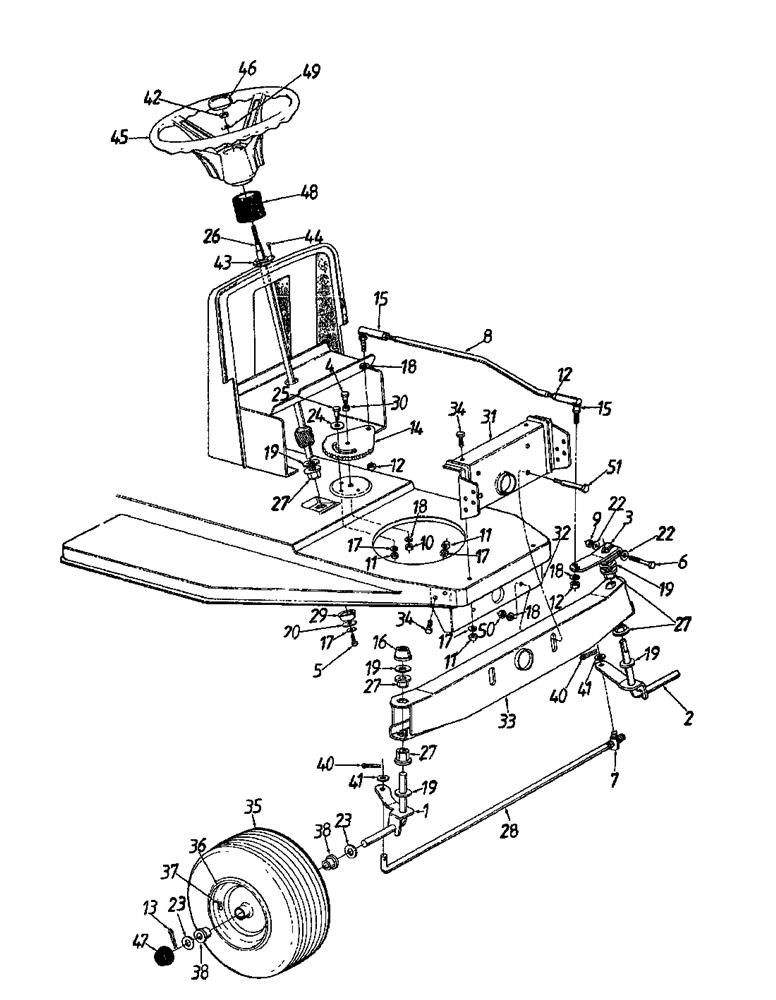

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	14650A	AXLE FRONT-RH	£105.12	Add to
002	16479	FRONT AXLE ASS'Y.--L.H.	£105.12	Add to
003	683-0055637	STEERING ARM	£51.15	Add to
004	710-1039	HEX BOLT 3/8-24 x 1 INCH Lg	£3.62	Add to
005	710-0538	HEX L BOLT	£4.15	Add to
006	710-0772	HEX BOLT	£11.63	Add to
007	711-0198	PIVOT BUSHING	£12.12	Add to
008	711-0809	NO LONGER AVAILABLE	N/A	POA
009	712-0237	HEX CENTRE NUT	£11.18	Add to
010	712-0241	HEX NUT 3/8-24	£2.79	Add to
011	712-3010	NUT 5/16 x 18	£2.77	Add to
012	712-0711	NUT	£3.07	Add to
013	714-0470	COTTER PIN	£5.07	Add to
014	717-0622C	GEAR SEGMENT	£39.29	Add to
015	723-3018	BALL JOINT	£24.02	Add to
016	726-0214	PUSH CAP	£5.36	Add to
017	736-0119	LOCK WASHER 5/16	£3.33	Add to
017	36-0119		N/A	POA
018	736-0169	L. WASHER	£2.89	Add to
019	736-0187	FLAT WASHER	£3.19	Add to
020	736-0231	WASHER FLAT	£3.58	Add to
022	736-0271	WASHER	£3.16	Add to
023	736-0285	FLAT WASHER	£4.06	Add to
024	736-0319	WASHER-FL	£31.59	Add to
025	738-0141	SHLD SCREW (OBSOLETE) (OBSOLETE) (OBSOLETE) (OBSOLETE)	N/A
026	738-0730	steering column	£89.21	Add to
027	741-0225	HEX FLANGE BEARING	£4.92	Add to
028	747-0558	ROD-TIE	£17.26	Add to
029	750-0532	SPACER (OBSOLETE)	N/A
030	750-0535	SPACER	£10.09	Add to
031	16657	NO LONGER AVAILABLE	N/A	POA
032	16658	NO LONGER AVAILABLE	N/A	POA
033	17127	NO LONGER AVAILABLE	N/A	POA
034	710-3008	HEX BOLT	£3.03	Add to
035	734-1422	FRONT WHEEL ASS'Y. COMP. 13" X 6"	£144.57	Add to
036	753-0838662	KIT-WHEEL RIM	£109.22	Add to
037	734-0255	VALVE - TUBELESS AIR	£7.02	Add to
038	741-0487C	FLANGE BEARING	£6.18	Add to
040	714-0111	COTTER PIN	£3.20	Add to
041	736-0185	FLAT WASHER (RED)	£3.59	Add to
042	712-3057	NUT 5/16-24	£3.00	Add to
043	741-0501	NO LONGER AVAILABLE	N/A	POA
044	710-0837	OVAL SUNK SCREW	£3.51	Add to
045	731-0806A	STEERING WHEEL 731-0805 (OBSOLETE) (OBSOLETE)	£96.46	Add to
046	731-0220	STEERING WHEEL CAP	£9.71	Add to
047	731-0484A	HUB CAP	£5.05	Add to
048	731-0559	BELLOWS	£23.69	Add to
049	736-0242	BELL WASHER	£3.72	Add to
050	712-0798	HEX. NUT	£7.61	Add to
051	738-0365	NO LONGER AVAILABLE	N/A	POA
