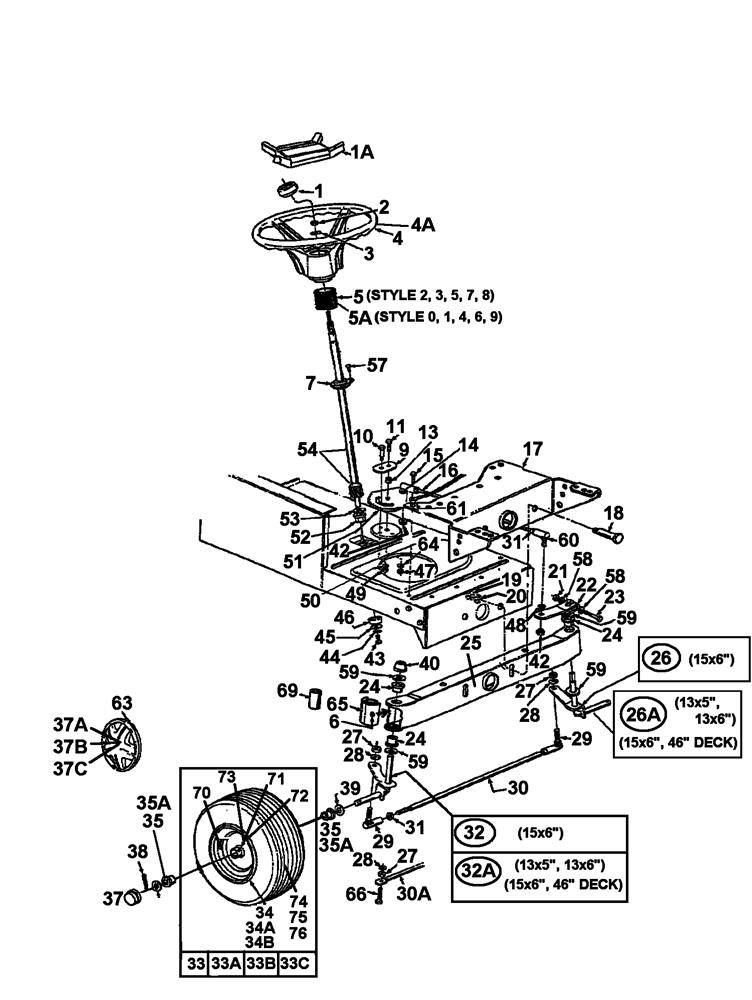

Front axle

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001731-0220STEERING WHEEL CAP£9.71 Add to
002712-0411NUT£2.69 Add to
003736-0242BELL WASHER£3.72 Add to
004731-0806ASTEERING WHEEL 731-0805 (OBSOLETE) (OBSOLETE)£96.46 Add to
005731-0559BELLOWS£23.69 Add to
006737-0280FITTING-GREASE£13.79 Add to
007741-0356BRG:STRG COL .890 ID x 1.36 OD£4.85 Add to
009783-04644BRACKET£15.63 Add to
010738-0141SHLD SCREW (OBSOLETE) (OBSOLETE) (OBSOLETE) (OBSOLETE)N/A
011710-1039HEX BOLT 3/8-24 x 1 INCH Lg£3.62 Add to
013750-0535SPACER£10.09 Add to
014736-0217H.L. WASHER (RED)£4.89 Add to
015710-0726HEX SCREW AB 5/16-12:0.750£3.19 Add to
016753-0655LENKSCHUBSTANGE 092.15.495£135.09 Add to
017783-0041B637BRACKET:BAR:PIVOT 783-0041B£84.90 Add to
018738-0527SCR:SHLDR:.498 DIA X 2.045£7.78 Add to
019712-0798HEX. NUT£7.61 Add to
01A731-0955CAP-STEERINF WHEEL W/SPRIG£20.16 Add to
020736-0169L. WASHER£2.89 Add to
021712-0411NUT£2.69 Add to
022683-0055637STEERING ARM£51.15 Add to
023710-0772HEX BOLT£11.63 Add to
024741-0487CFLANGE BEARING£6.18 Add to
025753-0642PIVOT BAR SERVICE KIT£112.65 Add to
02617585A637FRONT AXLE ASSY. L.H 3.64X5.34£111.42 Add to
027712-0241HEX NUT 3/8-24£2.79 Add to
028736-0169L. WASHER£2.89 Add to
029723-3018BALL JOINT£24.02 Add to
030747-0753TIE ROD KIT (OBSOLETE)N/A
031712-0711NUT£3.07 Add to
03217584A637FRONT AXLE RH 3.32 x 4.07£126.42 Add to
033634-0097B662OYSTER GRAY 788-0662£176.87 Add to
034634-0172A662RIM ASM:6.0 X 4.5 x .81 ID 634-0024£72.79 Add to
035741-0487CFLANGE BEARING£6.18 Add to
036736-0285FLAT WASHER£4.06 Add to
037731-0484AHUB CAP£5.05 Add to
038714-0470COTTER PIN£5.07 Add to
039736-0187FLAT WASHER£3.19 Add to
040726-0214PUSH CAP£5.36 Add to
042712-0446HEX JAM NUT 3/8-24 X .218£2.98 Add to
043710-0538HEX L BOLT£4.15 Add to
044736-0119LOCK WASHER 5/16£3.33 Add to
045736-0343WASHER-5/16 x 1.25£4.57 Add to
046750-0532SPACER (OBSOLETE)N/A
047712-0214HEX NUT£3.55 Add to
048736-0169L. WASHER£2.89 Add to
049712-0158NUT, HEX CENTER LOCK, 5/16-18£9.35 Add to
04A731-0806ASTEERING WHEEL 731-0805 (OBSOLETE) (OBSOLETE)£96.46 Add to
050736-0119LOCK WASHER 5/16£3.33 Add to
051717-0622CGEAR SEGMENT£39.29 Add to
052741-0225HEX FLANGE BEARING£4.92 Add to
053736-0187FLAT WASHER£3.19 Add to
054738-0743SHAFT-STEERING ASSY 650-0001 (OBSOLETE) (OBSOLETE)N/A
057710-0837OVAL SUNK SCREW£3.51 Add to
058736-0271WASHER£3.16 Add to
059736-0187FLAT WASHER£3.19 Add to
05A731-0954BELLOW STEERING COLUMN£20.36 Add to
060723-3018BALL JOINT£24.02 Add to
061736-0607WASH:LOCK:5/16 EXT TOOTH£3.31 Add to
063727-0425ASPRING CLIP£2.98 Add to
064736-0356BELL WASHER£3.95 Add to
065731-1291AENDCAP AXLE£10.11 Add to
066710-0459ATIE ROD BOLT£3.62 Add to
069731-1389TUBE-PLASTIC£14.15 Add to
070734-0255VALVE - TUBELESS AIR£7.02 Add to
071737-0211AFITTING-GREASE 737-0211£3.59 Add to
072737-0280FITTING-GREASE£13.79 Add to
073737-0212APLUG-GREASE FITTING 737-0212£3.31 Add to
074734-1731TYRE 15x6.00-6 NHS£123.31 Add to
075734-0298TIRE 13 X 5.00-6£126.72 Add to
076734-1421-0901TIRE ONLY 734-1421£120.60 Add to
26A683-0041A637AXLE BLACK£54.15 Add to
30A747-0861637ROD:TIE:NON-ADJ 21.72 LG 747-0861£19.25 Add to
32A683-0040ANO LONGER AVAILABLEN/A POA
33A634-0057WHEEL ASS'Y. COMP. (13" X 5" MODEL 669C & 669L)£177.68 Add to
33B634-0059662WHL:COMPL:15.0 X 6.0 X 6.0:BB 634-0059£153.83 Add to
33C634-0060-0674WHEEL ASS'Y. COMP. (13" X 6" W/BALL BEARING) 634-0060£346.50 Add to
34A634-0051NO LONGER AVAILABLEN/A POA
34B734-1227NO LONGER AVAILABLEN/A POA
35A741-0569BALL BEARING£18.91 Add to
37A734-0541FRONT WHEEL HUB CAP (CHROME--OPTIONAL)£67.78 Add to
37B734-1613HUBCAP 6" DIA OYSTER GRAY£23.09 Add to
37C734-1612HUB CAP, BEIGE£18.71 Add to
