Frame, Seat, Fuel tank

Parts list

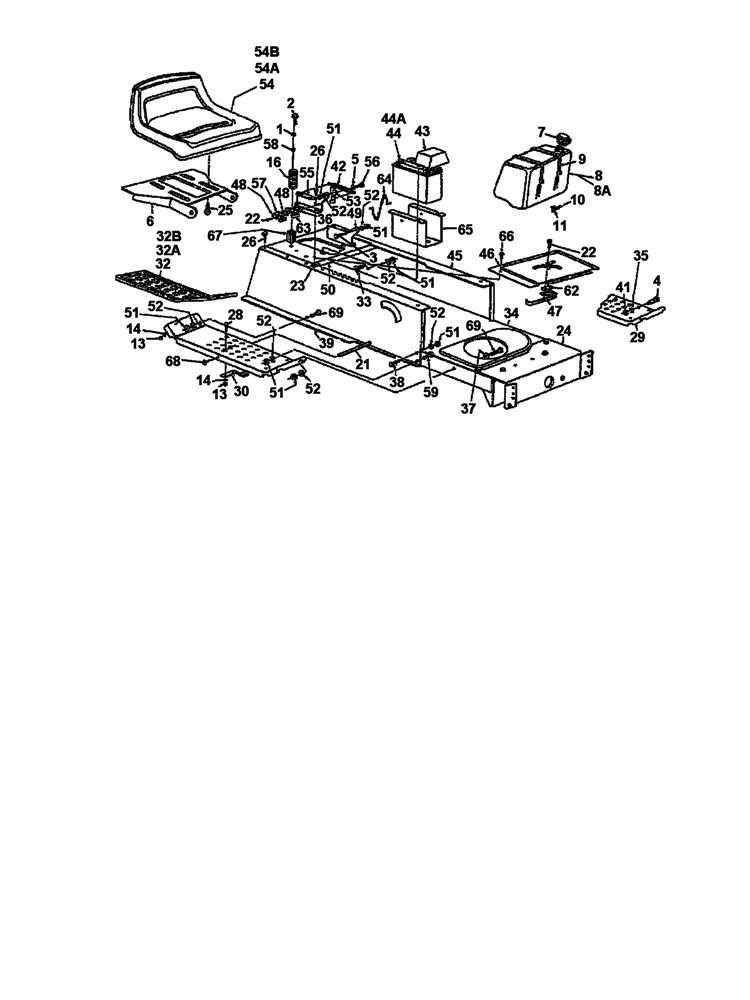

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	736-0159	WASH .349 ID X .879 OD X .063	£3.59	Add to
002	710-1208	SCREW:TT:5/16-18:3.500HXINDWSH	£5.00	Add to
003	738-0155	BOLT:SHLDR:.435 x.160:5/16-18	£7.50	Add to
004	738-0145	SCREW-SHLD	£7.81	Add to
005	736-0141	WASH:SPR:.440 x.750 x.015	£3.39	Add to
006	783-0039A	NO LONGER AVAILABLE	N/A	POA
007	751-0603A	CAP:FUEL	£9.01	Add to
008	751-0553	FUEL TANK	£80.00	Add to
009	726-0209	NO LONGER AVAILABLE	N/A	POA
010	751-10349-54	FUEL LINE HOSE BLACK	£25.38	Add to
011	726-0205	HOSE CLAMP 1/2 INCH DIA.	£3.44	Add to
013	712-0287	NUT HEX	£3.31	Add to
014	736-0329	L. WASHER	£3.26	Add to
016	732-0735	SPR:COMPRS:1.314 OD x 2.55 LG	£18.48	Add to
021	738-0526	RUNNING BOARD ROD .500 DIA X 2	£40.95	Add to
022	710-0227	SCR:AB:#8-18:0.500:HXINDWH	£3.07	Add to
023	726-0139	SPEED NUT 10Z U-TYPE	£3.39	Add to
024	783-0041B637	BRACKET:BAR:PIVOT 783-0041B	£84.90	Add to
025	710-0623	SCR:TT:3/8-16:.750 HXINDWSH	£6.30	Add to
026	710-0726	HEX SCREW AB 5/16-12:0.750	£3.19	Add to
028	710-0134	BOLT	£3.03	Add to
029	17770	RUNNING BOARD (R.H. & L.H.)	£961.30	Add to
030	761-0168D	BRACKET ASSY-BRAKE 761-0168B	£32.66	Add to
032	731-0909	PAD-LH FOOT	£31.52	Add to
033	710-0323	SCREW	£3.70	Add to
034	17619C	LOWER FRAME 17620B	£319.82	Add to
035	736-0169	L. WASHER	£2.89	Add to
036	726-0278	INSULATING PLATE	£3.20	Add to
037	736-0264	WASH:FLAT:.330 x.630x.0635	£3.59	Add to
038	710-3008	HEX BOLT	£3.03	Add to
039	783-0042D	UPPER FRAME RIGHT 783-0042A	£108.33	Add to
041	712-0798	HEX. NUT	£7.61	Add to
042	732-0581B	SPRG:EXTN:.75 OD X 5.31	£7.22	Add to
043	731-1200	USE 731-0891A	£13.65	Add to
044	EPB3117	BATTERY 12N14-3A (DRY)	£52.41	Add to
045	783-0043B	FRAME-UPPER LH 783-0043	£108.33	Add to
047	725-1643	SW:SPR:LONG	£11.69	Add to
048	726-0279	INSULATING PLATE	£3.20	Add to
049	17951A	SUPPORT-SEAT BRKT-LH 17951	£50.52	Add to
050	17953	HITCH PLATE	£141.21	Add to
051	712-3010	NUT 5/16 x 18	£2.77	Add to
052	736-0119	LOCK WASHER 5/16	£3.33	Add to
053	17239C	BRKT:LIFT:SEAT	N/A	POA
054	757-04107	SEAT	£187.38	Add to
055	17950A	BRACKET R.H. 17950	£28.82	Add to
056	738-3024	NO LONGER AVAILABLE	N/A	POA
057	725-1303	SW:OUTER SEAT SPRG	£3.26	Add to
058	722-0160	ELASTEMER BUSHING .930 OD X .5	£3.20	Add to
059	710-0650	SCREW	£3.58	Add to
062	726-0320	INSULATING PLATE	£2.97	Add to
063	725-1439	SW:INNER SEAT SPRG	£8.44	Add to
064	732-0674	BATTERY TRAY CLIP (OBSOLETE)	N/A
065	17952	BATTERY TRAY	£13.92	Add to
066	710-1388	SCREW	£3.23	Add to
067	748-0347	SPACER-SPRING	£13.05	Add to
068	710-1221	SCREW-PAN HD TAPP	£2.69	Add to
069	710-3008	HEX BOLT	£3.03	Add to
08A	751-0555B	TANK:FUEL:1.5 GAL	£80.00	Add to
32A	731-0910	PAD-RH FOOT	£42.25	Add to
32B	723-0422	PAD:FT:ABRASIVE TYPE	£16.30	Add to
44A	EPB3118	BATTERY Y50-N18L-A2 (OBSOLETE) (OBSOLETE)	N/A
54A	757-04107	SEAT	£187.38	Add to
54B	757-04109	SEAT BLACK HIGH BACK	£220.11	Add to
