Frame

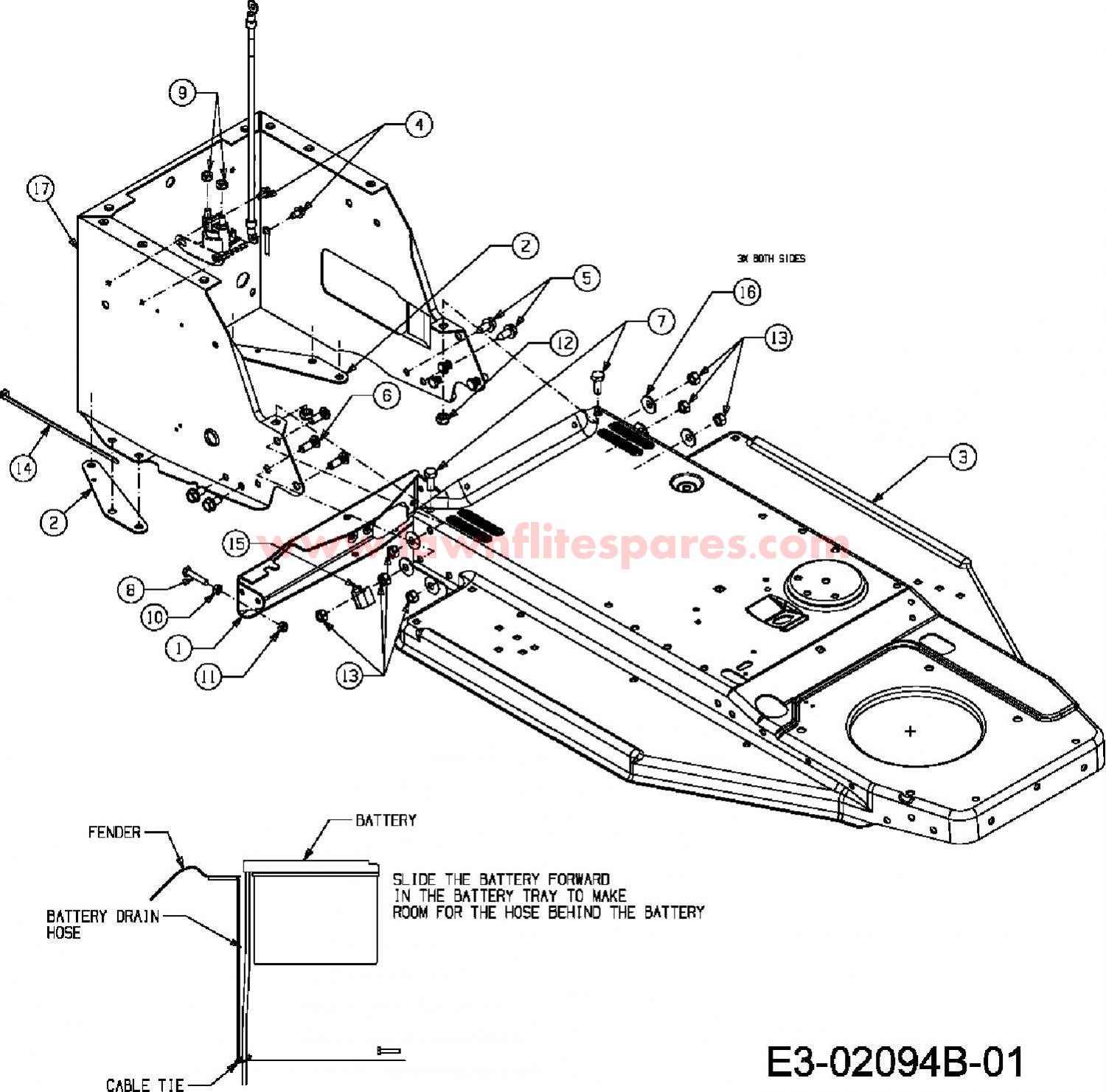

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	16654A637	NO LONGER AVAILABLE	N/A	POA
002	16659637	PLATE-REINFORCEMENT	£12.14	Add to
003	17588G637	FRM:LWR:400 SERIES	£216.47	Add to
004	710-0599	HEX TT SCREW 1/4-20	£4.95	Add to
005	710-0726	HEX SCREW AB 5/16-12:0.750	£3.19	Add to
006	710-1012	BOLT:RIBBED:HD 5/16-24 x.87"LG	£3.39	Add to
007	710-1681	HEX BOLT M8 X 20 DIN 933 (RED)	£3.24	Add to
008	710-1739	SCREW M10x60-8.8 DIN 931	£3.66	Add to
009	712-0271	NUT:SEMS:1/4-20	£3.03	Add to
010	712-0689	NUT:HEX:M6-1:DIN 934	£2.33	Add to
011	712-0691	HEX NUT M6 DIN 985	£2.66	Add to
012	712-0692	HEX NUT	£3.10	Add to
013	712-3057	NUT 5/16-24	£3.00	Add to
014	725-0157	NO LONGER AVAILABLE	N/A	POA
015	726-0354	CLAMP 16mm	£5.91	Add to
016	736-0242	BELL WASHER	£3.72	Add to
017	783-04796	FRAME:REAR	N/A	POA
