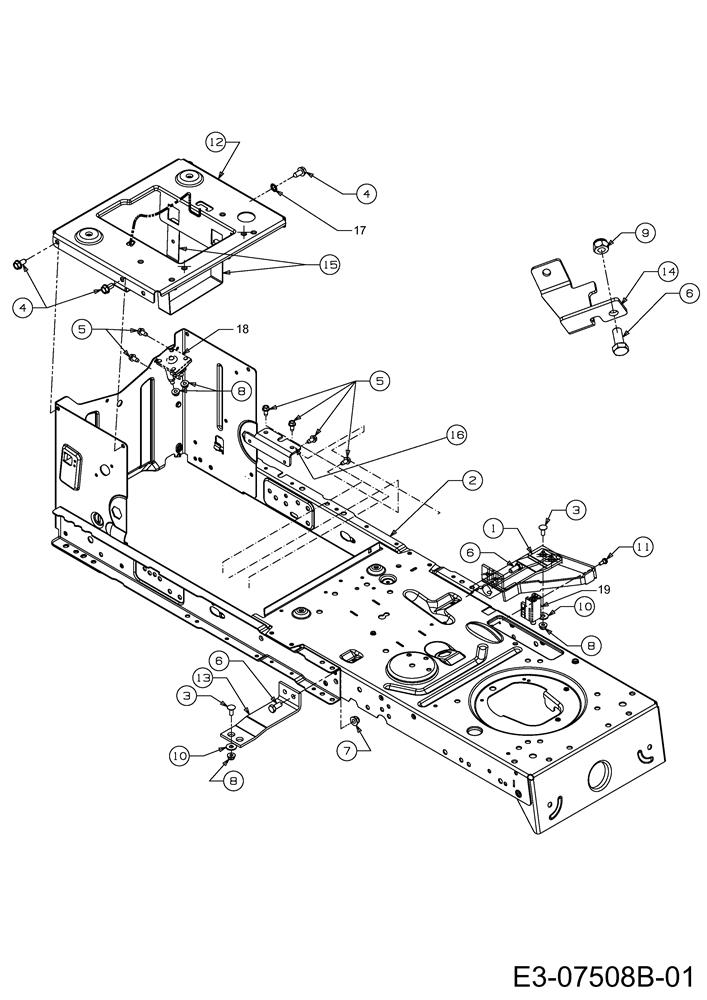

Frame

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	683-04195	BRKT ASM:SUPT	N/A	POA
002	683-04649A		N/A	POA
003	710-0134	BOLT	£3.03	Add to
004	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add to
005	710-0599	HEX TT SCREW 1/4-20	£4.95	Add to
006	710-3008	HEX BOLT	£3.03	Add to
007	712-04063	FLANGED NUT	£4.20	Add to
008	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add to
009	712-0429	NUT HEX.INS L NUT	£4.92	Add to
010	736-0173	WASH:FL:.28ID:.74OD:.063	£3.31	Add to
011	738-04237A	SCR:SHLDR:T:#10-32:.500	£3.44	Add to
012	783-04548D		N/A	POA
013	783-04637	BRKT:RUNBD:LT5	£19.12	Add to
014	783-04753	BRKT:SUPT:FRAME LT-5	N/A	POA
015	783-04869A	BRKT:BATT:LT-5	N/A	POA
016	783-05389A	BRKT:BRACE:FRM	N/A	POA
017	736-0670	WASHER 6,4 DIN 7349-St	£2.93	Add to
018	725-1426A	SOLENOID	£24.30	Add to
019	725-04363	SWITCH	£18.57	Add to
