Parts list

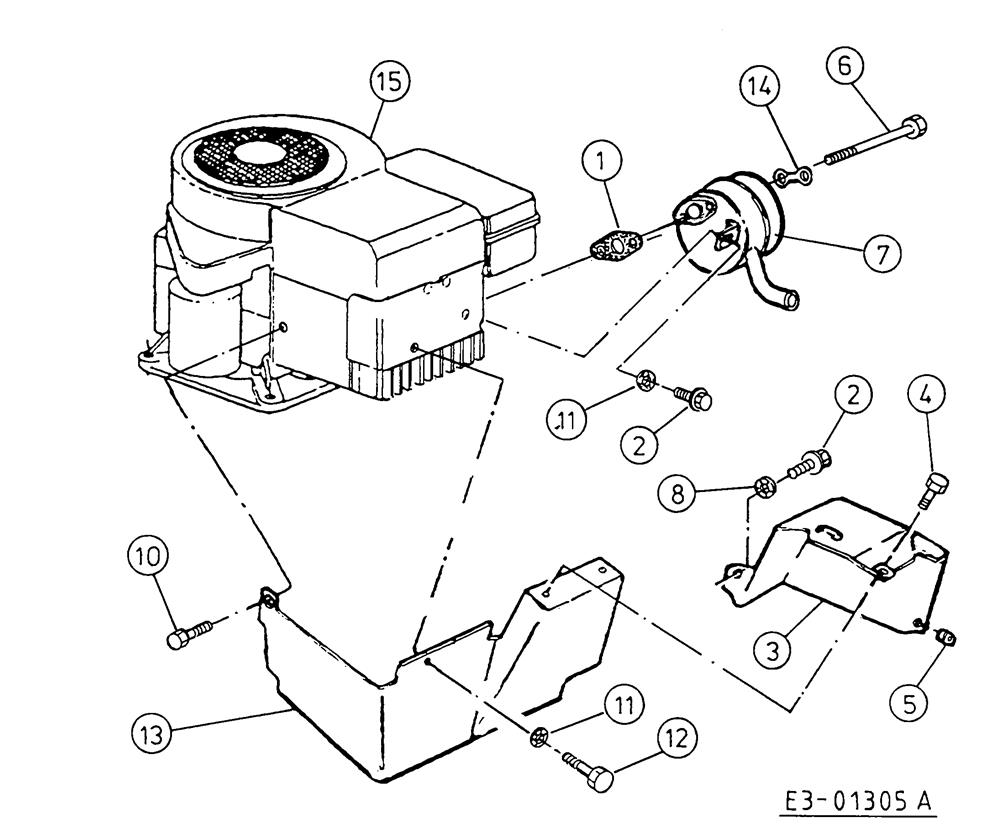

Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
Ref | No | Description | Price | |
---|
001 | 721-0208 | EXHAUST GSKT 10 & 11 HP | £5.80 | Add to |
002 | 710-0599 | HEX TT SCREW 1/4-20 | £4.95 | Add to |
003 | 683-0042A | ASSY:HEAT SHIELD (OBSOLETE) (OBSOLETE) | N/A | |
004 | 710-1268 | SCREW HEX WASHER HD TAPP | £3.26 | Add to |
005 | 712-0147 | NO LONGER AVAILABLE | N/A | POA |
006 | 738-0636 | SHD SCR. 7/16 DIA X 3 5/8 | £10.13 | Add to |
007 | 751-0465A | EXHAUST | £176.48 | Add to |
008 | 736-0175 | SPRING WASHER | £3.39 | Add to |
010 | 710-0323 | SCREW | £3.70 | Add to |
011 | 736-0175 | SPRING WASHER | £3.39 | Add to |
012 | 710-0599 | HEX TT SCREW 1/4-20 | £4.95 | Add to |
013 | 16936 | MUFFLER HEAT SHIELD-FRONT | £27.04 | Add to |
014 | 032.15.001 | STOP PLATE FOR HEX SCREW | N/A | POA |
015 | 752B1154E1 | 28T707-1154-E1B&S 13HPI/C DL12 | £1,231.18 | Add to |
