Parts list

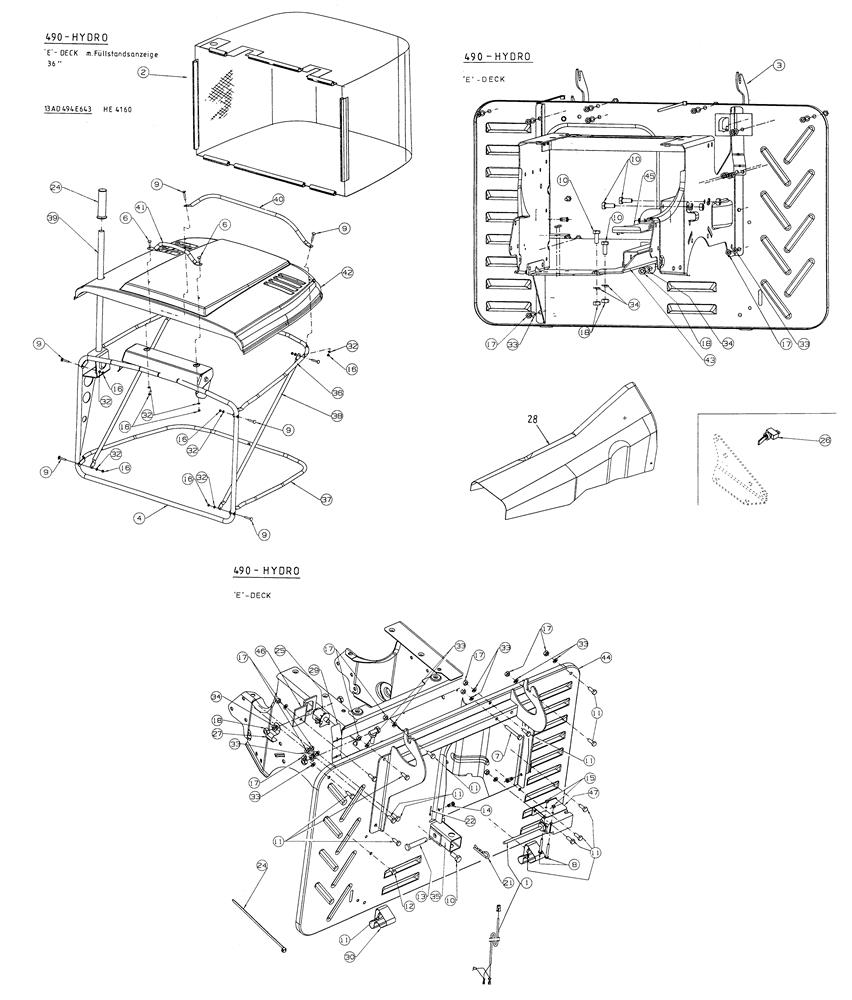

Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
Ref | No | Description | Price | |
---|
001 | 629-0955 | WIRE HARNESS :400er HYDRO | £109.54 | Add to |
002 | 664-0125A | GRASS BAG TISSUE | £239.03 | Add to |
003 | 683-0230A637 | SUPPORT CPL. | £105.00 | Add to |
004 | 683-0231637 | TUBE FRAME ASM WELDING PART 683-0231 | £224.73 | Add to |
005 | 710-0597 | HEX SEMS SCREW | £2.97 | Add to |
006 | 710-1360 | SCREW DIN 603 M5x16-8.8 | £3.05 | Add to |
007 | 710-1391 | Screw 21.1443.55 | £4.00 | Add to |
008 | 710-1397 | SCREW M4x35-4.8 DIN 7985 | £3.20 | Add to |
009 | 710-1612 | BOLT:CRG:5mm x 30.0 LG | £5.69 | Add to |
010 | 710-1681 | HEX BOLT M8 X 20 DIN 933 (RED) | £3.24 | Add to |
011 | 710-1690 | HHCS:M6-1:16.00 | £3.39 | Add to |
012 | 710-1691 | HEX. SCREW:M6X12 DIN 933 8.8 | £4.11 | Add to |
013 | 711-0679A | CLEVIS PIN | £6.70 | Add to |
014 | 711-0701 | CLEVIS PIN | £4.89 | Add to |
015 | 712-0636 | NUT: HEX: M4: DIN 985 | £4.25 | Add to |
016 | 712-0675 | NUT:HEX:M5 x.80:DIN 985 | £4.25 | Add to |
017 | 712-0689 | NUT:HEX:M6-1:DIN 934 | £2.33 | Add to |
018 | 712-0690 | NUT:HEX:M8-1.25 DIN 934 | £2.72 | Add to |
019 | 712-0691 | HEX NUT M6 DIN 985 | £2.66 | Add to |
020 | 712-3006 | NUT | £2.77 | Add to |
021 | 714-0147 | COTTER PIN | £3.51 | Add to |
022 | 714-0507 | COTTER PIN 3/32 DIA | £3.13 | Add to |
023 | 720-0301 | GRIP | £7.51 | Add to |
024 | 725-0157 | NO LONGER AVAILABLE | N/A | POA |
025 | 725-3166 | SWITCH SNAP MOUNT CLOSED/GREY | £15.69 | Add to |
026 | 725-1803 | SWITCH | £9.92 | Add to |
027 | 726-0354 | CLAMP 16mm | £5.91 | Add to |
028 | 931-0156 | NO LONGER AVAILABLE | N/A | POA |
029 | 732-0750A | SPACER: SWITCH ACTUATOR | £24.75 | Add to |
030 | 732-0838A | SPRING | £6.95 | Add to |
031 | 736-0329 | L. WASHER | £3.26 | Add to |
032 | 736-0602 | WASHER A 5,3 DIN 125 | £2.70 | Add to |
033 | 736-0648 | WASHER:LOCK:B6:DIN 127 | £2.44 | Add to |
034 | 736-0649A | WASHER:LOCK:B8:DIN 12 736-0649 | £2.70 | Add to |
035 | 749-0966637 | HITCH TUBE 400 749-0966 | £63.25 | Add to |
036 | 749-1009637 | NO LONGER AVAILABLE | N/A | POA |
037 | 749-1010637 | NO LONGER AVAILABLE | N/A | POA |
038 | 749-1011 | BRACE-VAR SP | £25.20 | Add to |
039 | 749-1012A | TUBE:LVR:BAG:LIFT (OBSOLETE) | N/A | |
040 | 749-1013 | HANDLE LONG | £34.10 | Add to |
041 | 749-1014637 | HANDLE SHORT 749-1014 | £24.91 | Add to |
042 | 783-0583 | HOOD:CATCHER | N/A | POA |
043 | 783-0821 | TOW BRACKET | £14.15 | Add to |
044 | 783-0858637 | PLT:RR DIS:36" 783-0858 | £62.14 | Add to |
045 | 783-0862 | NO LONGER AVAILABLE | N/A | POA |
046 | 783-0931 | ANGLE:BRKT:SAFETY SWITCH | N/A | POA |
047 | 783-0933-Z | BRACKET FILL LEVEL BAG 783-0933 | £21.37 | Add to |
