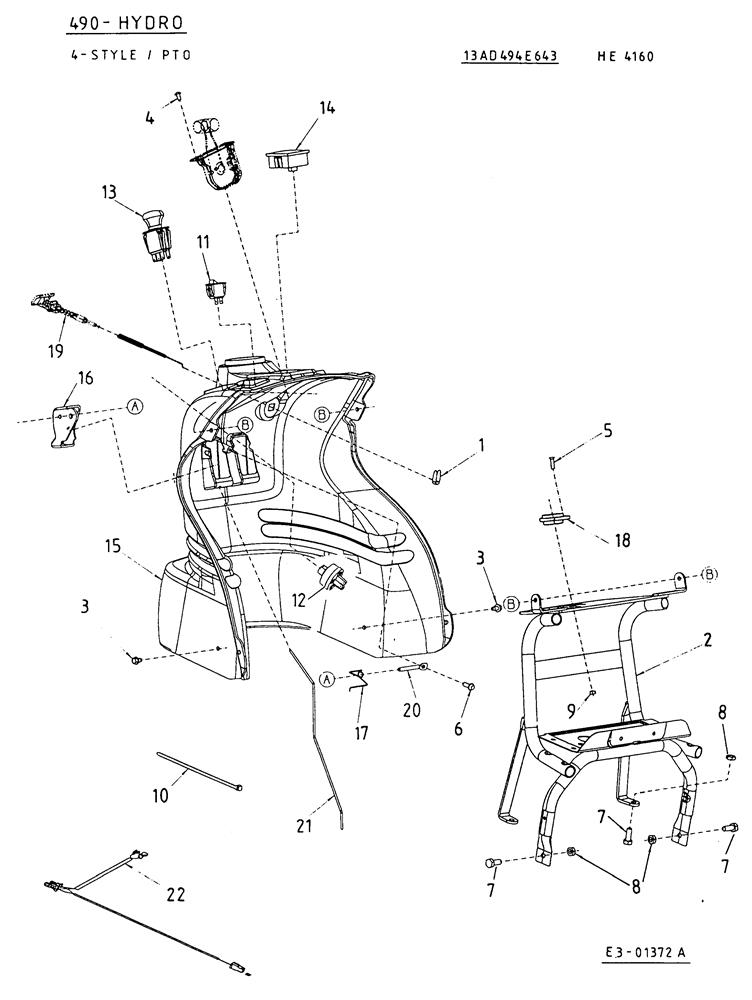

Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
Ref | No | Description | Price | |
---|
001 | 17782 | CHOKE CABLE RETAINER CLIP | £13.39 | Add to |
002 | 683-0333A665 | NO LONGER AVAILABLE | N/A | POA |
003 | 710-0599 | HEX TT SCREW 1/4-20 | £4.95 | Add to |
004 | 710-0779A | SELF TAP SCREW | £3.58 | Add to |
005 | 710-1393 | SCREW:M5X12 DIN 963:5.8 | £3.32 | Add to |
006 | 710-1394 | SREW:PLASTITE:KB 60X16 WN 1451 | £2.98 | Add to |
007 | 710-1681 | HEX BOLT M8 X 20 DIN 933 (RED) | £3.24 | Add to |
008 | 712-0634 | Nut 24.1426.19 | £3.70 | Add to |
009 | 712-0675 | NUT:HEX:M5 x.80:DIN 985 | £4.25 | Add to |
010 | 725-0157 | NO LONGER AVAILABLE | N/A | POA |
011 | 725-0634 | SW:ROCKER | £19.29 | Add to |
012 | 725-1396A | IGNITION SWITCH (6 PIN) | £23.81 | Add to |
013 | 725-1716A | SWITCH | £42.57 | Add to |
014 | 725-1742 | IND:MONITOR:LGT | £101.99 | Add to |
015 | 731-2161 | DASHBOARD 4 STY WITH PTO BLACK | £78.44 | Add to |
016 | 731-2150 | NO LONGER AVAILABLE | N/A | POA |
017 | 732-0893 | SPRING | £6.50 | Add to |
018 | 741-0501 | NO LONGER AVAILABLE | N/A | POA |
019 | 746-3021 | CHOKE CONTROL | £37.35 | Add to |
020 | 747-1043 | NO LONGER AVAILABLE | N/A | POA |
021 | 747-1044 | ROD (CRUISE CONTROL) | £14.34 | Add to |
022 | 813-04325 | NO LONGER AVAILABLE | N/A | POA |
