FG130_5900

Parts list

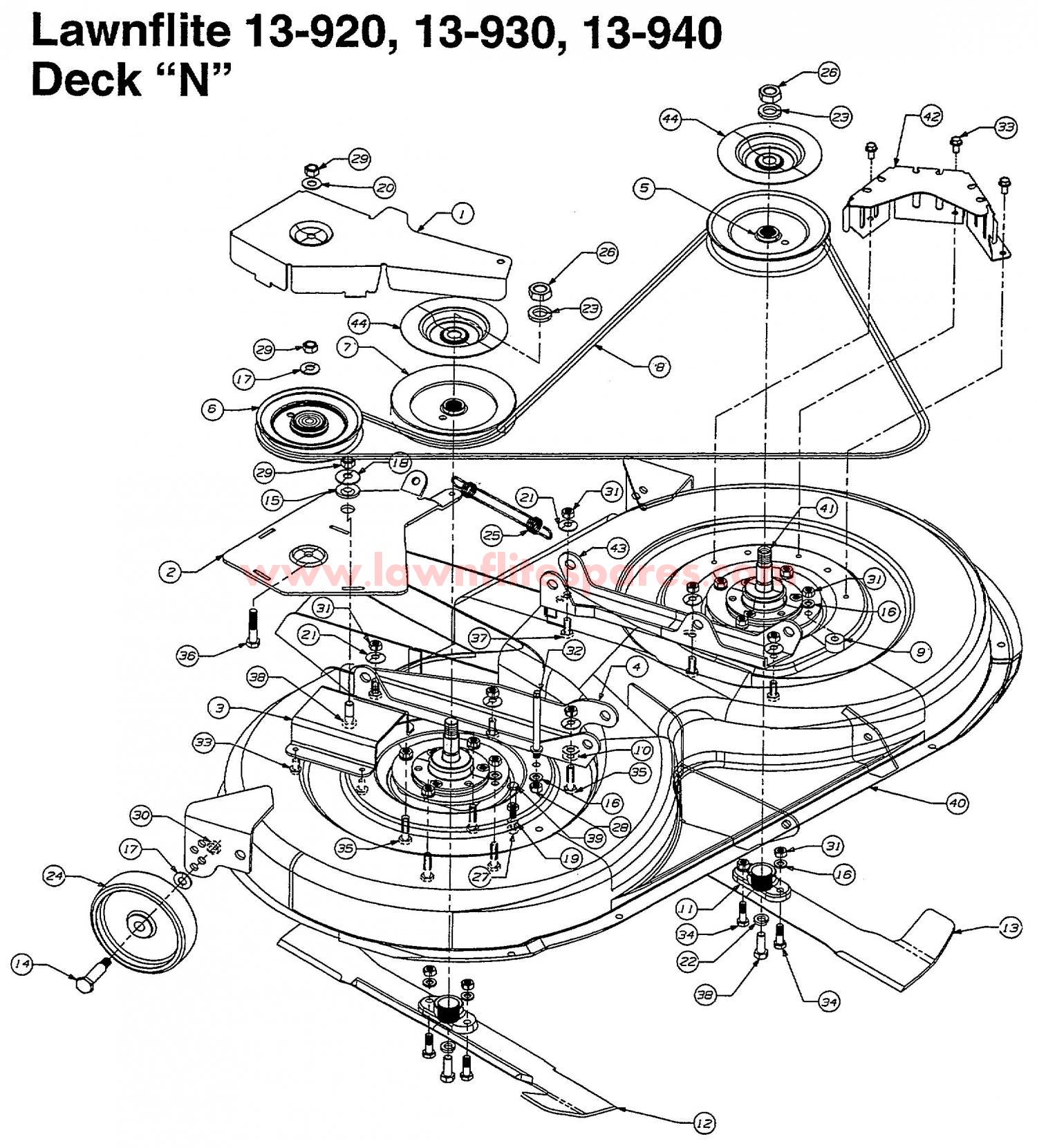

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	783-0199A-0637	NO LONGER AVAILABLE	N/A	POA
002	783-0198637	BRACKET ASSY-IDLER 783-0198	£72.51	Add to
003	783-0196	DISK:REINFORCEMENT	£26.06	Add to
004	783-0176	RAIL-HANGER DECK RH	£39.71	Add to
005	756-0617	PUL:DECK:5.0448 x .437 PINS	£61.69	Add to
006	756-0616	PUL:IDLR:5.0 DIA V-TYPE	£64.05	Add to
007	756-0615	NO LONGER AVAILABLE	N/A	POA
008	754-0443A	BLADE BELT	£113.93	Add to
009	750-0776	SPCR:.33 ID X .88 OD X .51 LG	£4.22	Add to
010	750-0258	SPCR:.315 X .75 X .375LG	£6.91	Add to
011	748-0300	BLADE ADAPTOR	£20.23	Add to
012	742-0608C	BLADE 20.5"	£44.63	Add to
013	742-0607C	BLADE 20.5"	£44.63	Add to
014	738-0373	AXLE BOLT	£6.84	Add to
015	738-0347	SPACER	£4.16	Add to
016	736-0119	LOCK WASHER 5/16	£3.33	Add to
017	736-0105	BELL WASHER	£3.33	Add to
018	736-0331	BELL WASHER	£3.95	Add to
019	736-0329	L. WASHER	£3.26	Add to
020	736-0300	WASHER	£2.81	Add to
021	736-0242	BELL WASHER	£3.72	Add to
022	736-0217	H.L. WASHER (RED)	£4.89	Add to
023	736-0158	WASHER:LOCK:5/8:SPLT:REG	£3.47	Add to
024	734-0973	WHEEL DECK 5in. DIA	£11.16	Add to
025	732-0478	EXT. SPRING DECK CONTROL	£16.63	Add to
026	712-0318	NUT	£3.94	Add to
027	712-3006	NUT	£2.77	Add to
028	712-3010	NUT 5/16 x 18	£2.77	Add to
029	712-0241	HEX NUT 3/8-24	£2.79	Add to
030	712-0181	HEX JAM L NUT	£3.69	Add to
031	712-3057	NUT 5/16-24	£3.00	Add to
032	711-0828	NO LONGER AVAILABLE	N/A	POA
033	710-0599	HEX TT SCREW 1/4-20	£4.95	Add to
034	710-0888	HEX SCR SPECIAL	£8.87	Add to
035	710-0672	HHCS:5/16-24:1.25:GR5:STD	£3.51	Add to
036	710-0539	HHCS:3/8-24:1.75:GR5:STD	£4.46	Add to
037	710-0157	HHCS:5/16-24:.75:GR5:STD	£6.99	Add to
038	710-1039	HEX BOLT 3/8-24 x 1 INCH Lg	£3.62	Add to
039	710-0136	Bolt, Hex 1/4-20 x 1-3/4" 1509-069	£3.58	Add to
040	683-0081B637	NO LONGER AVAILABLE	N/A	POA
041	918-0140	SPINDLE ASSY-BLADE 40" DECK (OBSOLETE) (OBSOLETE)	N/A
042	17664637	GUARD-BELT 17664	£41.16	Add to
043	17493B	NO LONGER AVAILABLE	N/A	POA
044	9322	BRAKE DISC (OBSOLETE)	N/A
