FG130_5600

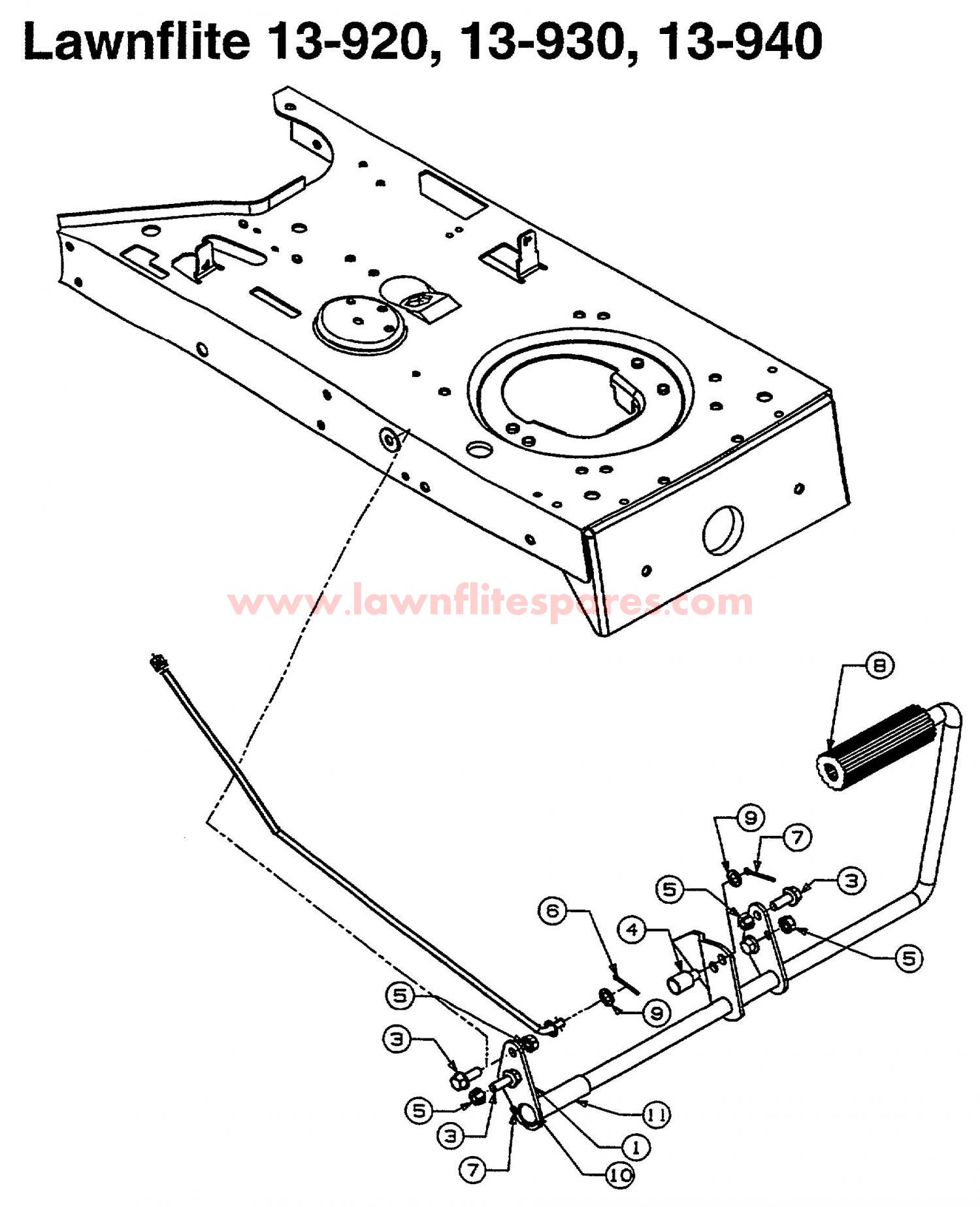

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	17860-0637	BRACKET-PEDAL 17860 (OBSOLETE)	N/A
002	683-0123	PED ASM: CLU BRAKE	£52.52	Add to
003	710-0650	SCREW	£3.58	Add to
004	711-0198	PIVOT BUSHING	£12.12	Add to
005	712-04063	FLANGED NUT	£4.20	Add to
006	714-0111	COTTER PIN	£3.20	Add to
007	717-0470	COTTER PIN 1/8" DIA. X 1.25" LG.	£412.82	Add to
008	735-0239A	FOOT PAD	£8.75	Add to
009	736-0140	WASH:FLAT:.385 x.62 x.063	£3.59	Add to
010	736-0256	WASHER:FL:.635 IDX.930 ODX.03	£3.20	Add to
011	750-0802	SPCR:.640 ID X .76 OD X2.63 LG	£3.20	Add to
