FG130_4900

Parts list

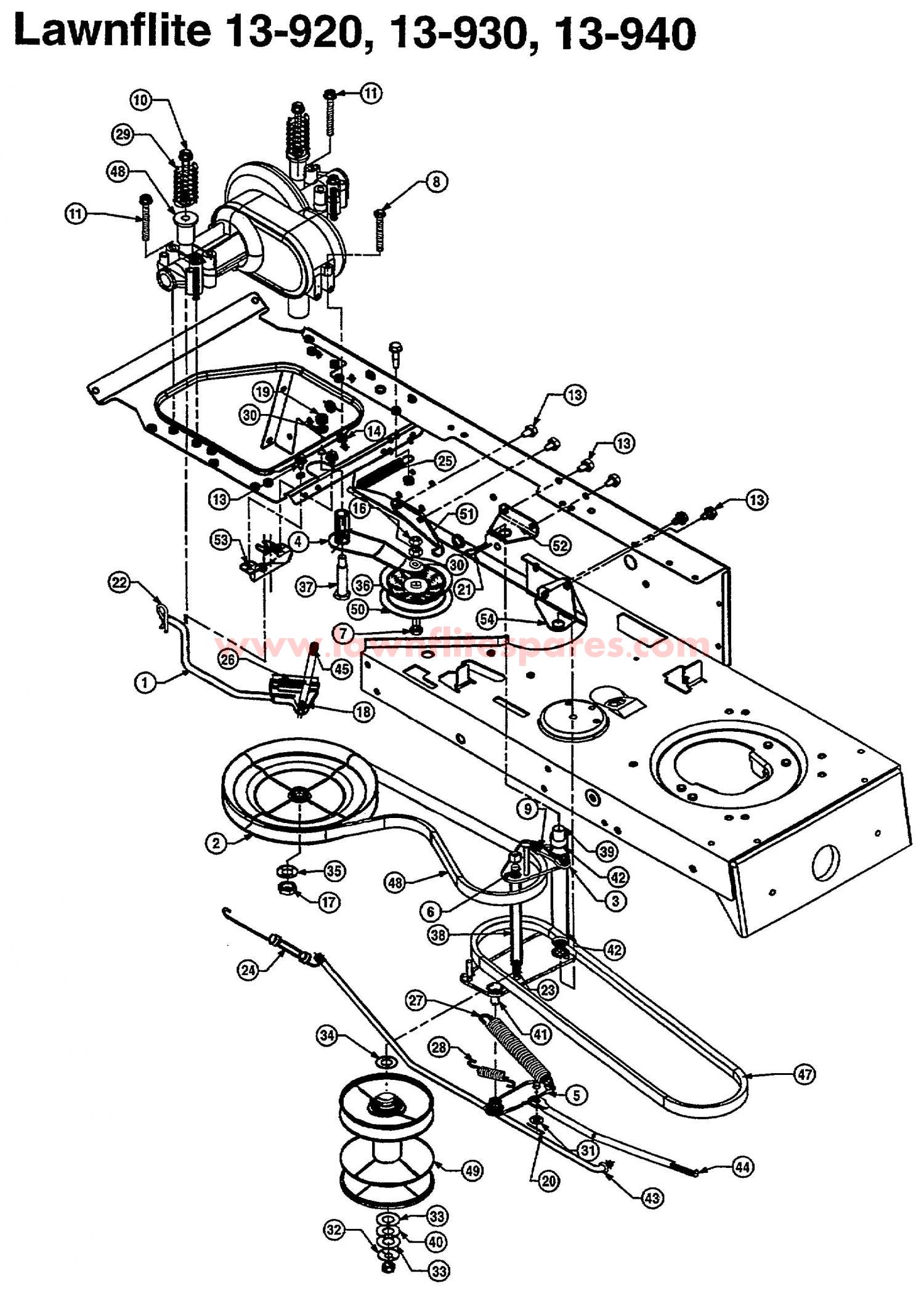

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	647-0017	LVR ASM: SHIFT	£54.15	Add to
002	656-0011	PULLEY	£67.71	Add to
003	683-0076637	BRACKET-VAR SPD ASSY 683-0076	£66.52	Add to
004	683-0077	ASM:BELT IDLER BRK	£29.55	Add to
005	683-0090	TORQUE BRACKET ASSY. 683-0090-Z	£16.29	Add to
006	683-0100	NO LONGER AVAILABLE	N/A	POA
007	710-0331	HHCS:3/8-24:2.25:GR5:STD	£6.01	Add to
008	710-0395	SCRE.HHCS:5/16-18:2.25:GR2:STD	£4.62	Add to
009	710-0599	HEX TT SCREW 1/4-20	£4.60	Add to
010	710-1035	SCREW:TTSEMS3/8-16:2.500HXLWSH	£7.13	Add to
011	710-1135	SCR:TT:5/16-18:2.500:HXINDWSH	£6.79	Add to
012	710-1194	SCREW 10/24 x 1.00 DX60 CATCHER	£4.95	Add to
013	710-0607	SELF TAP SCREW	£4.71	Add to
014	712-0158	NUT, HEX CENTER LOCK, 5/16-18	£9.35	Add to
015	712-0241	HEX NUT 3/8-24	£2.79	Add to
016	712-0446	HEX JAM NUT 3/8-24 X .218	£2.98	Add to
017	712-3035	NUT:JAM:9/16-18:GRADE 5	£3.59	Add to
018	712-0998	NUT, HEX CENTER LOCK, #10-24	£2.44	Add to
019	712-3017	NUT:JAM:3/8-16:GR5	£2.97	Add to
020	714-0111	COTTER PIN	£3.20	Add to
021	714-0147	COTTER PIN	£3.51	Add to
022	714-0149B	COTTER PIN	£3.58	Add to
024	732-0413	EXT SPRING	£12.22	Add to
025	732-0470A	EXTENSION SPRING	£11.07	Add to
026	732-0499	COMPRESSION SPRING	£4.38	Add to
027	732-0556	SPRING EXTENSION 94 X 7.57 LG	£21.82	Add to
028	732-0568	SPRING EXTENSION	£5.45	Add to
029	732-0735	SPR:COMPRS:1.314 OD x 2.55 LG	£18.48	Add to
030	736-0169	L. WASHER	£2.89	Add to
031	736-0275	WASH:FLAT:.344 x .688 x.065	£3.07	Add to
032	736-0331	BELL WASHER	£3.95	Add to
033	736-0355	WASHER	£3.19	Add to
034	736-0414	WASHER	£5.00	Add to
035	736-0427	BELL:WASH:.567 x 1.125 x .06	£3.31	Add to
036	736-3010	WASH:FL:.407X.812X.135:HD	£2.85	Add to
037	738-0509	SHLD:SCR:.500 X 1.825	£20.18	Add to
038	738-0900	SHF:.562 DIA X 6.92	£61.91	Add to
039	738-0901	SHF:.625 DIA X 8.62	£15.06	Add to
040	741-0405	NO LONGER AVAILABLE	N/A	POA
041	741-0419	FLANGE BEARING (OBSOLETE)	N/A
042	741-0495	FLANGED BRG.	£8.22	Add to
043	747-0609	NO LONGER AVAILABLE	N/A	POA
044	747-0611	NO LONGER AVAILABLE	N/A	POA
045	747-0915	BOLT-BELT COVER	£10.74	Add to
046	750-0983	SPCR:STEP:.385 ID X 1.460 LONG	£7.41	Add to
047	754-0370	VARIABLE SPEED BELT	£47.70	Add to
048	754-0444	TRANSMISSION BELT	£47.70	Add to
049	756-0610	PUL:SPD:5.06 DIA X 5.69 LG VAR	£304.73	Add to
050	756-0643A	PUL IDLER FLAT 3.12	£27.94	Add to
051	783-0189637	NO LONGER AVAILABLE	N/A	POA
052	784-0205A	TINE	£251.06	Add to
053	783-0207637	NO LONGER AVAILABLE	N/A	POA
054	783-0215A637	NO LONGER AVAILABLE	N/A	POA
