FG130_4600

Parts list

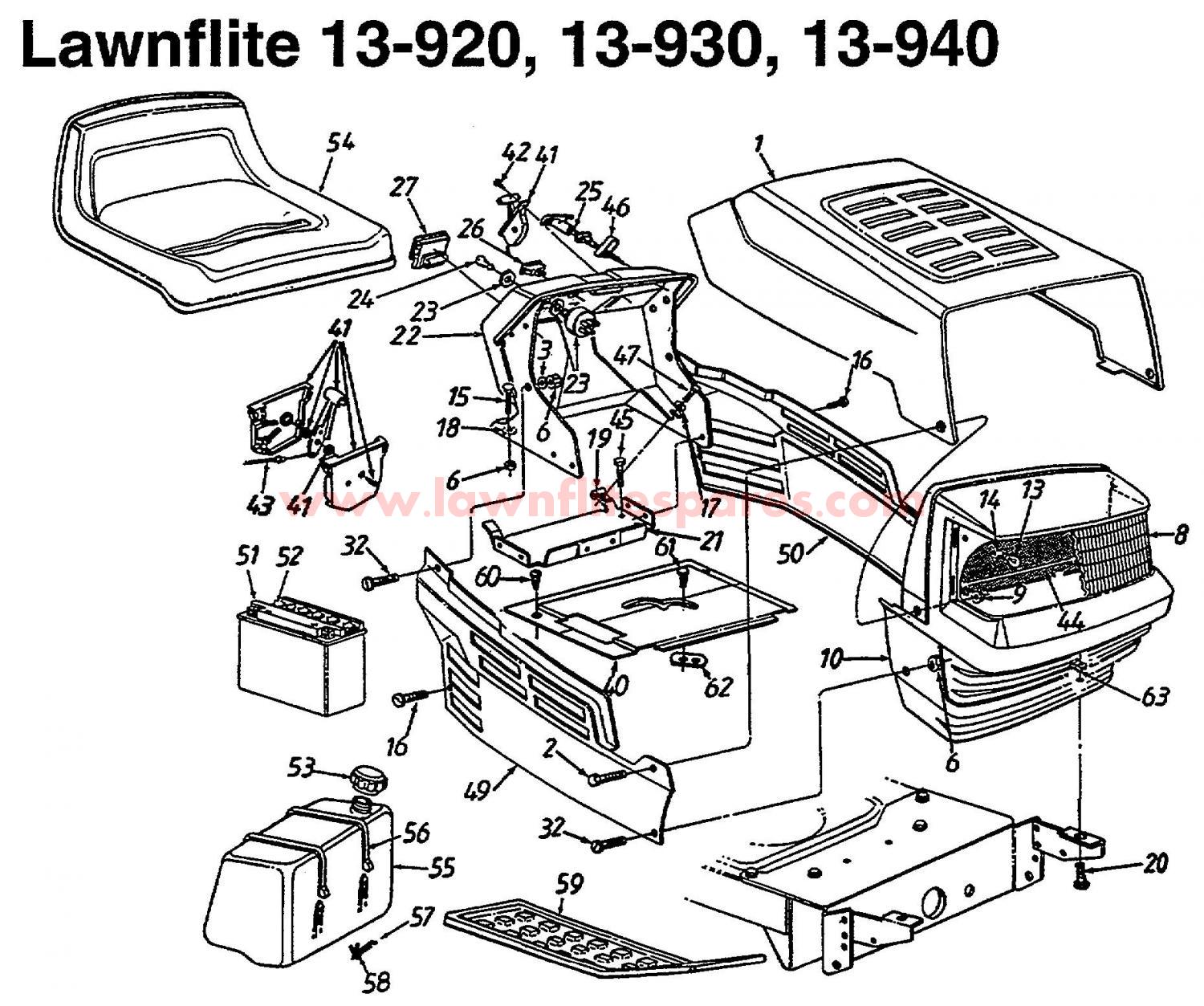

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
746-0634THROTTLE CABLE L= 35"£17.09 Add to
746-3021CHOKE CONTROL£37.35 Add to
731-0910PAD-RH FOOT£42.25 Add to
00-629-0308HARN ASM:600/700:9.5" HDLT£14.71 Add to
001783-0250-0638HOOD:STY'0'W/LOUVERS-FORME 783-0250£177.22 Add to
002738-0952ASHOULD. SCREW .375x.125:1/4-20£3.70 Add to
003736-0342FLAT WASHER£2.97 Add to
006712-0271NUT:SEMS:1/4-20£3.03 Add to
008731-1767HEADLIGHT LENS WITH LOGO£78.15 Add to
009712-3027LOCK NUT£2.79 Add to
010631-04200GRILL ASM:0 STY:w/o ICON LT-5£259.30 Add to
013725-0963BULB£7.18 Add to
014725-1649SOCKET HEADLIGHT£6.92 Add to
015710-0703SCR:CRG:1/4-20:.75:GR5£3.07 Add to
016710-0599HEX TT SCREW 1/4-20£4.95 Add to
017736-0173WASH:FL:.28ID:.74OD:.063£3.31 Add to
018726-0233NUT:PUSH:.25 ID X .50 OD£3.58 Add to
019712-0185ZIP TWIST FASTENER (FOR Ò 1/4£4.62 Add to
020710-3008HEX BOLT£3.03 Add to
02117632A-0637BRKT:BAT:SUPT 17632A£24.41 Add to
022731-1096BInstrument panel£92.72 Add to
023725-1396AIGNITION SWITCH (6 PIN)£23.81 Add to
024725-0201IGNITION KEY£6.47 Add to
025746-0616ACHOKE CONTROL CABLE ASSY£12.71 Add to
026725-0634SW:ROCKER£19.29 Add to
027725-0925AMMETER 620£30.37 Add to
032710-0924TRUSS SCREW (OBSOLETE) (OBSOLETE) (OBSOLETE)N/A
040783-0212A637COVER SHIFT 783-0212A£32.35 Add to
041931-0823ATHROTTLE CONTROL BOX ASSY£25.49 Add to
042710-0779ASELF TAP SCREW£3.58 Add to
043746-0638CABLE-THROTTLE£11.28 Add to
044777-9206LBL:GRILL:"0" STYLE£23.21 Add to
045710-0603SCR:B:5/16-12:0.500:HXINDWSH£11.34 Add to
04617782CHOKE CABLE RETAINER CLIP£13.39 Add to
047710-0642SCREW-HEX HD TAP 4-20 x 7.5£3.68 Add to
048736-0270BELL WASHER£3.91 Add to
049783-0150APANEL, SIDE 7CU FT 783-0150£108.34 Add to
050783-0151END PLATE£103.27 Add to
051EPB3118BATTERY Y50-N18L-A2 (OBSOLETE) (OBSOLETE)N/A
052759-3750NO LONGER AVAILABLEN/A POA
053751-0603ACAP:FUEL£9.01 Add to
054757-04109SEAT BLACK HIGH BACK£220.11 Add to
055751-0555BTANK:FUEL:1.5 GAL£80.00 Add to
056726-0209NO LONGER AVAILABLEN/A POA
057751-10349-54FUEL LINE HOSE BLACK£25.38 Add to
058726-0205HOSE CLAMP 1/2 INCH DIA.£3.44 Add to
059731-0909PAD-LH FOOT£31.52 Add to
060710-1388SCREW£3.23 Add to
061710-0227SCR:AB:#8-18:0.500:HXINDWH£3.07 Add to
062726-0320INSULATING PLATE£2.97 Add to
063726-0211U NUT£3.96 Add to
