FG130_4500

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

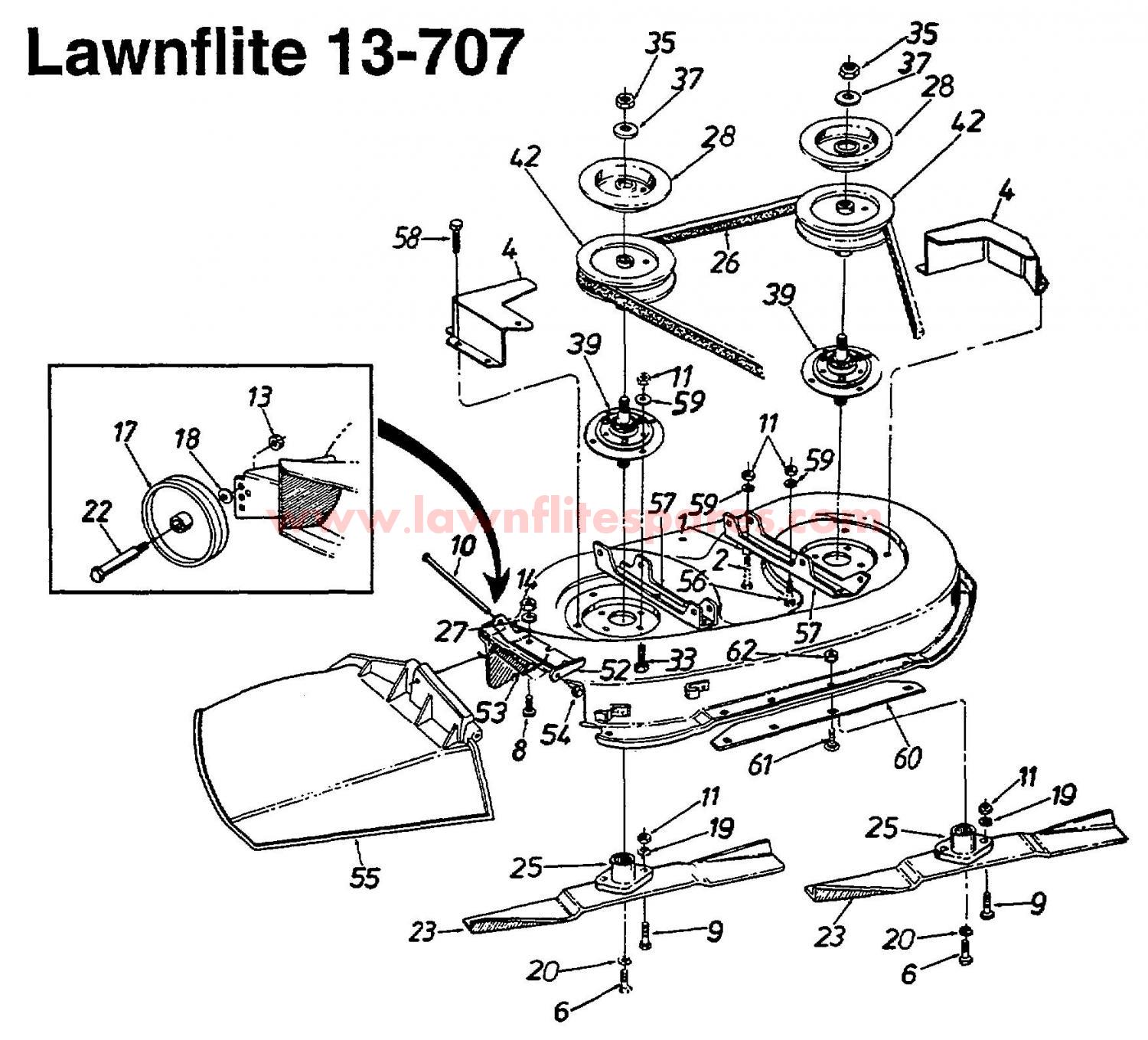

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
	742-0504A	BLADE-19.38IN-EXPORT 742-0504	£36.60	Add to
001	750-0776	SPCR:.33 ID X .88 OD X .51 LG	£4.22	Add to
002	710-0672	HHCS:5/16-24:1.25:GR5:STD	£3.51	Add to
004	17967	USE 16029	£74.25	Add to
006	710-1039	HEX BOLT 3/8-24 x 1 INCH Lg	£3.62	Add to
008	710-0751	BOLT 069	£3.39	Add to
009	710-0888	HEX SCR SPECIAL	£8.87	Add to
010	711-0792	HINGE PIN	£12.33	Add to
011	712-3057	NUT 5/16-24	£3.00	Add to
013	712-0181	HEX JAM L NUT	£3.69	Add to
014	712-0287	NUT HEX	£3.31	Add to
017	734-0973	WHEEL DECK 5in. DIA	£11.16	Add to
018	736-0105	BELL WASHER	£3.33	Add to
019	736-0119	LOCK WASHER 5/16	£3.33	Add to
020	736-0217	H.L. WASHER (RED)	£4.89	Add to
022	738-0373	AXLE BOLT	£6.84	Add to
023	742-0473A	BLADE 19.88 INCH	£29.41	Add to
025	748-0300	BLADE ADAPTOR	£20.23	Add to
026	754-0427	V BELT 70"	£60.86	Add to
027	736-0270	BELL WASHER	£3.91	Add to
028	9322	BRAKE DISC (OBSOLETE)	N/A
033	710-0157	HHCS:5/16-24:.75:GR5:STD	£6.99	Add to
035	712-0318	NUT	£3.94	Add to
037	736-0158	WASHER:LOCK:5/8:SPLT:REG	£3.47	Add to
039	753-05319	KIT SPDL 38 & 42 INCH	£87.85	Add to
042	756-0556	PULLEY	£45.85	Add to
052	703-1693A	CONNECTING PLATE 703-1693	£27.59	Add to
053	732-0602A	SPRING	£5.20	Add to
054	726-0106	CAP SPEED NUT	£3.33	Add to
055	631-0220B	CHUTE ASSY	£35.56	Add to
056	710-0157	HHCS:5/16-24:.75:GR5:STD	£6.99	Add to
057	17493B	NO LONGER AVAILABLE	N/A	POA
058	710-0599	HEX TT SCREW 1/4-20	£4.95	Add to
059	736-0242	BELL WASHER	£3.72	Add to
060	17863-0637	NO LONGER AVAILABLE	N/A	POA
061	710-0167	SCR:CRG:1/4-20:.50:	£2.97	Add to
062	712-0271	NUT:SEMS:1/4-20	£3.03	Add to
