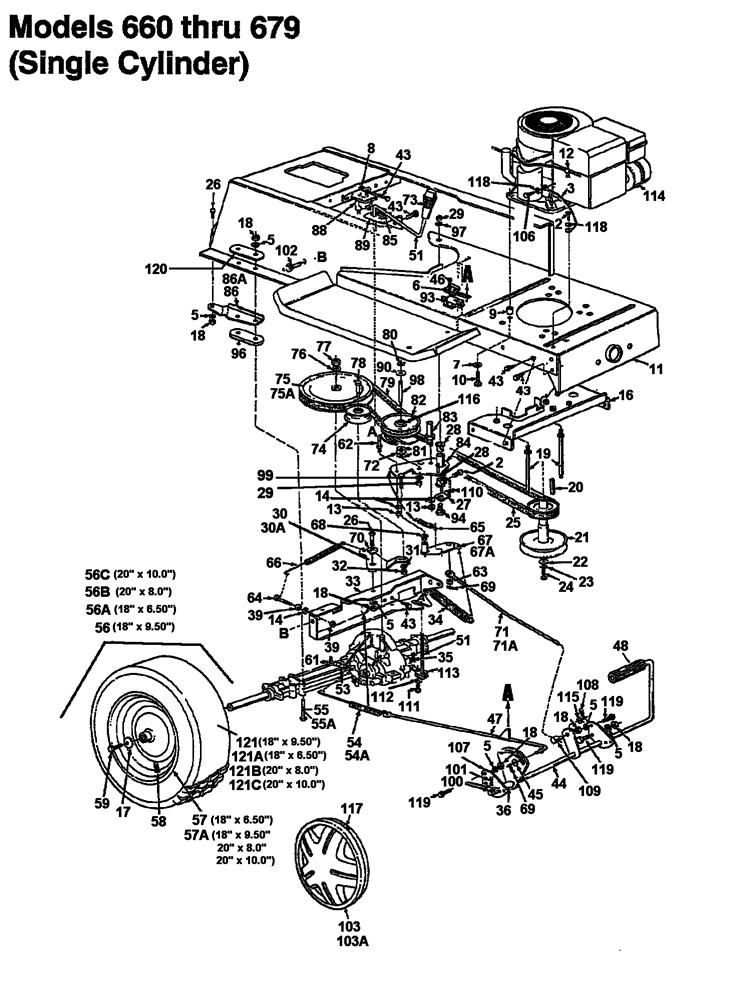

Drive system, Engine pulley, Pedal, Rear wheels

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	710-0726	HEX SCREW AB 5/16-12:0.750	£3.19	Add to
003	725-0980	WIRE	£10.61	Add to
005	736-0119	LOCK WASHER 5/16	£3.33	Add to
006	17962	PLT:SW	£4.66	Add to
007	736-0247	F.I. WASH	£8.70	Add to
008	736-0222	NO LONGER AVAILABLE	N/A	POA
009	750-0777	NO LONGER AVAILABLE	N/A	POA
010	710-1007	SCREW HEX HD TAP	£4.14	Add to
011	17619C	LOWER FRAME 17620B	£319.82	Add to
012	726-0235	SPEED CLIP	£4.91	Add to
013	712-0287	NUT HEX	£3.31	Add to
014	736-0329	L. WASHER	£3.26	Add to
016	17893	BELT GUARD BRKT. ASS'Y.	£1,050.05	Add to
017	736-0242	BELL WASHER	£3.72	Add to
018	712-3010	NUT 5/16 x 18	£2.77	Add to
019	711-1239	PIN	£5.00	Add to
020	714-0114	SQUARE KEY	£5.26	Add to
021	753-0635	NO LONGER AVAILABLE	N/A	POA
022	736-0322	FI-WASH	£8.68	Add to
023	736-0171	WASHER	£2.93	Add to
024	710-0757	HEX SCREW	£7.96	Add to
025	754-0280A	BELT	£70.95	Add to
026	710-3008	HEX BOLT	£3.03	Add to
027	17963	BRACKET-BRG SHAFT	£7.19	Add to
028	741-0591	FLANGE BEARING	£3.44	Add to
029	712-0241	HEX NUT 3/8-24	£2.79	Add to
030	176431	SNAP ROD	£7.54	Add to
031	736-0169	L. WASHER	£2.89	Add to
032	712-0241	HEX NUT 3/8-24	£2.79	Add to
033	17629A	BRACKET-TRANS SUP	£56.95	Add to
034	732-0556	SPRING EXTENSION 94 X 7.57 LG	£21.82	Add to
035	714-0149B	COTTER PIN	£3.58	Add to
036	750-0802	SPCR:.640 ID X .76 OD X2.63 LG	£3.20	Add to
039	712-0138	NUT	£3.03	Add to
043	710-0599	HEX TT SCREW 1/4-20	£4.95	Add to
044	17715B-0637	PEDAL ASSY-CLUTCH 17715B	£82.90	Add to
045	736-0264	WASH:FLAT:.330 x.630x.0635	£3.59	Add to
046	710-1388	SCREW	£3.23	Add to
047	17686A	BRAKE ROD ASS'Y. 17686	£26.29	Add to
048	735-0239A	FOOT PAD	£8.75	Add to
051	17705	ROD:ASSY-SHIFT 375 DIA	£28.06	Add to
053	732-0264	EXTENSION SPRING	£10.47	Add to
054	732-0413	EXT SPRING	£12.22	Add to
055	710-0189	HHCS:5/16-18:3.00:GR5:STD	£4.62	Add to
056	734-0817662	WHL COMP:18x9.5 734-0817	£225.94	Add to
057	634-04174662	RIM ASM-8.0X5.38 w/VALVE	£78.95	Add to
058	734-0255	VALVE - TUBELESS AIR	£7.02	Add to
059	710-0627	HEX SCREW	£3.32	Add to
061	732-0722A	SPRING:BRAKE RETURN ANCHOR	£8.39	Add to
062	711-1000	BELT KEEPER	£9.71	Add to
063	736-0275	WASH:FLAT:.344 x .688 x.065	£3.07	Add to
064	710-0428	NO LONGER AVAILABLE	N/A	POA
065	732-0568	SPRING EXTENSION	£5.45	Add to
066	732-0384	EXT SPRING	£15.79	Add to
067	16554A-Z	BRKT:VAR.SPD.TORQ ASSY-PAI 16554A	£26.52	Add to
068	741-0419	FLANGE BEARING (OBSOLETE)	N/A
069	714-0111	COTTER PIN	£3.20	Add to
070	748-0234	SHOULDER SPACER	£5.43	Add to
071	747-0530A	LINK-SPEED CONTROL	£22.29	Add to
072	741-0405	NO LONGER AVAILABLE	N/A	POA
073	720-0232	KNOB:SHFT:1.60 OD X 1.56	£6.72	Add to
074	756-0643A	PUL IDLER FLAT 3.12	£27.94	Add to
075	656-0005	PULLEY	£67.94	Add to
076	736-0427	BELL:WASH:.567 x 1.125 x .06	£3.31	Add to
077	712-3035	NUT:JAM:9/16-18:GRADE 5	£3.59	Add to
078	710-0539	HHCS:3/8-24:1.75:GR5:STD	£4.46	Add to
079	754-0370	VARIABLE SPEED BELT	£47.70	Add to
080	716-0114	RING:RET:.56 DIA SHAFT	£3.58	Add to
081	736-0355	WASHER	£3.19	Add to
082	717-0800A	PUL:DR:VARI SPD 5.06 DIA	£236.50	Add to
083	710-1223	NO LONGER AVAILABLE	N/A	POA
084	16354B	NO LONGER AVAILABLE	N/A	POA
085	732-0525	COMP SPRING CLIP	£3.13	Add to
086	17668A	BRKT:AXLE:RH 17668	£48.47	Add to
088	725-1426A	SOLENOID	£24.30	Add to
089	17630	GUIDE BRACKET, FRONT	£9.58	Add to
090	736-0414	WASHER	£5.00	Add to
093	725-3169A	SWITCH-SAFETY	N/A	POA
094	738-0755	NO LONGER AVAILABLE	N/A	POA
096	748-0334	TRANSAXLE SPACER .68	£6.32	Add to
097	736-0105	BELL WASHER	£3.33	Add to
098	738-0569	SHAFT V. PULLEY	£39.36	Add to
099	736-0331	BELL WASHER	£3.95	Add to
100	736-0256	WASHER:FL:.635 IDX.930 ODX.03	£3.20	Add to
101	714-0470	COTTER PIN	£5.07	Add to
102	710-0604A	SCREW	£3.62	Add to
103	734-1615	HUBCAP 8" DIA OYSTER GRAY	£28.68	Add to
103A	734-1614	HUB CAP BEIGE	£25.27	Add to
106	710-0323	SCREW	£3.70	Add to
107	17860-0637	BRACKET-PEDAL 17860 (OBSOLETE)	N/A
108	714-0470	COTTER PIN	£5.07	Add to
109	711-0198	PIVOT BUSHING	£12.12	Add to
110	710-0376	SCREW HEX CAP 5/16	£9.02	Add to
111	710-0195	HEX BOLT	£2.93	Add to
112	736-0270	BELL WASHER	£3.91	Add to
113	17707	NO LONGER AVAILABLE	N/A	POA
115	736-0140	WASH:FLAT:.385 x.62 x.063	£3.59	Add to
116	741-0404	BRG:NDL:.5625 IDx.7500x.5550	£34.91	Add to
117	727-0425A	SPRING CLIP	£2.98	Add to
118	736-0607	WASH:LOCK:5/16 EXT TOOTH	£3.31	Add to
119	710-0650	SCREW	£3.58	Add to
120	17840	TRANSAXLE BRACKET REINFORCE	£14.44	Add to
121	734-0448	TIRE:18 X 9.5	£140.76	Add to
121A	734-0294	TIRE:18 X 6.5 X 8 SQ SH	£125.82	Add to
121B	734-1730	TIRE-TUBELESS 2 734-1596	£159.43	Add to
121C	734-1065	WHEEL ASS'Y. COMP. TIRE ONLY - 20"X10.0"	£162.94	Add to
30A	17694A	NO LONGER AVAILABLE	N/A	POA
54A	732-0642	NO LONGER AVAILABLE	N/A	POA
55A	710-1068	NO LONGER AVAILABLE	N/A	POA
56A	734-0592-G	WHL:COMP:18 x 6.5 7	£184.03	Add to
56B	734-1675	WHEEL ASSY W/TIRE	£279.06	Add to
56C	111.11.114	NO LONGER AVAILABLE	N/A	POA
57A	634-04369662	RIM ASM:COLOUR CUB BEIGE 634-0070	£105.87	Add to
67A	16352A	NO LONGER AVAILABLE	N/A	POA
71A	747-0512	SPEED CONTROL LINK (548)	£23.72	Add to
75A	656-0004	PULLEY	£94.36	Add to
86A	17669A	BRKT:AXLE:LH 17669 (OBSOLETE) (OBSOLETE)	N/A
