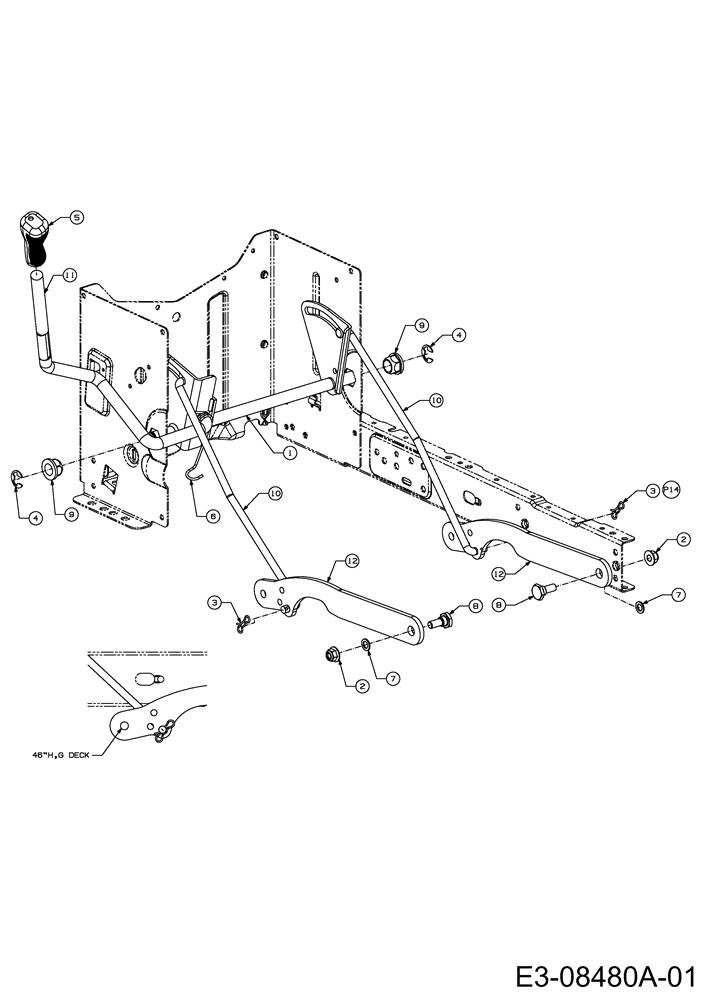

Deck lift

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	683-04334	SHF ASM:LIFT:LT-5 46"	N/A	POA
002	712-04065	NUT	£4.02	Add to
003	714-04040	PIN-COTTER	£4.38	Add to
004	716-0106A	RING E TYPE .625 DIA SHAFT	£3.33	Add to
005	720-0298	GRIP:HANDLE 5/8	£16.37	Add to
006	732-04438	SPR:TORSN:46" LT-5 HNDL	£8.62	Add to
007	736-0140	WASH:FLAT:.385 x.62 x.063	£3.59	Add to
008	738-0380	SCR:SHLDR:.500x.270:3/8-16	£10.48	Add to
009	741-0225	HEX FLANGE BEARING	£4.92	Add to
010	747-04393	ROD:LIFT:13.68	£27.38	Add to
011	747-04653		N/A	POA
012	783-0678C	ARM	£48.06	Add to
