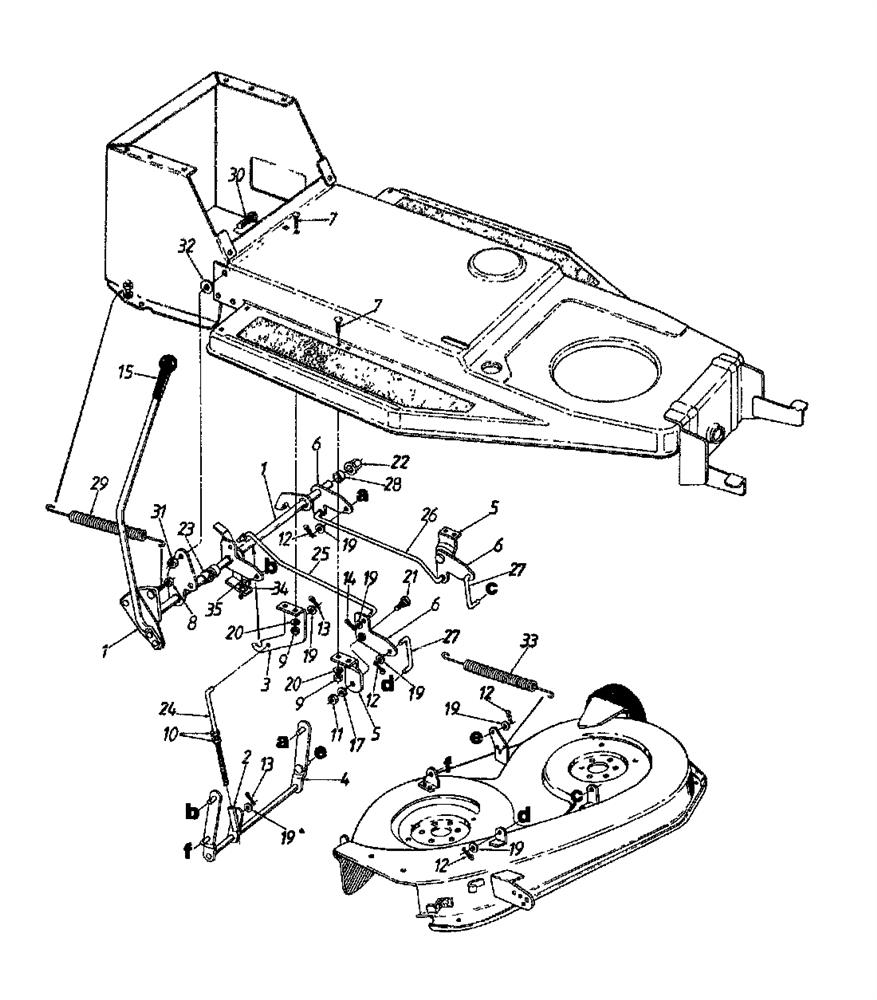

Deck lift

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	16842	SHAFT ASSY-LIFT 16661	£124.99	Add to
002	16668		N/A	POA
003	16683	STOP-DEFLECTOR	N/A	POA
004	166688		N/A	POA
005	16692		N/A	POA
006	16698	BRACKET-DECK LIFT	£39.07	Add to
007	710--0134		N/A	POA
008	712--0158		N/A	POA
009	712--0287		N/A	POA
009	712-0287	NUT HEX	£3.31	Add to
010	712--0711		N/A	POA
011	712-0798	HEX. NUT	£7.61	Add to
012	714-0104	PIN INTERNAL COTTER	£2.78	Add to
012	714-0507	COTTER PIN 3/32 DIA	£3.13	Add to
013	714-0115	COTTER PIN	£3.42	Add to
014	714-0507	COTTER PIN 3/32 DIA	£3.13	Add to
015	720-0143	PULL HANDLE 090.47.413	£7.63	Add to
017	736-0169	L. WASHER	£2.89	Add to
019	736-0169	L. WASHER	£2.89	Add to
019	36-0185		N/A	POA
019	736-0185	FLAT WASHER (RED)	£3.59	Add to
019	736-0329	L. WASHER	£3.26	Add to
020	736-0185	FLAT WASHER (RED)	£3.59	Add to
020	736-0329	L. WASHER	£3.26	Add to
021	738-0281	SCR:SHLDR:.625 x.17:3/8-16	£8.44	Add to
022	741-0225	HEX FLANGE BEARING	£4.92	Add to
023	741-0495	FLANGED BRG.	£8.22	Add to
024	747--0677		N/A	POA
025	747--0678		N/A	POA
026	747-0679	ROD-CONNECTING-LH	£27.54	Add to
027	747-0689	STIRRUP	£8.42	Add to
028	750-0547	NO LONGER AVAILABLE	N/A	POA
029	732-0153	NO LONGER AVAILABLE	N/A	POA
030	710-0793	SCREW-RIBBED NECK	N/A	POA
031	712-0241	HEX NUT 3/8-24	£2.79	Add to
032	736-0354	WASHER-FL	£3.03	Add to
033	732--0564		N/A	POA
034	712-3010	NUT 5/16 x 18	£2.77	Add to
035	710-0602	SCREW:TT:5/16-18:1.00:HXINDWSH	£5.64	Add to
