Deck lift

Parts list

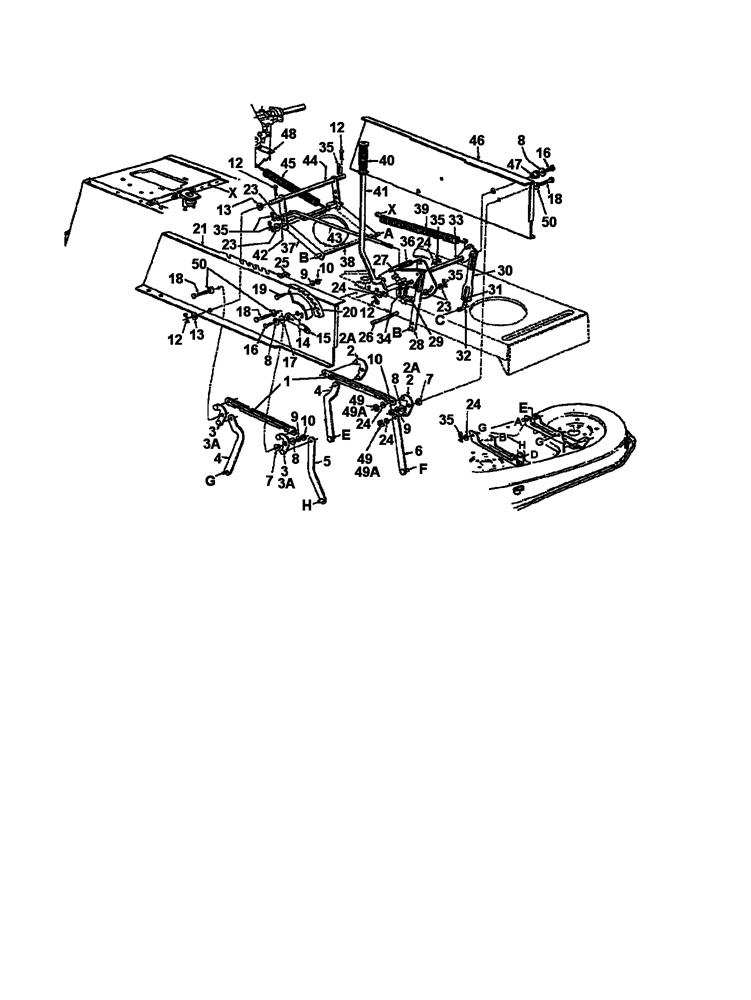

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	09735A	NO LONGER AVAILABLE	N/A	POA
002	683-0029	PIVOT LINK ASS'Y.--L.H. (USES "E"-RING)	£13.18	Add to
003	683-0028	PIVOT LINK ASS'Y.--R.H. (USES "E"-RING)	£13.18	Add to
004	17710-0637	LINK ASSY-HANGER 17710	£13.92	Add to
005	14800A637	LINK DECK HANGER ASSY	£25.89	Add to
006	14804A637	DECK LINK HANGER	£16.94	Add to
007	748-0331	SHLD SPACER	£4.23	Add to
008	736-0264	WASH:FLAT:.330 x.630x.0635	£3.59	Add to
009	736-0119	LOCK WASHER 5/16	£3.33	Add to
010	712-3010	NUT 5/16 x 18	£2.77	Add to
012	714-0470	COTTER PIN	£5.07	Add to
013	736-0256	WASHER:FL:.635 IDX.930 ODX.03	£3.20	Add to
014	983-0003	HEIGHT ADJUSTMENT LEVER 683-0003	£9.70	Add to
015	08540	KNOB-HGT ADJ-BLACK	£4.02	Add to
016	710-0604A	SCREW	£3.62	Add to
017	748-0176	FLANGE BEARING	£8.62	Add to
018	710-1238	SCREW	£3.20	Add to
019	710-3008	HEX BOLT	£3.03	Add to
020	783-04113	BRACKET-INDEX DECK LIFT 17730	£23.36	Add to
021	783-0042D	UPPER FRAME RIGHT 783-0042A	£108.33	Add to
023	736-0267	WASH:FLAT:.385 x.87 x.06:HT	£3.80	Add to
024	736-0160	WASH:FLAT:.530x.930x.050	£3.39	Add to
025	726-0272	CLAMP	£2.98	Add to
026	738-0526	RUNNING BOARD ROD .500 DIA X 2	£40.95	Add to
027	710-3007	SCR:TT:#12-24:0.375 HXINDWSH	£3.59	Add to
028	14802A	DECK LIFT LINK ASSY	£32.45	Add to
029	711-0723A	FERRULE	£12.45	Add to
02A	17640	PIVOT LINK ASS'Y.--L.H.	£19.81	Add to
030	17712-0637	DECK:LIFT LINK ADJ 17712	£12.17	Add to
031	712-3066	NUT:HEX:1/2-20 GR5	£3.31	Add to
032	711-0841	LINK:ADJ:LIFT .500-20	£21.09	Add to
033	17637A	LIFT SHAFT	£119.35	Add to
034	725-0803B	SAFETY SWITCH	£33.60	Add to
035	714-0145	R CLIP	£2.78	Add to
036	732-0637	EXTENSION SPRING	£5.70	Add to
037	17636D	STABILIZER BRACKET 17636C	£79.99	Add to
038	738-0670A	SHAFT-TINE 738-0670	£63.01	Add to
039	732-0638	EXTENSION SPRING	£15.71	Add to
03A	17641	PIVOT LINK ASS'Y.--R.H.	£15.02	Add to
040	720-0233	GRIP:HNDL:DECK LIFT	£7.92	Add to
041	17675A637	NO LONGER AVAILABLE	N/A	POA
042	738-0669	SHFT:.375 DIA X 9.40 LG	£25.91	Add to
043	747-0598	ROD-DISENGAGEMENT	£21.14	Add to
044	97624	SHAFT ASSY. STAB	£116.30	Add to
045	732-0556	SPRING EXTENSION 94 X 7.57 LG	£21.82	Add to
046	783-0043B	FRAME-UPPER LH 783-0043	£108.33	Add to
047	741-0487C	FLANGE BEARING	£6.18	Add to
048	783-1325637	HALTEWINKEL R CKZUGFEDER DECK	£14.28	Add to
049	716-0104	RETAINING RING 1650-001	£3.58	Add to
050	736-0425	BELLWASHER	£3.31	Add to
49A	714-0470	COTTER PIN	£5.07	Add to
