DECK LIFT

Parts list

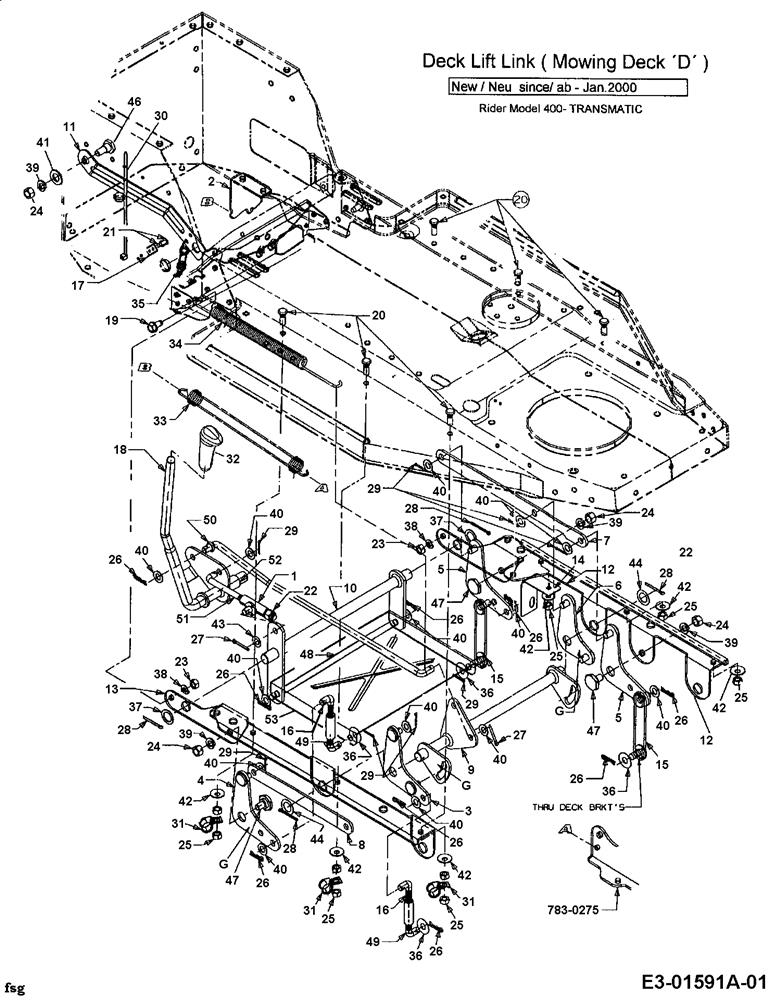

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	16682P637	SLEEVE ASSY-PIVOT 16682	£25.42	Add to
002	783-1325637	HALTEWINKEL R CKZUGFEDER DECK	£14.28	Add to
003	17554	ASM:DK LFT PVT BRKT R.FR-P	£370.89	Add to
004	17555637	BRKT ASM:PIVOT:DECK LIFT RH RR 17555	£35.00	Add to
005	17556637	BRKT ASM:PIVOT:DECK LIFT LH 17556	£25.66	Add to
006	17557637	BRKT ASM:PIVOT:DECK LIFT SHORT 17557	£21.63	Add to
007	17562637	CONNECTING LINK LH 17562	£12.45	Add to
008	17563	CONNECTING LINK RH	£53.52	Add to
009	683-0232637	SHF ASM:CROSS 683-0232	£41.38	Add to
010	17574637	SHAFT 17574	£65.10	Add to
011	17580637	STRAP:LIFT HANDLE SUPPORT 17580	£16.58	Add to
012	17581-0637	NO LONGER AVAILABLE	N/A	POA
013	17582637	BRKT:SUPPORT PIVOT R.H 17582	£46.42	Add to
014	17597637	NO LONGER AVAILABLE	N/A	POA
015	17598-Z	LINK ASSY ZINC-PLATED (OBSOLETE) (OBSOLETE)	N/A
016	97709	LINK ASSY ADJUSTER LIFT	£34.46	Add to
017	17962	PLT:SW	£4.66	Add to
018	683-0584-Z	LEVER	£35.35	Add to
019	710-0604A	SCREW	£3.62	Add to
020	710-1012	BOLT:RIBBED:HD 5/16-24 x.87"LG	£3.39	Add to
021	710-1388	SCREW	£3.23	Add to
022	712-04065	NUT	£4.02	Add to
023	712-3010	NUT 5/16 x 18	£2.77	Add to
024	712-3017	NUT:JAM:3/8-16:GR5	£2.97	Add to
025	712-3057	NUT 5/16-24	£3.00	Add to
026	714-0104	PIN INTERNAL COTTER	£2.78	Add to
027	714-0115	COTTER PIN	£3.42	Add to
028	714-0470	COTTER PIN	£5.07	Add to
029	714-0507	COTTER PIN 3/32 DIA	£3.13	Add to
030	725-0157	NO LONGER AVAILABLE	N/A	POA
031	726-0354	CLAMP 16mm	£5.91	Add to
032	731-2509	GRIP (OBSOLETE) (OBSOLETE)	N/A
033	732-0603	EXTENSION SPRING	£25.20	Add to
034	732-0638	EXTENSION SPRING	£15.71	Add to
035	732-0640	EXTENSION SPRING	£4.92	Add to
036	736-0101	WASH:FLAT:.406 X 1.00 X .030	£12.63	Add to
037	736-0116	WASH:FLAT:.635 x.93 x.06	£3.70	Add to
038	736-0119	LOCK WASHER 5/16	£3.33	Add to
039	736-0169	L. WASHER	£2.89	Add to
040	736-0185	FLAT WASHER (RED)	£3.59	Add to
041	736-0192	WASH:FL:.535 X .93 X .090	£3.59	Add to
042	736-0242	BELL WASHER	£3.72	Add to
043	736-0314	WASHER-THRUST	£2.97	Add to
044	736-0773	WASH:FLAT:16x22x1 DIN 988	£2.93	Add to
046	738-0143	SHOULDER BOLT	£12.24	Add to
047	738-0281	SCR:SHLDR:.625 x.17:3/8-16	£8.44	Add to
048	738-0667	NO LONGER AVAILABLE	N/A	POA
049	747-0584	LIFT LINK	£12.45	Add to
050	747-0745	ROD:DECK LIFT	£19.38	Add to
051	747-0746	ROD:DECK ENGAGE	£10.42	Add to
052	750-0379	SPACER .657 ID X .87 OD X .85	£5.33	Add to
053	783-0281637	BRKT:STABILIZER 400/32" DECK	£49.11	Add to
