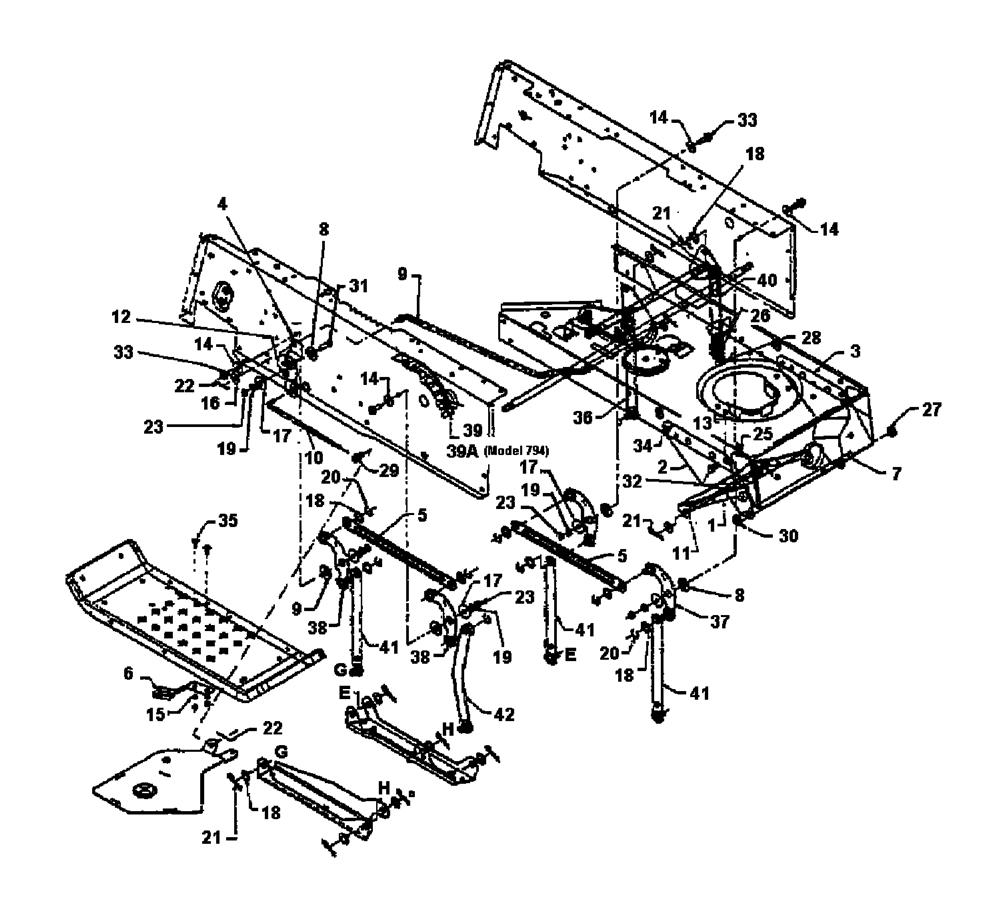

Deck lift (1)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	783-0377637	NO LONGER AVAILABLE	N/A	POA
002	783-0376637	NO LONGER AVAILABLE	N/A	POA
003	783-0375637	BRACKET STABILIZER SUPPORT LH 783-0375	£44.50	Add to
004	783-0197	LINK-ENGAGEMENT ARM	£15.06	Add to
005	783-0103637	SIDE BAR 783-0103	£12.34	Add to
006	761-0168D	BRACKET ASSY-BRAKE 761-0168B	£32.66	Add to
007	750-0972	SPCR:.515 ID X.69 OD X 2.97 LG	£11.22	Add to
008	748-0331	SHLD SPACER	£4.23	Add to
009	747-0916A	NO LONGER AVAILABLE	N/A	POA
010	747-0610	LIFT ROD	£29.13	Add to
011	738-0669	SHFT:.375 DIA X 9.40 LG	£25.91	Add to
012	736-0418A	FLAT WASHER .34 ID X 2.25 OD X	£5.81	Add to
013	736-0169	L. WASHER	£2.89	Add to
014	736-0425	BELLWASHER	£3.31	Add to
015	736-0329	L. WASHER	£3.26	Add to
016	736-0267	WASH:FLAT:.385 x.87 x.06:HT	£3.80	Add to
017	736-0231	WASHER FLAT	£3.58	Add to
018	736-0160	WASH:FLAT:.530x.930x.050	£3.39	Add to
019	736-0119	LOCK WASHER 5/16	£3.33	Add to
020	716-0104	RETAINING RING 1650-001	£3.58	Add to
021	714-0145	R CLIP	£2.78	Add to
022	714-0111	COTTER PIN	£3.20	Add to
023	712-3010	NUT 5/16 x 18	£2.77	Add to
024	712-3006	NUT	£2.77	Add to
025	712-0241	HEX NUT 3/8-24	£2.79	Add to
026	712-3066	NUT:HEX:1/2-20 GR5	£3.31	Add to
027	712-0346	NO LONGER AVAILABLE	N/A	POA
028	711-0841	LINK:ADJ:LIFT .500-20	£21.09	Add to
029	711-0677	FERRULE:5/16-18 x.312 DIA	£13.47	Add to
030	710-1319	HHCS:1/2-20:11.00:GR5:SPEC	£17.76	Add to
031	710-0376	SCREW HEX CAP 5/16	£9.02	Add to
032	710-0180	HHCS:3/8-24:.750:GR5:STD	£3.90	Add to
033	710-1238	SCREW	£3.20	Add to
034	710-0607	SELF TAP SCREW	£4.71	Add to
035	710-0134	BOLT	£3.03	Add to
036	683-0079	LEVER ASSY.-ENGAGE	£15.19	Add to
037	683-0029A637	LINK-PIVOT ASSY LH 683-0029A	£14.96	Add to
038	683-0028A	LINK PIVOT ASSY-RH	£27.24	Add to
039	783-04113	BRACKET-INDEX DECK LIFT 17730	£23.36	Add to
040	17712-0637	DECK:LIFT LINK ADJ 17712	£12.17	Add to
041	14804A637	DECK LINK HANGER	£16.94	Add to
042	14800A637	LINK DECK HANGER ASSY	£25.89	Add to
39A	783-0118	PIN-EQUIP SUPPORT	£22.08	Add to
