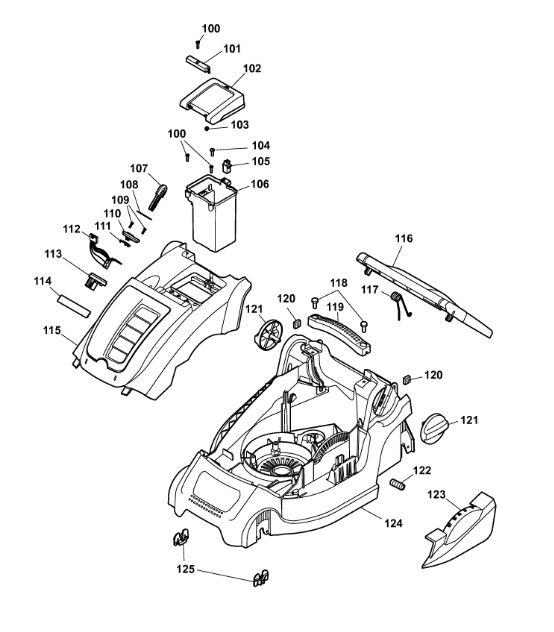

Deck housing

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
100	0012625	SCREW	£1.77	Add to
101	4919316	hinge 34 Li-Ion Power	£9.74	Add to
102	4919311	4919311	N/A	POA
103	4939104	leg spring	£3.66	Add to
104	0012630	SCREW	£1.66	Add to
105	4939318	push-push	£19.38	Add to
106	4919344	Accu chamber 34	£23.43	Add to
107	4939354	contactcode breaker	£5.95	Add to
108	4939200	etikett charge state	£7.48	Add to
109	0012620	screw K30X12-WN1452-10.9-TORX	£1.80	Add to
110	4939352	cover	£11.51	Add to
110A	4939042	cover child resistant	£11.51	Add to
111	4939356	isolator	£11.51	Add to
112	4939052	cable loom	N/A	POA
112A	4939034	lower part of breaker	£68.11	Add to
113	4939328	switch holder	£79.44	Add to
114	4919218	x	N/A	POA
115	4919325	COVE Li-Ion 34 BLACK	£46.59	Add to
116	4919322	4919322	£45.60	Add to
117	4907106	leg spring	£2.89	Add to
118	0012643	SCREW K60X30/20	£3.03	Add to
119	4907306	Carrying handle	£11.00	Add to
120	0016410	nut	£2.79	Add to
121	4904033	Handrad M8 kpl. schwarz (RAL90	£10.49	Add to
122	4907113	Spring	£2.15	Add to
123	4919328	COVER CONNECTING ROD RED	£13.04	Add to
124	4919320	Chassis Li-Ion Power 34 rot	N/A	POA
125	4907316	AXLE CLIP	£2.21	Add to
