DASHBOARD, SEAT, FUEL TANK

Parts list

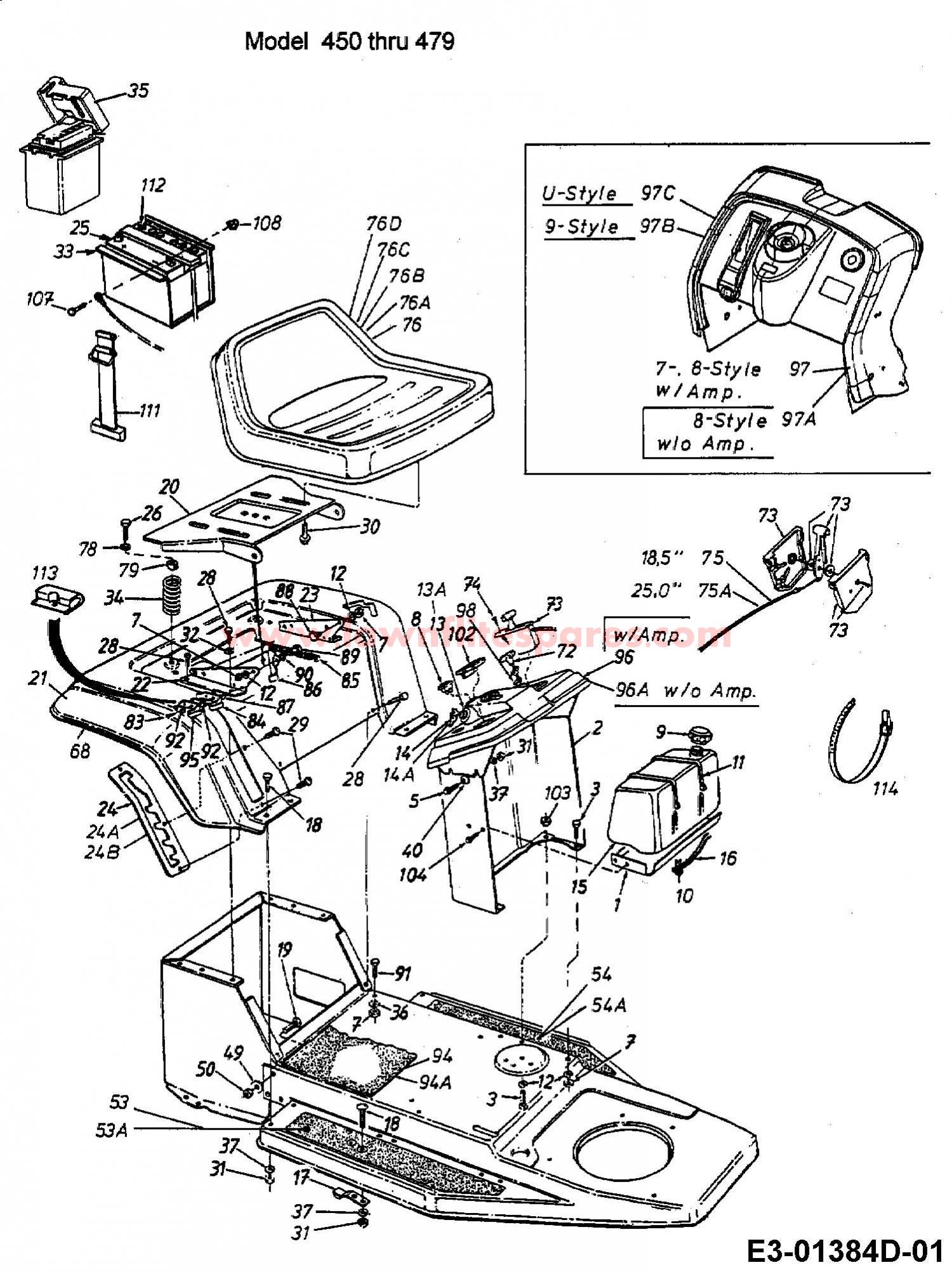

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
00117932BRKT:SUPT:GAS TANK STYLE 1£18.87 Add to
00217933A637PANEL-DASH 17933A£126.60 Add to
003710-3025HHCS:5/16-18:.625:GR5:STD£3.31 Add to
005710-0751BOLT 069£3.39 Add to
007712-3010NUT 5/16 x 18£2.77 Add to
008725-0634SW:ROCKER£19.29 Add to
009751-0603ACAP:FUEL£9.01 Add to
010726-0205HOSE CLAMP 1/2 INCH DIA.£3.44 Add to
011726-0209NO LONGER AVAILABLEN/A POA
012736-0119LOCK WASHER 5/16£3.33 Add to
013725-0267BIGNITION SWITCH£25.04 Add to
014725-0201IGNITION KEY£6.47 Add to
015751-0553FUEL TANK£80.00 Add to
016751-10349-54FUEL LINE HOSE BLACK£25.38 Add to
017761-0194ABLADE BRAKE ASSY£19.28 Add to
018710-0134BOLT£3.03 Add to
019710-0793SCREW-RIBBED NECKN/A POA
020783-0039ANO LONGER AVAILABLEN/A POA
021783-0354FENDER:HARDTOP ´96,400N/A POA
02217704BRKT:SEAT:HINGE:SUPPORT R.H.£24.50 Add to
02317703ABRKT:SEAT:HGE:SUPT LH£16.96 Add to
024783-0384NO LONGER AVAILABLEN/A POA
0255032-u3-0002BATTERY MF896 (No Returns on this item)£93.24 Add to
026710-0817SCR:TT:5/16-18:1.250:HXINDWSH£4.52 Add to
028710-0726HEX SCREW AB 5/16-12:0.750£3.19 Add to
029710-1017TAP SCREW£2.97 Add to
030710-0773SCR:TT:3/8-16:.500:HXINDWSH£7.50 Add to
031712-0287NUT HEX£3.31 Add to
032736-0607WASH:LOCK:5/16 EXT TOOTH£3.31 Add to
033783-0349637BATTERY TRAY£34.84 Add to
034732-0588SPRG:COMP 1.35 OD X 3,6£13.94 Add to
035731-0871BBATTERY BOX W/COVER£59.87 Add to
036736-0242BELL WASHER£3.72 Add to
037736-0329L. WASHER£3.26 Add to
040736-0270BELL WASHER£3.91 Add to
049736-0217H.L. WASHER (RED)£4.89 Add to
050712-0241HEX NUT 3/8-24£2.79 Add to
053723-0474FOOT PAD RIGHT£20.71 Add to
054723-0475FOOD PAD LEFT£20.71 Add to
068731-051181EDGE GUARD 731-0511£32.27 Add to
072746-0616ACHOKE CONTROL CABLE ASSY£12.71 Add to
073931-0823ATHROTTLE CONTROL BOX ASSY£25.49 Add to
074710-0779ASELF TAP SCREW£3.58 Add to
075746-0638CABLE-THROTTLE£11.28 Add to
076757-0378SEAT:V-380:BLACK PR 757-0363A£317.61 Add to
078736-0159WASH .349 ID X .879 OD X .063£3.59 Add to
079722-0160ELASTEMER BUSHING .930 OD X .5£3.20 Add to
083710-0227SCR:AB:#8-18:0.500:HXINDWH£3.07 Add to
084725-1439SW:INNER SEAT SPRG£8.44 Add to
085732-0581BSPRG:EXTN:.75 OD X 5.31£7.22 Add to
08617239CBRKT:LIFT:SEATN/A POA
087726-0278INSULATING PLATE£3.20 Add to
088738-0155BOLT:SHLDR:.435 x.160:5/16-18£7.50 Add to
089738-3024NO LONGER AVAILABLEN/A POA
090736-0141WASH:SPR:.440 x.750 x.015£3.39 Add to
091710-0604ASCREW£3.62 Add to
092726-0279INSULATING PLATE£3.20 Add to
094735-0254CENTER FOOT PAD 723-0423 (OBSOLETE)N/A
095725-1303SW:OUTER SEAT SPRG£3.26 Add to
096731-1228NO LONGER AVAILABLEN/A POA
097731-0063DASH PANEL 400 8-STYLE (OBSOLETE) (OBSOLETE)N/A
09817782CHOKE CABLE RETAINER CLIP£13.39 Add to
102725-0925AMMETER 620£30.37 Add to
103712-3007HEX JAM NUT£3.07 Add to
104710-1355SCR:TT:M5-.8:10.00:HXFLG£2.98 Add to
107710-3015SCREW HEX CAP£3.33 Add to
108712-0271NUT:SEMS:1/4-20£3.03 Add to
111723-0444BATTERY STRAP£24.86 Add to
112725-0689NO LONGER AVAILABLEN/A POA
113783-0297NO LONGER AVAILABLEN/A POA
114725-0157NO LONGER AVAILABLEN/A POA
13A725-1396AIGNITION SWITCH (6 PIN)£23.81 Add to
14A725-1341BIGNITION KEY WITHOUT LOGO£15.11 Add to
24A17553BRKT:INDX:LIFT:DK:6POS-PAI£17.69 Add to
24B783-0872BRKT:INDEX:DECK:LIFT£19.13 Add to
53A735-0252PAD:FOOT:RUBBER RH£25.20 Add to
54A735-0253NO LONGER AVAILABLEN/A POA
75A746-0775WIRE:THROT:X 22.0£12.81 Add to
76A757-04107SEAT£187.38 Add to
76B757-0348ASEAT-MED BACK BLACK 757-0348£317.51 Add to
76C757-0364NO LONGER AVAILABLEN/A POA
76D757-0365SEAT:RAD YELLOW V460£186.21 Add to
94A735-0254CENTER FOOT PAD 723-0423 (OBSOLETE)N/A
96A731-1502Instrument panel (OBSOLETE) (OBSOLETE)N/A
97A731-04184ANO LONGER AVAILABLEN/A POA
97B731-04401ANO LONGER AVAILABLEN/A POA
97C731-2384DASH PANEL (U-STYLE) 731-0063*-U£115.62 Add to
