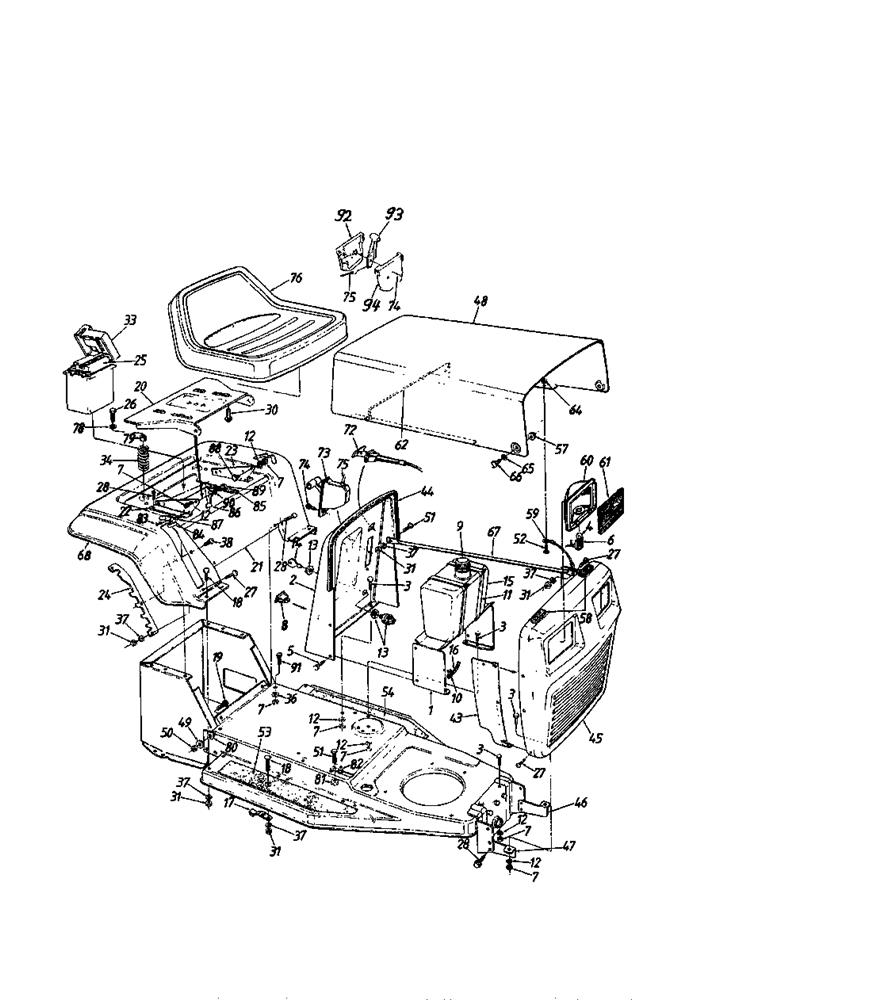

Dashboard, Engine hood, Fender

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	16655	BRACKET-DASH SUPPORT	N/A	POA
002	16656	Instruments board	£110.97	Add to
003	710-3008	HEX BOLT	£3.03	Add to
004	725-0963	BULB	£7.18	Add to
005	710-0776A	SCREW-HEX WASH HD	£3.20	Add to
006	725-1650	SOCKET LAMP TWIST LOCK (OBSOLETE)	N/A
007	712-3010	NUT 5/16 x 18	£2.77	Add to
007	712-0126	Nut	N/A	POA
008	725-0634	SW:ROCKER	£19.29	Add to
009	723-0333	NO LONGER AVAILABLE	N/A	POA
010	726-0207	NO LONGER AVAILABLE	N/A	POA
011	726-0209	NO LONGER AVAILABLE	N/A	POA
012	736-0119	LOCK WASHER 5/16	£3.33	Add to
012	736-01149		N/A	POA
013	725-0267B	IGNITION SWITCH	£25.04	Add to
014	725-0201	IGNITION KEY	£6.47	Add to
015	753-0503	FUEL TANK 751-0172	£64.10	Add to
016	751-10349-54	FUEL LINE HOSE BLACK	£25.38	Add to
017	761-0168D	BRACKET ASSY-BRAKE 761-0168B	£32.66	Add to
018	710-0134	BOLT	£3.03	Add to
019	710-0793	SCREW-RIBBED NECK	N/A	POA
020	15607	BRACKET	£43.95	Add to
021	16660	RAHMENVERKLEIDUNG HINTEN	£212.45	Add to
022	17284	BRACKET-SEAT HINGE-R.H.	N/A	POA
023	17283	SUPPORT-SEAT HINGE	N/A	POA
024	17133		N/A	POA
025	EPB3117	BATTERY 12N14-3A (DRY)	£52.41	Add to
026	710-0602	SCREW:TT:5/16-18:1.00:HXINDWSH	£5.64	Add to
027	710-0924	TRUSS SCREW (OBSOLETE) (OBSOLETE) (OBSOLETE)	N/A
028	710-0726	HEX SCREW AB 5/16-12:0.750	£3.19	Add to
030	710-0623	SCR:TT:3/8-16:.750 HXINDWSH	£6.30	Add to
031	712-0287	NUT HEX	£3.31	Add to
033	731-0871B	BATTERY BOX W/COVER	£59.87	Add to
034	732-0588	SPRG:COMP 1.35 OD X 3,6	£13.94	Add to
036	736-0242	BELL WASHER	£3.72	Add to
037	736-0329	L. WASHER	£3.26	Add to
037	736-0242	BELL WASHER	£3.72	Add to
038	710-1388	SCREW	£3.23	Add to
043	19265	ELEC. MODULE KIT 16622	N/A	POA
044	731-051181	EDGE GUARD 731-0511	£32.27	Add to
045	17025	GRILLE	£495.64	Add to
047	17132	GRILLE MTG. BRKT.--R.H. (STYLE 2)	£14.51	Add to
048	16681	HOOD (STYLE 2, 7)	N/A	POA
049	736-0217	H.L. WASHER (RED)	£4.89	Add to
050	712-0241	HEX NUT 3/8-24	£2.79	Add to
051	710-0751	BOLT 069	£3.39	Add to
052	710-0473	SCR:MACH:#10-24:0.500:TRUSPHI	£4.62	Add to
053	723-0474	FOOT PAD RIGHT	£20.71	Add to
054	723-0475	FOOD PAD LEFT	£20.71	Add to
057	712-0380	NUT:FLGLK:1/4-28:GRF	£3.20	Add to
058	722-0157	STRIP-FOAM	£2.56	Add to
059	723-0302	HOOD STOP X 7.0	£27.76	Add to
060	731-0705	HSG:HDLT	£27.93	Add to
061	731-0706	LENS-HEADLAMP-SQ	£12.42	Add to
062	732-0414A	SPRING-HOOD	£12.68	Add to
064	712-0272	NUT SEMS:#10-24	£3.39	Add to
065	736-0413	NO LONGER AVAILABLE	N/A	POA
066	738-0724	NO LONGER AVAILABLE	N/A	POA
067	749-0722B	ROD:SUPPORT:GRILLE:PAINTED	N/A	POA
068	731-051181	EDGE GUARD 731-0511	£32.27	Add to
072	746-0617A	NO LONGER AVAILABLE	N/A	POA
073	931-0823A	THROTTLE CONTROL BOX ASSY	£25.49	Add to
074	710-0779A	SELF TAP SCREW	£3.58	Add to
075	746-0501	THROTTLE CONTROL WIRE	£23.72	Add to
076	757-0348A	SEAT-MED BACK BLACK 757-0348	£317.51	Add to
078	736-0159	WASH .349 ID X .879 OD X .063	£3.59	Add to
079	722-0160	ELASTEMER BUSHING .930 OD X .5	£3.20	Add to
080	726-0267	CLAMP	N/A	POA
081	712-0107	NO LONGER AVAILABLE	N/A	POA
082	726-0175	CLAMP	£4.50	Add to
083	710-0227	SCR:AB:#8-18:0.500:HXINDWH	£3.07	Add to
084	725-1303	SW:OUTER SEAT SPRG	£3.26	Add to
085	732-0581B	SPRG:EXTN:.75 OD X 5.31	£7.22	Add to
086	17239	SEAL	N/A	POA
087	726-0222	PLATE-INSULATOR NUT	£3.05	Add to
088	738-0155	BOLT:SHLDR:.435 x.160:5/16-18	£7.50	Add to
089	738-3024	NO LONGER AVAILABLE	N/A	POA
090	736-0141	WASH:SPR:.440 x.750 x.015	£3.39	Add to
091	710-0759	HHFLG:5/16-18:.625:GR5:STD	£3.26	Add to
092	931-0823A	THROTTLE CONTROL BOX ASSY	£25.49	Add to
093	931-0823A	THROTTLE CONTROL BOX ASSY	£25.49	Add to
094	931-0823A	THROTTLE CONTROL BOX ASSY	£25.49	Add to
