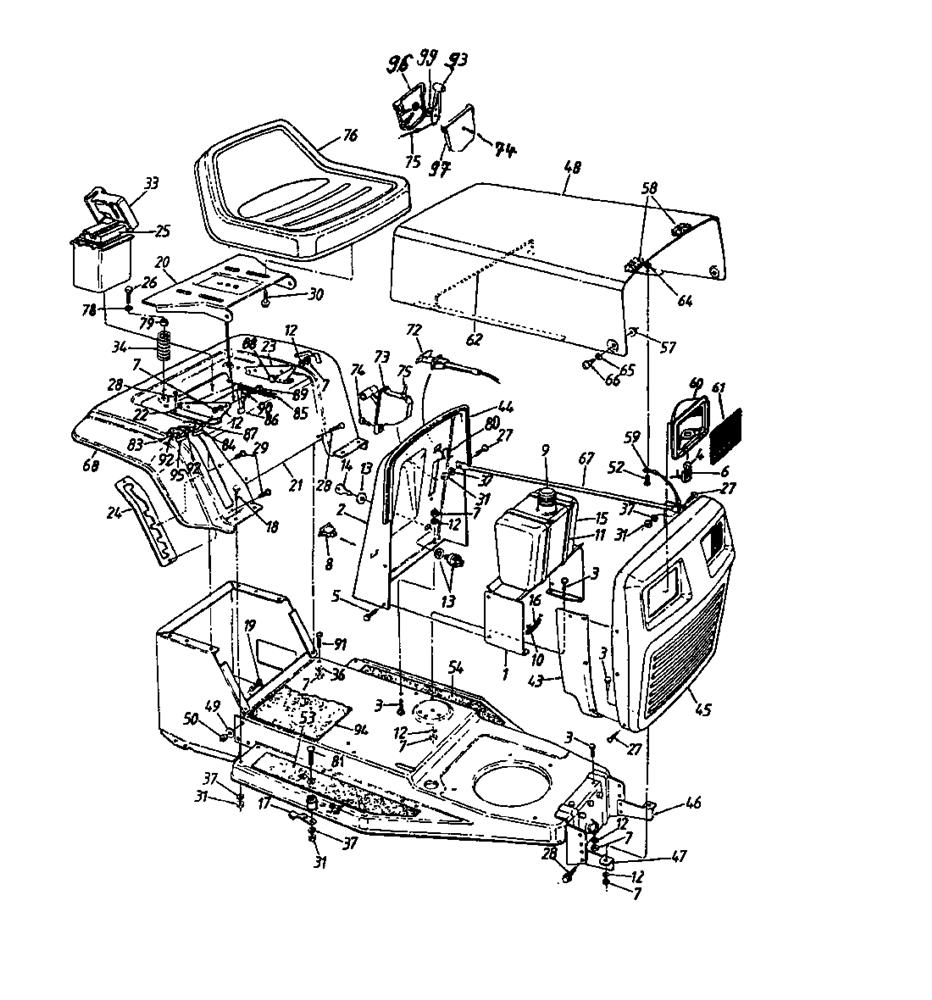

Dashboard, Engine hood, Fender

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	16655N		N/A	POA
002	16656	Instruments board	£110.97	Add to
003	710-3008	HEX BOLT	£3.03	Add to
004	725-0963	BULB	£7.18	Add to
005	710-0776A	SCREW-HEX WASH HD	£3.20	Add to
006	725-1650	SOCKET LAMP TWIST LOCK (OBSOLETE)	N/A
007	712-3010	NUT 5/16 x 18	£2.77	Add to
008	725-0634	SW:ROCKER	£19.29	Add to
009	751-0603A	CAP:FUEL	£9.01	Add to
010	726-0205	HOSE CLAMP 1/2 INCH DIA.	£3.44	Add to
011	726-0209	NO LONGER AVAILABLE	N/A	POA
012	739-0119		N/A	POA
012	736-0119	LOCK WASHER 5/16	£3.33	Add to
013	715-0267		N/A	POA
013	725-0267B	IGNITION SWITCH	£25.04	Add to
014	725-0201	IGNITION KEY	£6.47	Add to
015	751-0553	FUEL TANK	£80.00	Add to
016	751-10349-54	FUEL LINE HOSE BLACK	£25.38	Add to
017	761-0167	BRAKE ASSY-DISC	£283.13	Add to
018	710-0134	BOLT	£3.03	Add to
019	710-0793	SCREW-RIBBED NECK	N/A	POA
020	15607D	SEAT PIVOT BRACKET	£47.80	Add to
021	17590	FENDER-RR	£562.53	Add to
022	17704	BRKT:SEAT:HINGE:SUPPORT R.H.	£24.50	Add to
023	17703A	BRKT:SEAT:HGE:SUPT LH	£16.96	Add to
024	17553	BRKT:INDX:LIFT:DK:6POS-PAI	£17.69	Add to
025	EPB3117	BATTERY 12N14-3A (DRY)	£52.41	Add to
026	710-0817	SCR:TT:5/16-18:1.250:HXINDWSH	£4.52	Add to
027	710-0924	TRUSS SCREW (OBSOLETE) (OBSOLETE) (OBSOLETE)	N/A
028	710-0726	HEX SCREW AB 5/16-12:0.750	£3.19	Add to
029	710-1017	TAP SCREW	£2.97	Add to
030	710-0623	SCR:TT:3/8-16:.750 HXINDWSH	£6.30	Add to
031	712-0287	NUT HEX	£3.31	Add to
033	731-0871B	BATTERY BOX W/COVER	£59.87	Add to
034	732-0588	SPRG:COMP 1.35 OD X 3,6	£13.94	Add to
036	736-0242	BELL WASHER	£3.72	Add to
037	736-0329	L. WASHER	£3.26	Add to
043	16621A	PANEL	£13.30	Add to
043	16622A	PANEL-SIDE-RH	£13.30	Add to
044	731-0511-31	TRIM STRIP--31" LG.	£9.92	Add to
045	17025	GRILLE	£495.64	Add to
046	17131	GRILLE MTG. BRKT.--L.H. (STYLE 2)	£6.72	Add to
047	17132	GRILLE MTG. BRKT.--R.H. (STYLE 2)	£14.51	Add to
048	16681	HOOD (STYLE 2, 7)	N/A	POA
049	736-0217	H.L. WASHER (RED)	£4.89	Add to
050	712-0241	HEX NUT 3/8-24	£2.79	Add to
052	710-0473	SCR:MACH:#10-24:0.500:TRUSPHI	£4.62	Add to
053	723-0474	FOOT PAD RIGHT	£20.71	Add to
054	723-0475	FOOD PAD LEFT	£20.71	Add to
057	712-0380	NUT:FLGLK:1/4-28:GRF	£3.20	Add to
058	722-0157	STRIP-FOAM	£2.56	Add to
059	723-0302	HOOD STOP X 7.0	£27.76	Add to
060	731-0705	HSG:HDLT	£27.93	Add to
061	731-0706	LENS-HEADLAMP-SQ	£12.42	Add to
062	732-0414A	SPRING-HOOD	£12.68	Add to
064	712-0272	NUT SEMS:#10-24	£3.39	Add to
065	736-0413	NO LONGER AVAILABLE	N/A	POA
066	738-0724	NO LONGER AVAILABLE	N/A	POA
067	749-0722B	ROD:SUPPORT:GRILLE:PAINTED	N/A	POA
068	731-051181	EDGE GUARD 731-0511	£32.27	Add to
072	746-0617A	NO LONGER AVAILABLE	N/A	POA
073	931-0823A	THROTTLE CONTROL BOX ASSY	£25.49	Add to
074	710-0779A	SELF TAP SCREW	£3.58	Add to
075	746-0501	THROTTLE CONTROL WIRE	£23.72	Add to
076	757-0348A	SEAT-MED BACK BLACK 757-0348	£317.51	Add to
078	736-0159	WASH .349 ID X .879 OD X .063	£3.59	Add to
079	722-0160	ELASTEMER BUSHING .930 OD X .5	£3.20	Add to
080	17782	CHOKE CABLE RETAINER CLIP	£13.39	Add to
081	710-0111	NO LONGER AVAILABLE	N/A	POA
083	710-0227	SCR:AB:#8-18:0.500:HXINDWH	£3.07	Add to
084	725-1439	SW:INNER SEAT SPRG	£8.44	Add to
085	732-0581B	SPRG:EXTN:.75 OD X 5.31	£7.22	Add to
086	17239C	BRKT:LIFT:SEAT	N/A	POA
087	726-0278	INSULATING PLATE	£3.20	Add to
088	738-0155	BOLT:SHLDR:.435 x.160:5/16-18	£7.50	Add to
089	738-3024	NO LONGER AVAILABLE	N/A	POA
091	710-0604A	SCREW	£3.62	Add to
092	726-0279	INSULATING PLATE	£3.20	Add to
093	731-1065	THROTTLE LEVER ASSY-SHORT THRO	£12.24	Add to
094	723-0310A	CENTER FOOT PAD	£18.38	Add to
095	725-1303	SW:OUTER SEAT SPRG	£3.26	Add to
097	931-0823A	THROTTLE CONTROL BOX ASSY	£25.49	Add to
099	736-0232	WAVE WASHER	£3.69	Add to
