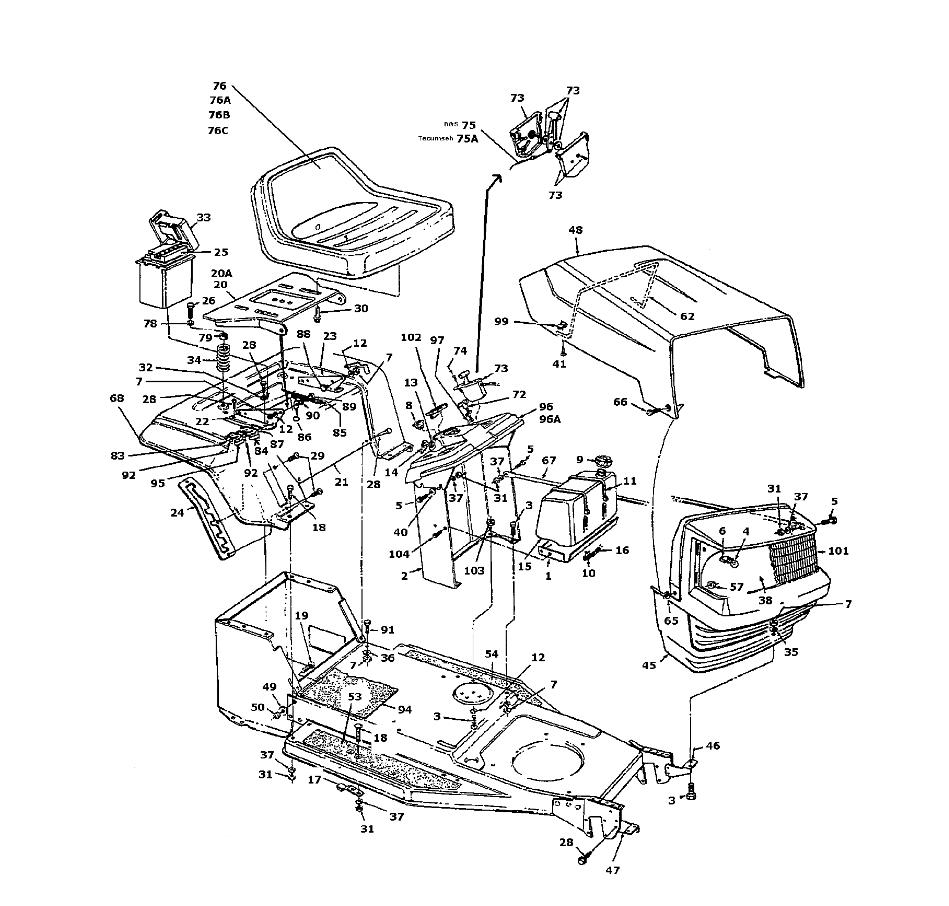

Dashboard, Engine hood, Fender

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
00117932BRKT:SUPT:GAS TANK STYLE 1£18.87 Add to
00217933PANEL-DASHN/A POA
003710-3008HEX BOLT£3.03 Add to
004725-0963BULB£7.18 Add to
005710-0924TRUSS SCREW (OBSOLETE) (OBSOLETE) (OBSOLETE)N/A
006725-1651LAMP SOCKET, LONG£24.91 Add to
007712-3010NUT 5/16 x 18£2.77 Add to
008725-0634SW:ROCKER£19.29 Add to
009751-0603ACAP:FUEL£9.01 Add to
010726-0205HOSE CLAMP 1/2 INCH DIA.£3.44 Add to
011726-0209NO LONGER AVAILABLEN/A POA
012736-0119LOCK WASHER 5/16£3.33 Add to
013725-0267BIGNITION SWITCH£25.04 Add to
014725-0201IGNITION KEY£6.47 Add to
015751-0553FUEL TANK£80.00 Add to
016751-10349-54FUEL LINE HOSE BLACK£25.38 Add to
017761-0194ABLADE BRAKE ASSY£19.28 Add to
018710-0134BOLT£3.03 Add to
019710-0793SCREW-RIBBED NECKN/A POA
020783-0039A637NO LONGER AVAILABLEN/A POA
02117590FENDER-RR£562.53 Add to
02217704BRKT:SEAT:HINGE:SUPPORT R.H.£24.50 Add to
02317703ABRKT:SEAT:HGE:SUPT LH£16.96 Add to
02417553BRKT:INDX:LIFT:DK:6POS-PAI£17.69 Add to
025EPB3117BATTERY 12N14-3A (DRY)£52.41 Add to
026710-0817SCR:TT:5/16-18:1.250:HXINDWSH£4.52 Add to
028710-0726HEX SCREW AB 5/16-12:0.750£3.19 Add to
029710-1017TAP SCREW£2.97 Add to
030710-0870HHWSH:3/8-16:.625:GR5:STD£13.79 Add to
031712-0287NUT HEX£3.31 Add to
032736-0607WASH:LOCK:5/16 EXT TOOTH£3.31 Add to
033731-0871BBATTERY BOX W/COVER£59.87 Add to
034732-0588SPRG:COMP 1.35 OD X 3,6£13.94 Add to
035736-3078WASH:FLAT:.344 x 1.00 x 063:HD£4.23 Add to
036736-0242BELL WASHER£3.72 Add to
037736-0329L. WASHER£3.26 Add to
038777-9206LBL:GRILL:"0" STYLE£23.21 Add to
040736-0270BELL WASHER£3.91 Add to
041710-3009NO LONGER AVAILABLEN/A POA
045631-04200GRILL ASM:0 STY:w/o ICON LT-5£259.30 Add to
04617595BRACKET-GRILLE MTG£10.19 Add to
04717596BRACKET-GRILLE MTG£10.19 Add to
048783-0250-0638HOOD:STY'0'W/LOUVERS-FORME 783-0250£177.22 Add to
049736-0217H.L. WASHER (RED)£4.89 Add to
050712-0241HEX NUT 3/8-24£2.79 Add to
052710-0473SCR:MACH:#10-24:0.500:TRUSPHI£4.62 Add to
053723-0474FOOT PAD RIGHT£20.71 Add to
054723-0475FOOD PAD LEFT£20.71 Add to
057712-0380NUT:FLGLK:1/4-28:GRF£3.20 Add to
062732-0704SPR:HOOD:10 STY 400£13.65 Add to
065736-0342FLAT WASHER£2.97 Add to
066738-0724NO LONGER AVAILABLEN/A POA
067749-0914637SUPT:GRILLE:24.5 LG 749-0914£16.07 Add to
068731-051181EDGE GUARD 731-0511£32.27 Add to
072746-0616ACHOKE CONTROL CABLE ASSY£12.71 Add to
073931-0823ATHROTTLE CONTROL BOX ASSY£25.49 Add to
074710-0779ASELF TAP SCREW£3.58 Add to
075746-0638CABLE-THROTTLE£11.28 Add to
076757-04107SEAT£187.38 Add to
078736-0159WASH .349 ID X .879 OD X .063£3.59 Add to
079722-0160ELASTEMER BUSHING .930 OD X .5£3.20 Add to
083710-0227SCR:AB:#8-18:0.500:HXINDWH£3.07 Add to
084725-1439SW:INNER SEAT SPRG£8.44 Add to
085732-0581BSPRG:EXTN:.75 OD X 5.31£7.22 Add to
08617239CBRKT:LIFT:SEATN/A POA
087726-0278INSULATING PLATE£3.20 Add to
088738-0155BOLT:SHLDR:.435 x.160:5/16-18£7.50 Add to
089738-3024NO LONGER AVAILABLEN/A POA
090736-0141WASH:SPR:.440 x.750 x.015£3.39 Add to
091710-0604ASCREW£3.62 Add to
092726-0279INSULATING PLATE£3.20 Add to
094735-0254CENTER FOOT PAD 723-0423 (OBSOLETE)N/A
095725-1303SW:OUTER SEAT SPRG£3.26 Add to
096731-1228NO LONGER AVAILABLEN/A POA
09717782CHOKE CABLE RETAINER CLIP (OBSOLETE)N/A
099726-0130SPEEDNUT 10Z-"U" TYPE£5.31 Add to
101731-1767HEADLIGHT LENS WITH LOGO£78.15 Add to
102725-0925AMMETER 620£30.37 Add to
103712-3007HEX JAM NUT£3.07 Add to
104710-0599HEX TT SCREW 1/4-20£4.60 Add to
20A783-0039A665CARRIER£38.09 Add to
75A746-0638CABLE-THROTTLE£11.28 Add to
76A757-04107SEAT£187.38 Add to
76B757-0348ASEAT-MED BACK BLACK 757-0348£317.51 Add to
76C757-0364NO LONGER AVAILABLEN/A POA
96A731-1502Instrument panel (OBSOLETE) (OBSOLETE)N/A
