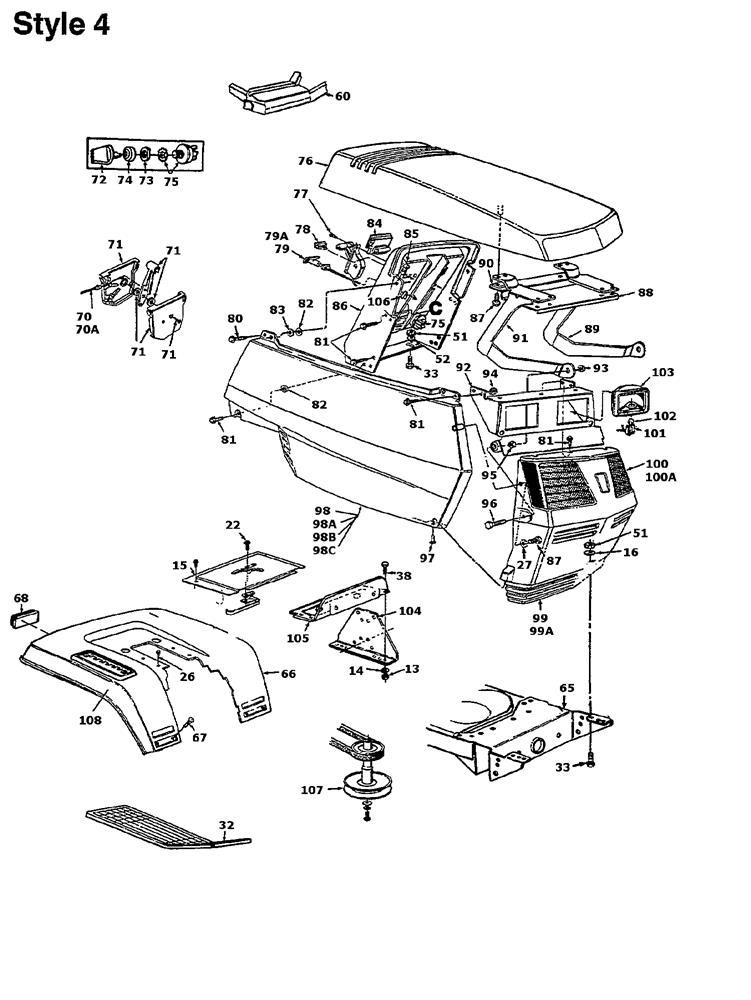

Dashboard, Engine hood 4-Style, Fender

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
013	712-0287	NUT HEX	£3.31	Add to
014	736-0329	L. WASHER	£3.26	Add to
015	17286B	COVER-HARD TOP (OBSOLETE)	£56.26	Add to
016	736-3078	WASH:FLAT:.344 x 1.00 x 063:HD	£4.23	Add to
026	710-0726	HEX SCREW AB 5/16-12:0.750	£3.19	Add to
027	736-0142	WASHER:FLAT:.281 x.50 x.063	£3.59	Add to
032	731-0911	FOOT PAD--L.H.	£35.21	Add to
033	710-3008	HEX BOLT	£3.03	Add to
038	710-0751	BOLT 069	£3.39	Add to
051	783-0151	END PLATE	£103.27	Add to
052	736-0275	WASH:FLAT:.344 x .688 x.065	£3.07	Add to
060	731-0955	CAP-STEERINF WHEEL W/SPRIG	£20.16	Add to
065	783-0041A-0637	BRACKET:BAR:PIVOT 783-0041A	N/A	POA
066	17324B	REAR FENDER	£217.37	Add to
067	710-0167	SCR:CRG:1/4-20:.50:	£2.97	Add to
068	725-3000	REFLECTOR	N/A	POA
070	746-0638	CABLE-THROTTLE	£11.28	Add to
071	931-0823A	THROTTLE CONTROL BOX ASSY	£25.49	Add to
072	725-1341B	IGNITION KEY WITHOUT LOGO	£15.11	Add to
073	725-1346	NUT IGN.SWITCH	£5.96	Add to
074	725-1347	CAP IGN.SWITCH	£6.88	Add to
075	725-1396A	IGNITION SWITCH (6 PIN)	£23.81	Add to
076	731-1433	HOOD (YELLOW)	£533.38	Add to
077	710-0779A	SELF TAP SCREW	£3.58	Add to
078	725-0634	SW:ROCKER	£19.29	Add to
079	746-3021	CHOKE CONTROL	£37.35	Add to
080	710-0642	SCREW-HEX HD TAP 4-20 x 7.5	£3.68	Add to
081	710-0599	HEX TT SCREW 1/4-20	£4.95	Add to
082	726-0233	NUT:PUSH:.25 ID X .50 OD	£3.58	Add to
083	736-0176	WASHER:FLAT:.265 x .938 x .120	£5.70	Add to
084	725-0925	AMMETER 620	£30.37	Add to
085	712-0185	ZIP TWIST FASTENER (FOR Ò 1/4	£4.62	Add to
086	731-0960A	DASH PANEL 731-0961	£94.95	Add to
087	710-0896	SCREW WITH WASHER ST	£4.97	Add to
088	783-0121	HOOD REINFORCEMENT	£19.64	Add to
089	783-0123B	HOOD HINGE 783-0123	£10.27	Add to
090	17762	HOOD REINFORCEMENT SPACER	£380.98	Add to
092	17223	LIGHT BRACKET	£8.96	Add to
093	712-0158	NUT, HEX CENTER LOCK, 5/16-18	£9.35	Add to
094	712-0107	NO LONGER AVAILABLE	N/A	POA
095	712-3007	HEX JAM NUT	£3.07	Add to
096	710-3038	BOLT	£9.82	Add to
097	710-1388	SCREW	£3.23	Add to
098	731-1434	SIDE COVER--R.H. (YELLOW)	£335.29	Add to
099	731-1442A	GRILLE (YELLOW)	£201.92	Add to
100	731-0949	NO LONGER AVAILABLE	N/A	POA
100A	731-0948	LENS--R.H.	£29.89	Add to
101	725-1650	SOCKET LAMP TWIST LOCK (OBSOLETE)	N/A
102	725-0963	BULB	£7.18	Add to
103	731-0705	HSG:HDLT	£27.93	Add to
104	17300E637	SUB-ASS`Y, REAR ANGLE	£33.54	Add to
105	17633A	SUPPORT BRACKET	£21.34	Add to
106	17782	CHOKE CABLE RETAINER CLIP	£13.39	Add to
107	756-0522	ENGINE PULLEY (548)	£142.30	Add to
108	17469	7-SPEED SELECTOR PLATE	£22.12	Add to
32A	731-0912	FOOT PAD--R.H.	£31.52	Add to
70A	746-0634	THROTTLE CABLE L= 35"	£17.09	Add to
76A	731-1534	HOOD (RED)	N/A	POA
79A	746-0614A	CHOKE CONTROL	£21.70	Add to
98A	731-1435	SIDE COVER-L.H. (YELLOW-NOT SHOWN)	£211.24	Add to
98B	731-1536	SIDE COVER-R.H. (RED)	£175.94	Add to
98C	731-1535	SIDE COVER-L.H. (RED-NOT SHOWN)	£175.94	Add to
99A	731-1537	GRILL MTD RED	N/A	POA
