K574B MOT.SHAFT-FINAL PINIO

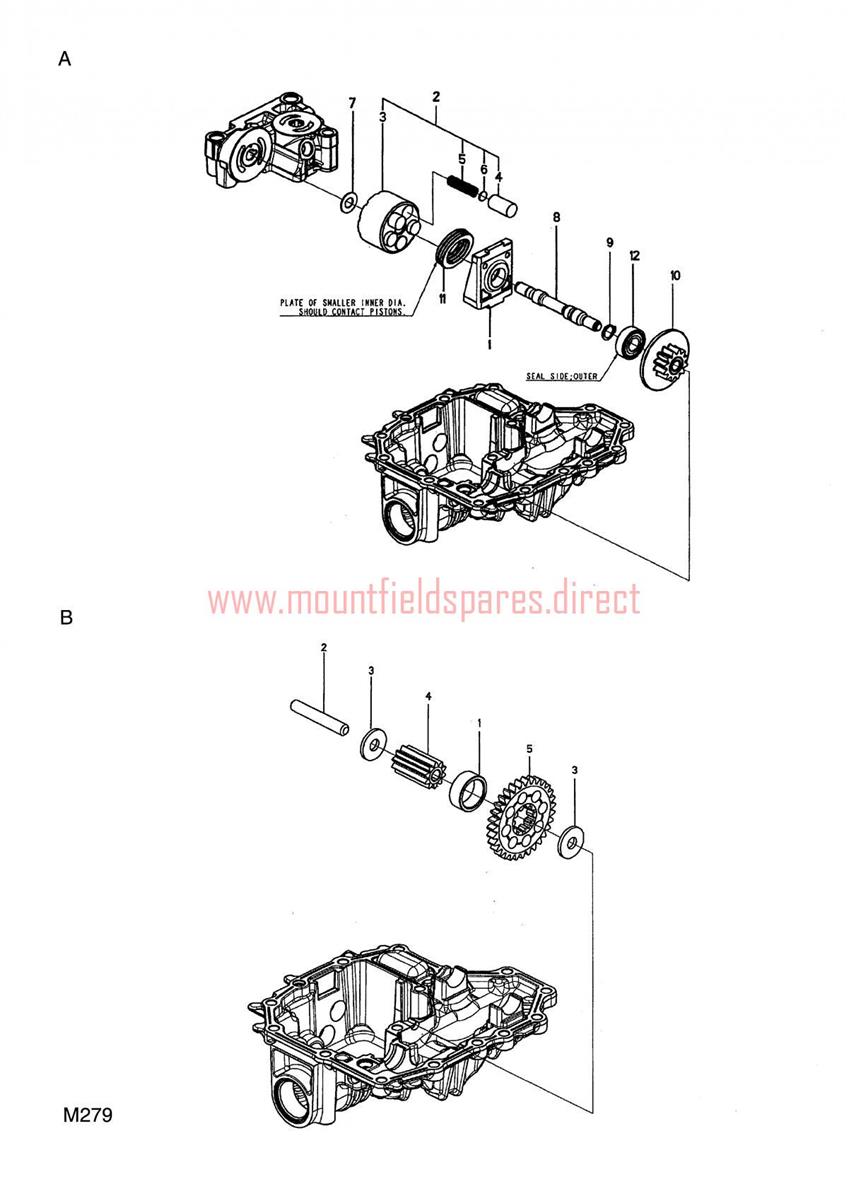

K574B MOT.SHAFT-FINAL PINIO assembly details for Mountfield 2100 and 4100 Series 2006 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
A01	1139-1458-01	HOUSING	£19.22	Add to
A02	1139-1454-01	Cylinder block assy (OBSOLETE)	N/A
A07	1139-1160-01	WASHER	£1.58	Add to
A08	1139-1353-01	MOTOR SHAFT	£33.69	Add to
A09	1139-1021-01	CIRCLIP	£2.06	Add to
A10	1139-1272-01	MOTOR GEAR	£19.62	Add to
A11	1139-1438-01	BEARING	£115.86	Add to
Al2	1139-1453-01	BEARING	£18.75	Add to
B01	1139-1255-01	COLLAR	£5.46	Add to
B02	1139-1256-01	REDUCTION SHAFT	£14.69	Add to
B03	1139-1398-01	WASHER	£5.21	Add to
B04	1139-1361-01	FINAL PINION GEAR	£25.15	Add to
B05	1139-1267-01	REDUCTION GEAR	£23.64	Add to
