4360-197

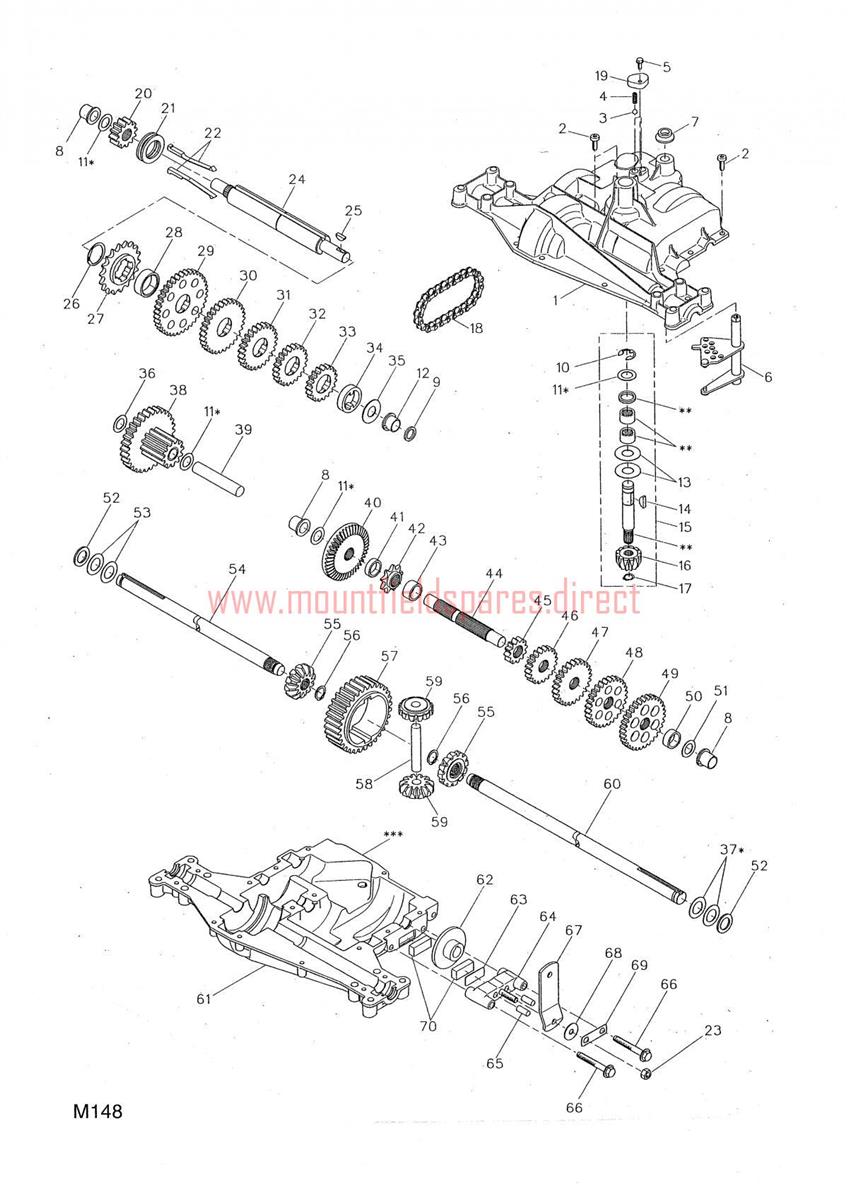

4360-197 assembly details for Mountfield 2100 and 4100 Series 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0001134-4847-01TRANSAXLE PEERLESS MST205£627.12 Add to
001F000-7033-00Housing-upper (OBSOLETE)N/A
002F000-1919-00SCREW,TAP£5.45 Add to
003F000-5947-00DETENT BALL (OBSOLETE)N/A
004F000-5948-00SPRING DETENT (OBSOLETE)N/A
005F084-0052-00SCREW£5.92 Add to
006F000-6517-00Assy, Kit, Shifter (OBSOLETE)N/A
007F000-7010-00V-RING (OBSOLETE) (OBSOLETE) (OBSOLETE)N/A
008F000-5510-00FLANGE BEARING£20.16 Add to
009F000-5508-00Seal, Oil (OBSOLETE)N/A
010F000-1106-00CIRCLIP (OBSOLETE)N/A
011F000-4689-00ASSY,KIT,SHIM,625 SHAFT (OBSOLETE)N/A
012F000-5511-00Bearing, Flange (OBSOLETE)N/A
013F000-3876-00WASHER£9.14 Add to
014F000-1746-00WOODRUFF KEY (OBSOLETE)N/A
015F000-6205-00Input shaft assy (OBSOLETE)N/A
016F000-6595-01INPUT SHAFT SERVICE KIT£165.76 Add to
017F000-3624-00CIRCLIP£6.39 Add to
018F000-3625-00CHAIN,24 PITCHES£101.13 Add to
019F000-5950-00Cover, Detent (OBSOLETE)N/A
020F000-5627-00GEAR, SPUR 12T£18.42 Add to
021F000-5303-00SHIFTER BOOT£88.08 Add to
022F000-4758-00Assy, Kit, Clutch Keys (OBSOLETE)N/A
023F000-3847-00NUT, LOCK (OBSOLETE)N/A
024F000-5737-00Shaft, Intermediate (OBSOLETE)N/A
025F000-1375-00WOODRUFF KEY (OBSOLETE)N/A
026F000-3627-00RING,RETAINING£7.73 Add to
027F000-3830-00SPROCKET,18T£68.94 Add to
028F000-3841-00Spacer, 1.131 X 1.45 X.494 (OBSOLETE)N/A
029F000-5365-00SPUR GEAR 37T (OBSOLETE)N/A
030F000-3867-00GEAR,SPUR,30T£159.45 Add to
031F000-3783-00GEAR,SPUR,25T£109.10 Add to
032F000-3869-00GEAR SPUR 22T (OBSOLETE)N/A
033F000-5202-00GEAR,SPUR, 19T£88.77 Add to
034F000-5027-00SPACER£20.31 Add to
035F000-3628-00Washer, Plain, .640 X1.37 X .061 (OBSOLETE)N/A
036F000-1425-00WASHER (OBSOLETE)N/A
037F000-4691-00KIT SHIM (OBSOLETE)N/A
038F000-6358-00Assy, Gear, Comb., 12T& 30T (OBSOLETE)N/A
039F000-3967-00Shaft, Idler (OBSOLETE)N/A
040F000-7003-00GEAR, BEVEL, 36T (OBSOLETE)N/A
041F000-3630-00SPACER£6.22 Add to
042F000-3645-00SPROCKET,9T (OBSOLETE)N/A
043F000-5016-00SPACER£7.82 Add to
044F000-5015-00Shaft, Drive (OBSOLETE)N/A
045F000-5364-00GEAR, SPUR 12T£15.91 Add to
046F000-3866-00GEAR,SPUR,20T£61.73 Add to
047F000-3719-00GEAR SPUR 25T£90.57 Add to
048F000-3868-00GEAR SPUR (OBSOLETE)N/A
049F000-3683-00GEAR SPUR 31T£130.18 Add to
050F000-3714-00SPACER£12.21 Add to
051F000-1145-00WASHER, PLAIN£5.21 Add to
052F000-5130-00SEAL£17.26 Add to
053F000-3184-00WASHER,PLAIN£9.62 Add to
054F000-7031-10Wheel axle-LH (OBSOLETE)N/A
055F000-5622-00GEAR, MITER 12T SPLINED (OBSOLETE)N/A
056F000-5270-00RETAINING RING£2.32 Add to
057F000-3839-00Gear, Spur, 32T (OBSOLETE)N/A
058F000-3919-00SHAFT,CROSS£38.33 Add to
059F000-5623-00GEAR MITER 12T IDLER (OBSOLETE)N/A
060F000-7031-20Wheel axle-RH (OBSOLETE)N/A
061F000-5304-MCHousing-lower (OBSOLETE)N/A
062F000-5960-00BRAKE DISC (OBSOLETE) (OBSOLETE)N/A
063F000-3758-00SPACER (OBSOLETE) (OBSOLETE)N/A
064F000-5554-00BRAKE JAW (OBSOLETE)N/A
065F000-3843-00DOWEL PIN (OBSOLETE)N/A
066F000-5562-00SCREW£6.69 Add to
067F000-7032-00ACTUATING LEVER (OBSOLETE)N/A
068F000-3760-00WASHER,PLAIN£4.52 Add to
069F000-5555-00ANTI-ROTATION BRACKET (OBSOLETE)N/A
070F000-7109-00FRICTION PAD (OBSOLETE) (OBSOLETE)N/A
098F000-4300-00GREASE£88.63 Add to
