ELECTRICAL PARTS

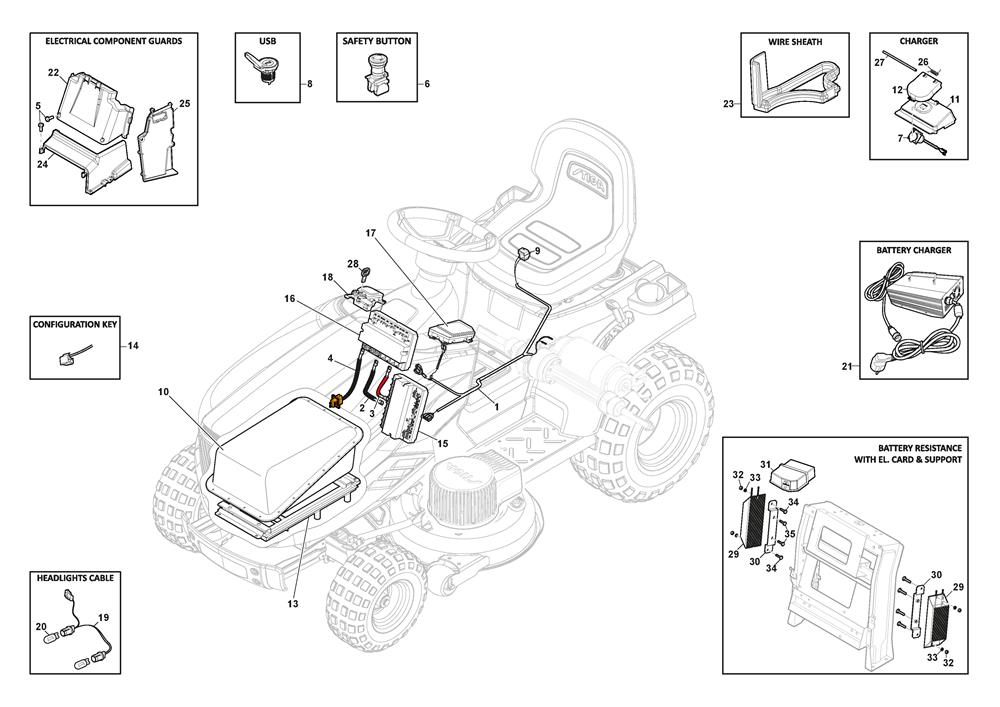

ELECTRICAL PARTS assembly details for Mountfield FREEDOM 38E-SD (2T0660483/M22) 2022 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002125065045/0NEGATIVE POWER TRACTION CABLE£20.94 Add to
003125065046/0POSITIVE POWER TRACTION CABLE£20.94 Add to
004125065048/0BATTERY POWER SOFT CABLE (BAT-VMS)£196.70 Add to
005112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
006187040332/0SAFETY BUTTON (RED)£117.26 Add to
007125065047/1CHARGER CONNECTION CABLE£85.82 Add to
008118450201/2USB CHARGER INLET HONDA-MP/SD-GYRO-R72£57.55 Add to
009119410633/0MICRO SWITCH N.O.£7.50 Add to
010118811699/0BATTERY PACK 30Ah with USER MANUAL£1,382.02 Add to
011325785589/0CHARGER PLUG SUPPORT (BLACK)£11.10 Add to
012325207295/0CHARGER PLUG COVER (BLACK)£3.65 Add to
013382785315/0E-C BATTERY SUPPORT£59.06 Add to
014118361033/0PROGRAM CONFIGURATION KEY-SD98 BATT£20.74 Add to
015118361051/5VMS ST MP/SD (eRide 300/500)£775.20 Add to
016118361072/0TRACTION CONTROLLER£534.49 Add to
017382722460/1PC BOARD ASSEMBLY V1 EL MP/SD EL£190.74 Add to
018382410519/0IGNITION KEY PANEL ASSEMBLY£100.00 Add to
019182040186/1LAMP HOLDER CABLE ASSEMBLY£11.18 Add to
020118459104/0LED LIGHT£43.22 Add to
021182180179/3BATTERY CHARGER 5A UK MP/SD BAT£335.40 Add to
022325600139/1UPPER DRIVER-VMS GUARD [BLACK]£10.00 Add to
023325600143/0WIRE SHEATH£4.36 Add to
024325600141/0RIGHT GUARD (BLACK)£8.78 Add to
025325600142/0LEFT GUARD (BLACK)£6.89 Add to
026125430296/1SPRING£1.50 Add to
027125510183/0FULCRUM COVER PIN£1.55 Add to
028118210032/0IGNITION KEY£8.00 Add to
029118361058/0RESISTANCE [BATTERY]£160.00 Add to
030382785319/0E-C RESISTOR SUPPORT£23.00 Add to
031125722492/0ELECTRONICS CARD RESISTOR£31.00 Add to
032112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
033112540230/0INNER WASHER M5 UNI 8842-J C60 ZNB£2.06 Add to
034112789021/0HEX-HEAD SCREW M5 X 20 UNI 5739£1.81 Add to
035112790781/0HEX-HEAD SCREW M6 x 12£1.76 Add to
