STEERING

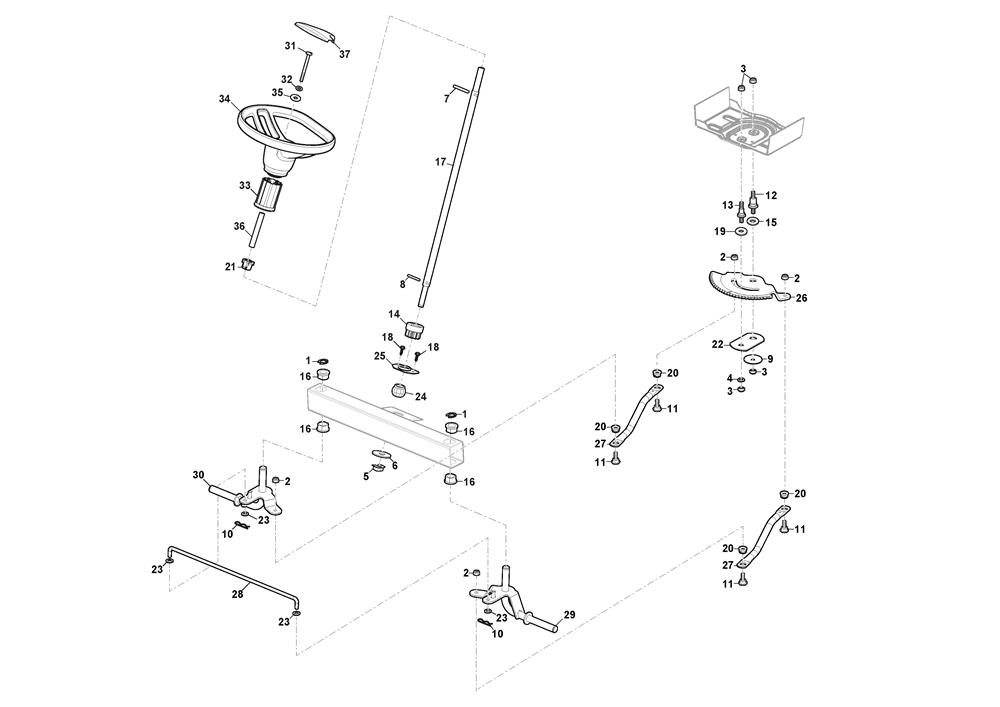

STEERING assembly details for Mountfield FREEDOM 28E (2T0250483/M22) 2022 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112000970/0CIRCLIP D=12£2.02 Add to
002112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
003112155010/0SELF-LOCKING NUT M8 A-LOK ACC.6S£2.47 Add to
004112369500/0SPRING WASHER D=8£1.79 Add to
005112436030/0PIN PLATE£1.91 Add to
006112521370/0WASHER M12 13 24 x 2.5£2.06 Add to
007112620300/0SPIROL PIN 6 x 50£2.02 Add to
008112622650/0CYLINDRICAL PIN D=6X35£2.95 Add to
009122160400/0SPRING WASHER 50 x 2 x 10.2£2.18 Add to
010124487997/0SPRING CLIP D=1.8£2.06 Add to
011125510103/0BOLT£2.06 Add to
012125510165/0PIN BOLT£5.06 Add to
013125510173/0PIN BOLT£2.06 Add to
014125570003/0STEERING PINION£8.84 Add to
015125670023/0WASHER£1.91 Add to
016127047019/0SPINDLE BUSH NR 66£4.23 Add to
017127520055/0STEERING COLUMN ER1-2£22.46 Add to
018127943054/0FLANGED HEX-HEAD SCREW D=6.3X13£3.09 Add to
019322672151/0ANTI-FRICTION WASHER 12.2 x 30 x 0.8£1.91 Add to
020325038007/0BUSH£2.06 Add to
021325038008/0STEERING COLUMN BUSH£2.06 Add to
022325547233/0STEERING QUADRANT PLATE£3.83 Add to
023325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
024325743000/0JOINT£3.00 Add to
025325785213/1STEERING JOINT SUPPORT£2.32 Add to
026327734069/0WZ ER1-2 STEERING SECTOR£27.80 Add to
027327840059/0BP STUB AXLE TIE ROD£7.43 Add to
028327840061/0TIE ROD£13.86 Add to
029384230417/0BZ ER1-2 RH SPINDLE ASS.Y£52.67 Add to
030384230419/0BZ ER1-2 LH SPINDLE ASS.Y£52.67 Add to
031112692100/0HEX-HEAD SCREW M8 x 105£2.74 Add to
032112540260/0INNER TOOTHED WASHER M8£2.06 Add to
033325785552/0STEERING WHEELS SUPPORT STD HIGH£20.72 Add to
034325961219/0STEERING WHEEL [BLACK]£34.72 Add to
035112523070/0WASHER M8 8.5 x 32 x 2.5£2.06 Add to
036125160105/0STEERING COLUMN SPACER SDR£10.50 Add to
037325580503/0STEERING WHEEL CAP ROUND£6.42 Add to
