SEAT SUPPORT

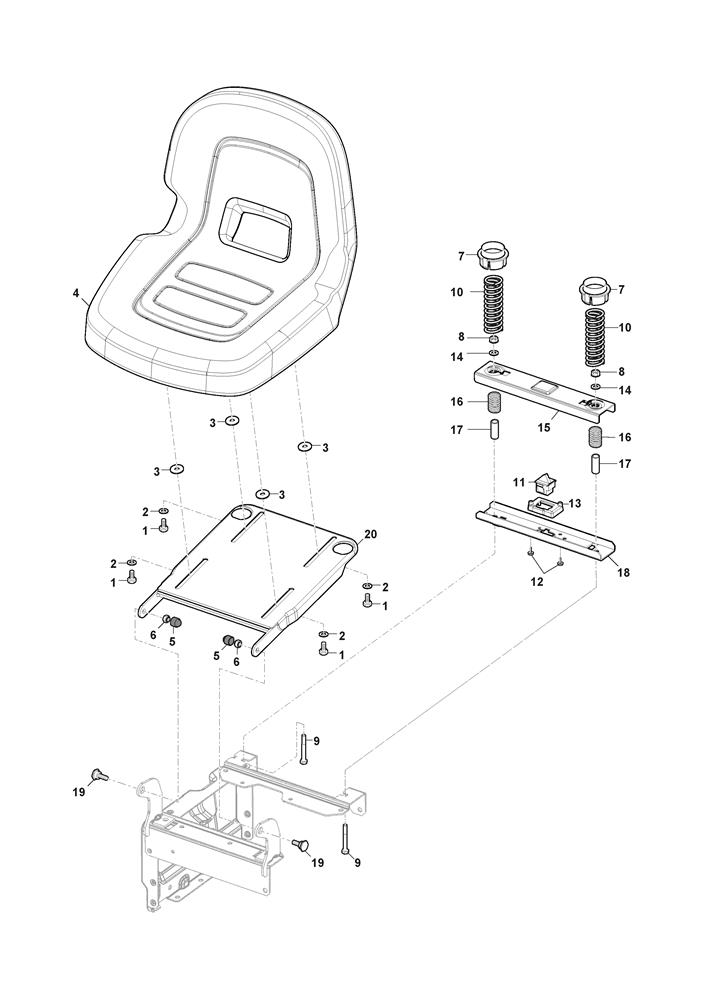

SEAT SUPPORT assembly details for Mountfield FREEDOM 28E (2T0250483/M22) 2022 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	112792611/0	SCREW TE M8x16 UNI 5739 ACC.8.8	£2.06	Add to
002	112540260/0	INNER TOOTHED WASHER M8	£2.06	Add to
003	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
004	125722488/0	CLASSIC 2022 SEAT	£181.97	Add to
005	118203854/0	NUT CAP M8 [BLACK]	£2.06	Add to
006	112155010/0	SELF-LOCKING NUT M8 A-LOK ACC.6S	£2.47	Add to
007	325600148/0	PROTECTIVE CAP	£2.67	Add to
008	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
009	112691400/0	HEX-HEAD SCREW M8 X 50	£1.76	Add to
010	125430264/1	SPRING	£10.61	Add to
011	119410622/1	MICRO SWITCH N.O.	£7.10	Add to
012	112728697/0	SELF-TAPPING SCREW TORX K50 x 16	£2.06	Add to
013	325785379/1	SEAT MICRO SUPPORT	£2.06	Add to
014	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
015	325820111/1	SEAT SWITCH SUPPORT BAR	£10.36	Add to
016	125430263/0	SEAT SWITCH SPRING	£1.79	Add to
017	125160048/0	SPACER	£2.32	Add to
018	325820109/1	SEAT SUPPORT	£9.39	Add to
019	122524970/3	SEAT FULCRUM PIN FROM S/N 88153	£2.06	Add to
020	382547061/1	SEAT PLATE ASSEMBLY	£38.44	Add to
