FRAME

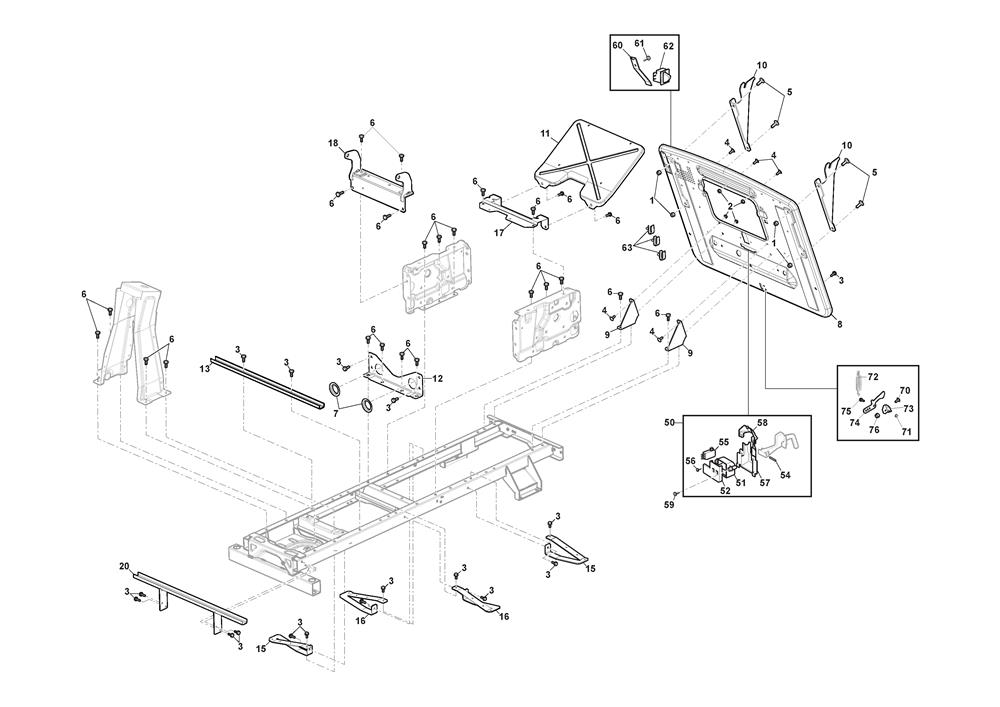

FRAME assembly details for Mountfield FREEDOM 28E (2T0250483/M22) 2022 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
002112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
003112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
004112815202/0SCREW TTDQ M6x16 6.8 White Zinc£2.52 Add to
005112818700/0SCREW M8 x 25£2.81 Add to
006125943009/0HEX-HEAD SCREW M8 x 1.25£2.06 Add to
007325260012/0RUBBER GROMMET£6.95 Add to
008327543065/1REAR PLATE£198.26 Add to
009327772257/0E-C BRACKET REAR PLATE LOWER SUPPORT£6.35 Add to
010327772259/0E-C GRASSCATCHER FULCRUM SUPPORT£17.12 Add to
011327772273/0CONTROLLER SUPPORT R72£36.41 Add to
012327772281/1REINFORCEMENT PLATE£11.18 Add to
013327787094/1CFFRONT FOOT REST HOLDER£32.08 Add to
015327787137/0RH BATTERIES BOX SUPPORT R72£10.61 Add to
016327787138/0LH BATTERIES BOX SUPPORT R72£10.61 Add to
017327820105/0REAR LINK SUPPORT BAR ER1-2 E-C£24.22 Add to
018382820151/3SEAT SUPPORT ASSEMBLY£22.21 Add to
020384783077/0FOOT REST SUPPORT£54.84 Add to
050384394754/0FULL GRASSCATCHER MICROSWITCH R72£33.58 Add to
051125600041/0MICRO PROTECTION COVER£2.32 Add to
052125600042/0MICRO PROTECTION COVER£3.41 Add to
054112400030/0PIN D=3 L=30£1.91 Add to
055119410605/1MICRO SWITCH£36.77 Add to
056112731580/0SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ£2.06 Add to
057125600047/0MICRO SWITCH PROTECTION COVER£2.06 Add to
058125600048/0MICRO SWITCH COVER£2.06 Add to
059112728450/0SELF-TAP SCREW 4.8 x 19£2.81 Add to
060127430600/0MICRO LIFT SEAT SPRING£2.74 Add to
061112731580/0SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ£2.06 Add to
062119410622/1MICRO SWITCH N.O.£7.10 Add to
063133320506/0CABLE CLIP£1.79 Add to
070112789021/0HEX-HEAD SCREW M5 X 20 UNI 5739£1.81 Add to
071112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
072125430282/1HOOKING SPRING£1.91 Add to
073325755061/0SUPPORT BRACKET£2.86 Add to
074325774533/0LOWER HOOKING CLAMP£5.05 Add to
075125510080/2CLAMP PIN£1.79 Add to
076112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
