DRIVE PEDAL

DRIVE PEDAL assembly details for Mountfield FREEDOM 28E (2T0250483/M22) 2022 model

Parts list

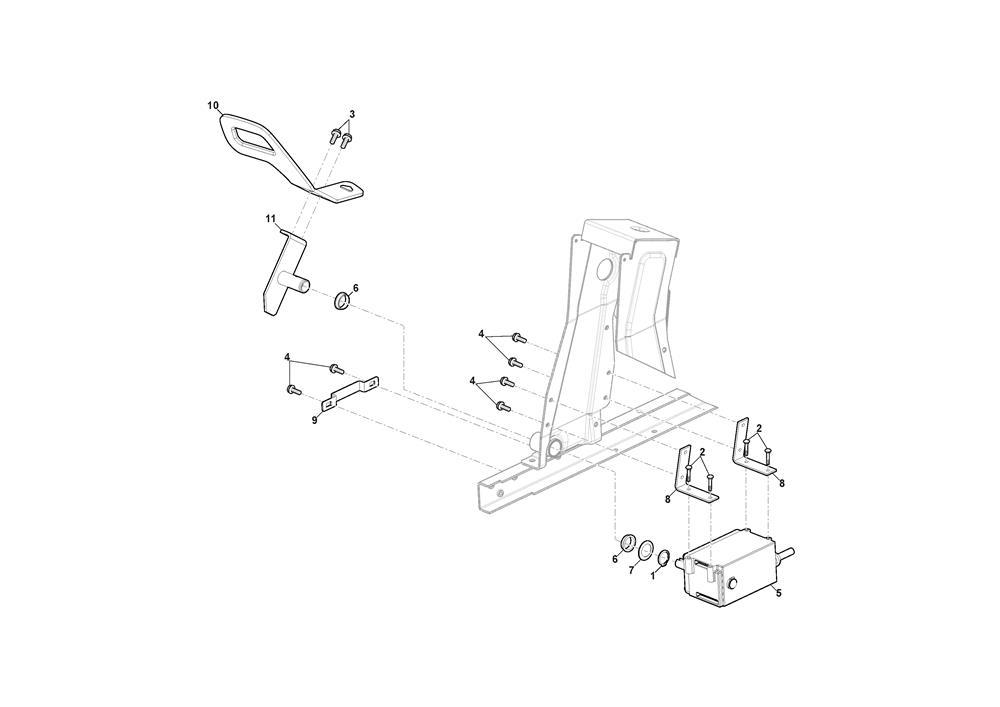

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112609255/0CIRCLIP D=19£2.06 Add to
0029893-0616-16SCREW M6 x 16£2.47 Add to
0039893-0616-16SCREW M6 x 16£2.47 Add to
004112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
005118361049/0PEDAL SENSOR£117.00 Add to
006127047022/0BUSH£9.12 Add to
007322672153/0ANTI-FRICTION WASHER 20.2 x 30 x 0.8£2.06 Add to
008327772277/0PEDAL SENSOR FIX BRACKET R72£7.30 Add to
009327772279/0COMMAND PEDAL LEVER STOPPER PLATE R72£6.22 Add to
010384503015/0FEED PEDAL ASSEMBLY£24.64 Add to
011384317115/0E-C FORWARD PEDAL LEVER£25.64 Add to
