BODYWORK

BODYWORK assembly details for Mountfield FREEDOM 28E (2T0250483/M22) 2022 model

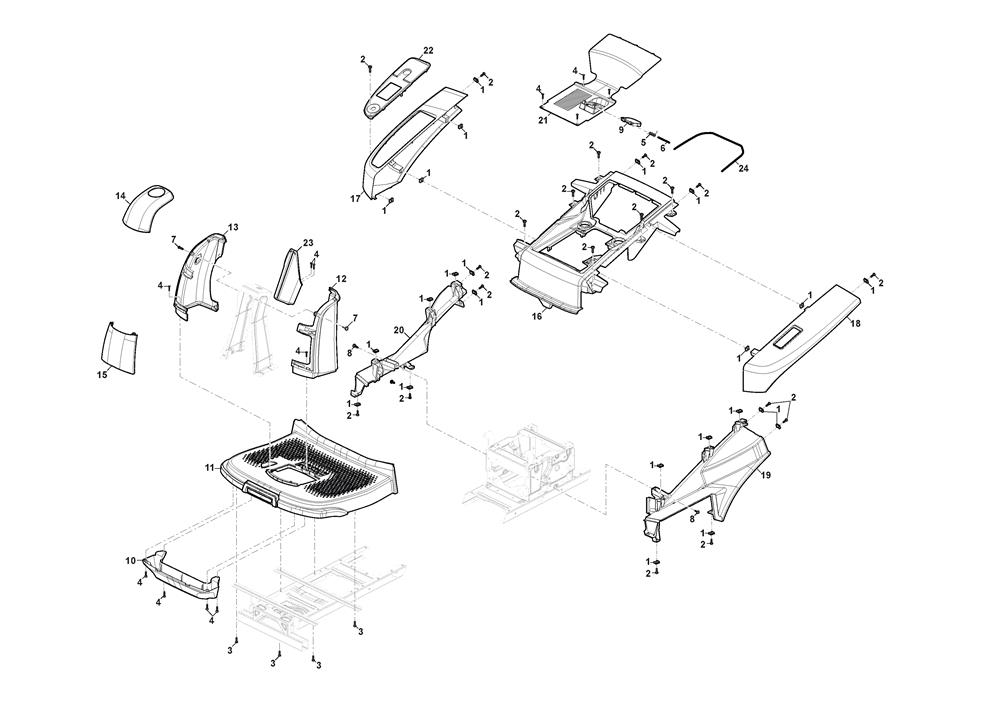

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	112437507/0	RAPID FIXING PLATE M6	£2.06	Add to
002	112727801/0	SCREW TCB TORX M6 x 20	£2.06	Add to
003	112728300/0	SELF-TAPPING SCREW K50 x 22	£2.06	Add to
004	112728706/0	SELF-TAPPING SCREW K40 x 16	£2.06	Add to
005	125430296/1	SPRING	£1.50	Add to
006	125510183/0	FULCRUM COVER PIN	£1.55	Add to
007	125943004/0	FLANGED SCREW TE 4.8	£1.91	Add to
008	125943010/0	FLANGED SCREW	£2.06	Add to
009	325207295/0	CHARGER PLUG COVER (BLACK)	£3.65	Add to
010	327110592/0	FRONT SLIP PLATE [GREY]	£16.38	Add to
011	327110593/0	FOOTPLATE	£60.79	Add to
012	327110594/0	L/H STEERING COLUMN COVER [GREY]	£11.76	Add to
013	327110595/0	R/H STEERING COLUMN COVER [GREY]	£11.76	Add to
014	327110610/0	UPPER FRONT PLATE [RED]	£12.11	Add to
015	327110615/0	LOWER FRONT PLATE [GREY]	£12.11	Add to
016	327110598/0	MAIN BODY	£45.90	Add to
017	327110605/0	R/H CENTRAL WHEEL COVER [RED]	£32.02	Add to
018	327110606/0	L/H CENTRAL WHEEL COVER [RED]	£36.22	Add to
019	327110607/0	MAIN BODY LEFT SIDE	£23.56	Add to
020	327110608/0	MAIN BODY RIGHT SIDE	£23.56	Add to
021	327110609/0	CENTRAL COVER MAIN BODY	£17.65	Add to
022	327120100/0	COMMAND PANEL HOLDER E1-2 NCS8000N	£7.97	Add to
023	327206853/0	BOTTLE/CELL PHONE HOLDER	£10.88	Add to
024	127285002/0	ADHESIVE FOAM SEALING STRIP R72	£5.59	Add to
