OIL FILTER

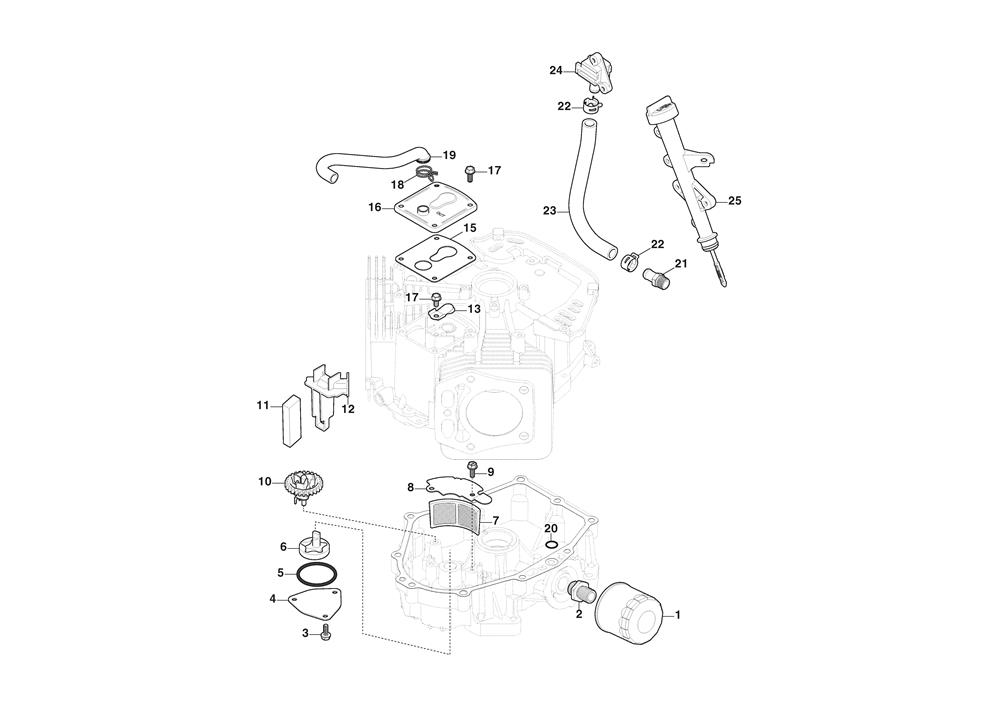

OIL FILTER assembly details for Mountfield 1736H TWIN (2T0785483/M22) 2022 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118551566/0OIL FILTER£19.22 Add to
002118551567/0HOLDER OIL FILTER£8.73 Add to
004118551563/0OIL PUMP COVER£9.28 Add to
005118551609/0O-RING, OIL PUMP£2.32 Add to
006118551562/0ROTOR, OIL PUMP OUTER£14.32 Add to
007118551564/0OIL STRAINER£5.46 Add to
008118551565/0COVER, OIL STRAINER£7.92 Add to
010118551587/0GEAR COMP, OIL PUMP£22.49 Add to
011118551589/0FILTER BLOCK£3.15 Add to
012118551617/0BRACKET£4.52 Add to
013118551557/0VALVE, OIL OUTLET£4.78 Add to
015118551544/0GASKET, BREATHER CHAMBER£6.42 Add to
016118551543/0COVER, BREATHER CHAMBER£5.32 Add to
018118551610/0PIPE CLIP£2.06 Add to
019118551603/0BREATHER TUBE£19.36 Add to
020118551286/0O RING 11.7 x 2.5£1.79 Add to
021118551545/0ADAPTER, OIL DRAIN EXTENSION£6.55 Add to
022118551611/0OIL TUBE CLIP£2.87 Add to
023118551607/0OIL DRAIN TUBE£31.63 Add to
024118551618/0CAP, OIL DRAIN TUBE£10.36 Add to
025118551539/0OIL DIPSTICK£24.95 Add to
