TRANSMISSION - 630030

TRANSMISSION - 630030 assembly details for Mountfield 1330M (2T2000483/M22) 2022 model

Parts list

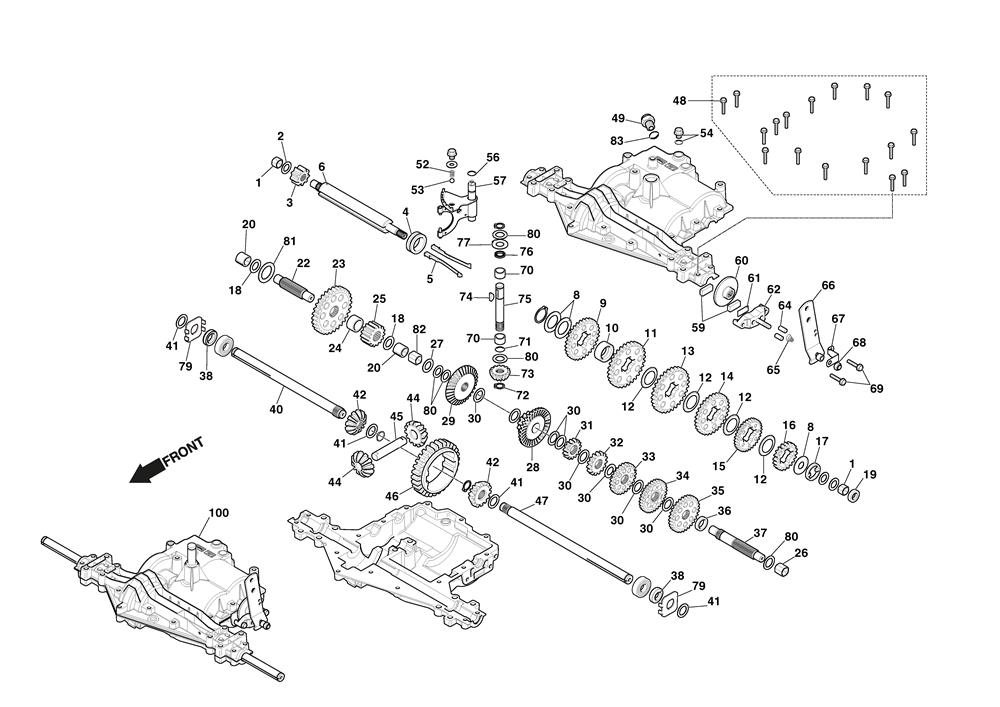

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118870276/0SHAFT SLEEVE£10.40 Add to
002118870286/0PLAIN WASHERS 14£6.65 Add to
003118870306/0GEAR£9.54 Add to
004118870270/0BUSH£19.01 Add to
005118870268/0KEY£31.43 Add to
006118870265/0SHAFT£76.74 Add to
008118870289/0PLAIN WASHERS 28£8.03 Add to
009118870305/0GEAR£15.19 Add to
010118870266/0BUSH£17.82 Add to
011118870302/0GEAR£15.19 Add to
012118870287/0GASKET£4.42 Add to
013118870303/0GEAR£12.64 Add to
014118870304/0GEAR£11.45 Add to
015118870317/0GEAR£11.18 Add to
016118870319/0GEAR£7.51 Add to
017118870312/0BUSH£4.22 Add to
018118870325/017 GASKET£2.84 Add to
019118870261/0OIL SEAL£8.50 Add to
020118870277/0SHAFT SLEEVE£10.40 Add to
022118870275/0SHAFT£26.42 Add to
023118870307/0GEAR£22.22 Add to
024118870279/0BUSH£8.69 Add to
025118870308/0GEAR£12.05 Add to
026118870278/0SHAFT SLEEVE£10.40 Add to
027118870285/0PLAIN WASHERS 16£6.65 Add to
028118870297/0GEAR£25.50 Add to
029118870298/0GEAR£17.36 Add to
030118870283/0PLAIN WASHERS 19£6.65 Add to
031118870299/0GEAR£3.08 Add to
032118870300/0GEAR£6.26 Add to
033118870301/0GEAR£9.80 Add to
034118870316/0GEAR£9.67 Add to
035118870318/0GEAR£12.36 Add to
036118870269/0BUSH£6.85 Add to
037118870272/0SHAFT£46.52 Add to
038118870260/0OIL SEAL£9.35 Add to
040118870274/0SHAFT£33.65 Add to
041118870295/0PLAIN WASHERS 20£6.65 Add to
042118870311/0GEAR£47.84 Add to
044118870310/0GEAR£47.84 Add to
045118870267/0SHAFT£29.45 Add to
046118870309/0GEAR£53.10 Add to
047118870273/0SHAFT£46.52 Add to
049118870263/0NEUTRAL SWITCH£24.85 Add to
052118870324/0SPRING£2.52 Add to
053118870271/0DETENT BALL£2.52 Add to
054118870258/0SEALANT SET£3.11 Add to
056118870257/0O RING£2.71 Add to
057118870321/0FORK£46.00 Add to
059118870314/0BRAKE PAD£4.62 Add to
060118870315/0BRAKE DISC£10.01 Add to
061118870294/0PAD PLATE£2.38 Add to
062118870313/0BRAKE JAW£8.69 Add to
064118870281/0BRAKE PIN£3.64 Add to
065118870323/0BRAKE SPRING£2.52 Add to
066118870322/0BRAKE ARM£26.48 Add to
067118870293/0CLAMP£5.28 Add to
070118870326/0BEARING£7.84 Add to
071118870259/0O RING£2.96 Add to
073118870296/0GEAR£14.99 Add to
074118870320/0WOODRUFF KEY£4.88 Add to
075118870280/0SHAFT£19.20 Add to
076118870262/0OIL SEAL£4.62 Add to
077118870288/0GASKET£4.02 Add to
079118870256/0ANTI-FRICTION PLATE£20.77 Add to
080118870291/0GASKET£2.71 Add to
081118870290/022 GASKET (THICK)£2.71 Add to
082118870282/016 BUSH (SHORT)£7.57 Add to
083118870264/0O RING£2.38 Add to
085118870292/0GASKET£2.71 Add to
100382840101/0LANGHU TRANSMISSION GR. WITH PULLEY ASSY£731.86 Add to
